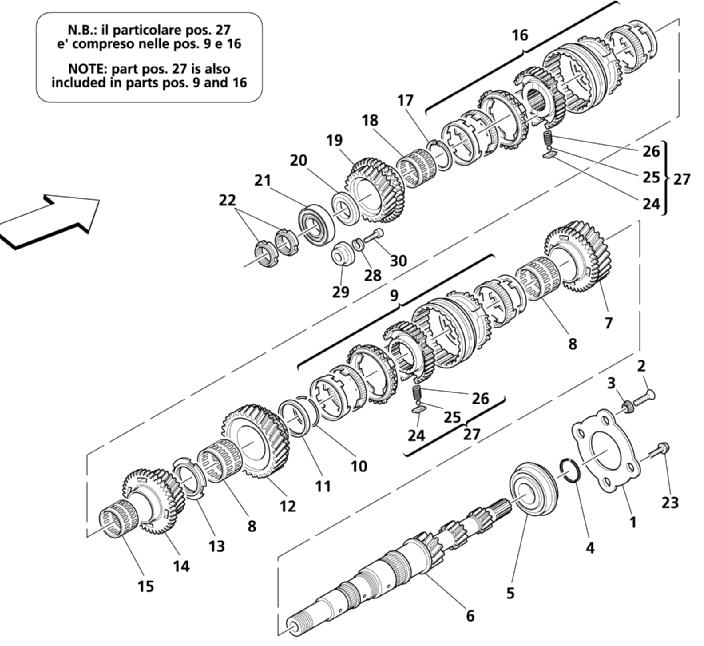

MAIN SHAFT GEARS

Location Part # Quantity* Description Price Add To Cart
1 200983 1 PLATE $52.80
2 14442027 2 SCREW $2.11
3 12606979 2 WASHER $13.58
4 184042 1 FLEXIBLE RING $19.77
5 198618 1 BALL BEARING $167.27
6 220014 1 MAIN SHAFT FOR GEAR LEVER $2,018.84
7 214796 1 PINION FOR 5th GEAR $4,060.00
8 184015 2 ROLLER CAGE $56.82
9 219691 1 5th AND 6th GEAR COMPLETE SYNCHRONIZER $682.08
10 184011 1 FLEXIBLE RING $11.86
11 183970 1 SPACER FOR PINION FOR 6th GEAR $146.14
12 214797 1 PINION FOR 6th GEAR $418.99
13 184010 1 RING NUT $441.50
14 182338 1 PINION FOR 3rd GEAR $656.10
15 184014 1 ROLLER CAGE $25.96
16 185165 1 3rd AND 4th GEAR COPLETE SYNCHRONIZER $1,793.48
17 184042 1 FLEXIBLE RING $19.77
18 184005 1 ROLLER CAGE $29.21
19 182345 1 PINION FOR 4th GEAR $292.32
20 183973 1 WASHER $63.92
21 184021 1 ROLLER BEARING $211.10
22 184012 2 RING NUT $39.56
23 16287124 2 SCREW $1.66
24 - 6 PAD FOR SYNCHRONIZER -Not as spare part suppliyed in the kit. 188320- Unavailable
25 - 6 BALL -Not as spare part suppliyed in the kit. 188320- Unavailable
26 - 6 SPRING FOR BALL -Not as spare part suppliyed in the kit. 188320- Unavailable
27 188320 2 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $14.45
28 10569274 1 WASHER Superseded
29 183985 1 BUSHING $16.38
30 14305721 1 SCREW Superseded

* Quantity shown indicates the number of pieces used in the diagram.
