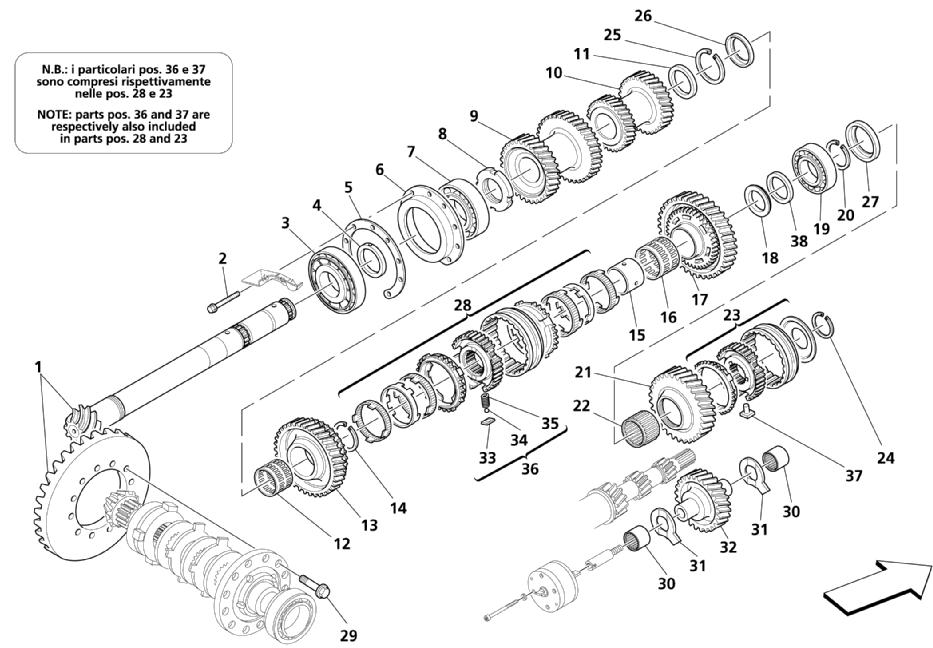

LAY SHAFT GEARS

Location Part # Quantity* Description Price Add To Cart
1 219689 1 COMPLETE BEVEL SET $2,549.68
2 16287731 9 SCREW $2.88
3 185022 1 ROLLER BEARING $422.22
4 219717 1 REGISTER RING -Thickness mm. 8.60- $104.75
5 185043 1 REGISTER RING -Thickness mm. 2.5- -Possible fitting- $25.86
5 185044 1 REGISTER RING -Thickness mm. 2.2- -Possible fitting- $44.13
5 185042 1 REGISTER RING -Thickness mm. 2.8- $14.76
6 219718 1 BEARING SUPPORT $173.77
7 219720 1 ROLLER BEARING $123.59
8 196667 1 RING NUT $85.24
9 214802 1 3rd AND 4th DRIVEN GEAR $659.34
10 214801 1 5th AND 6th DRIVEN GEAR $621.99
11 188497 1 SPACER -Thickness mm. 6.25- $96.40
11 212457 1 SPACER -Thickness mm. 6.00-- -As an alternative- $130.79
12 184014 1 ROLLER CAGE $25.96
13 220016 1 COMPLETE PINION FOR 2nd GEAR $381.64
14 185037 1 FLEXIBLE RING -Thickness mm. 1.60- -Possible fitting- $77.12
14 185036 1 FLEXIBLE RING -Thickness mm. 1.85- -Possible fitting- $51.74
14 183976 1 FLEXIBLE RING -Thickness mm. 2.10- $18.25
15 183971 1 BUSHING $112.64
16 184016 1 ROLLER CAGE $30.84
17 220015 1 COMPLETE PINION FOR 1st GEAR $381.64
18 185040 1 RING -Thickness mm. 4.85- -Possible fitting- $60.88
18 185041 1 RING -Thickness mm. 4.60- -Possible fitting- $54.79
18 183972 1 RING -Thickness mm. 5.10- $118.73
19 184020 1 ROLLER BEARING $194.86
20 184042 1 FLEXIBLE RING $19.77
21 198602 1 COMPLETE PINION FOR REVERSE GEAR $1,299.20
22 184018 1 ROLLER CAGE $38.96
23 193439 1 REVERSE GEAR COMPLETE SYNCHRONIZER Unavailable
24 184041 1 FLEXIBLE RING $6.54
25 185036 1 FLEXIBLE RING -Thickness mm. 1.85- -Possible fitting- $51.74
25 185037 1 FLEXIBLE RING -Thickness mm. 1.60- -Possible fitting- $77.12
25 183976 1 FLEXIBLE RING -Thickness mm. 2.10- $18.25
26 203801 1 RING -Thickness mm. 7.3- -As an alternative- $88.69
26 203800 1 RING -Thickness mm. 7.6- $30.84
27 200979 1 SPACER $71.96
28 185164 1 1st AND 2nd GEAR COMPLETE SYNCHRONIZER Unavailable
29 183909 12 SCREW -Included in the complete differential (Draw 3.21 Pos. 1)- $8.81
30 184017 2 ROLLER CASING $10.60
31 183975 2 RING $38.04
32 198612 1 IDLE GEAR FOR REVERSE $774.65
33 - 3 PAD FOR SYNCHRONIZER -Not as spare part suppliyed in the kit. 188320- Unavailable
34 - 3 BALL -Not as spare part suppliyed in the kit. 188320- Unavailable
35 - 3 SPRING FOR BALL -Not as spare part suppliyed in the kit. 188320- Unavailable
36 188320 1 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $14.45
37 193440 1 PADS/SYNCHRO REVERSE GEAR KIT $5.20
38 182326 1 SPACER $82.13

* Quantity shown indicates the number of pieces used in the diagram.
