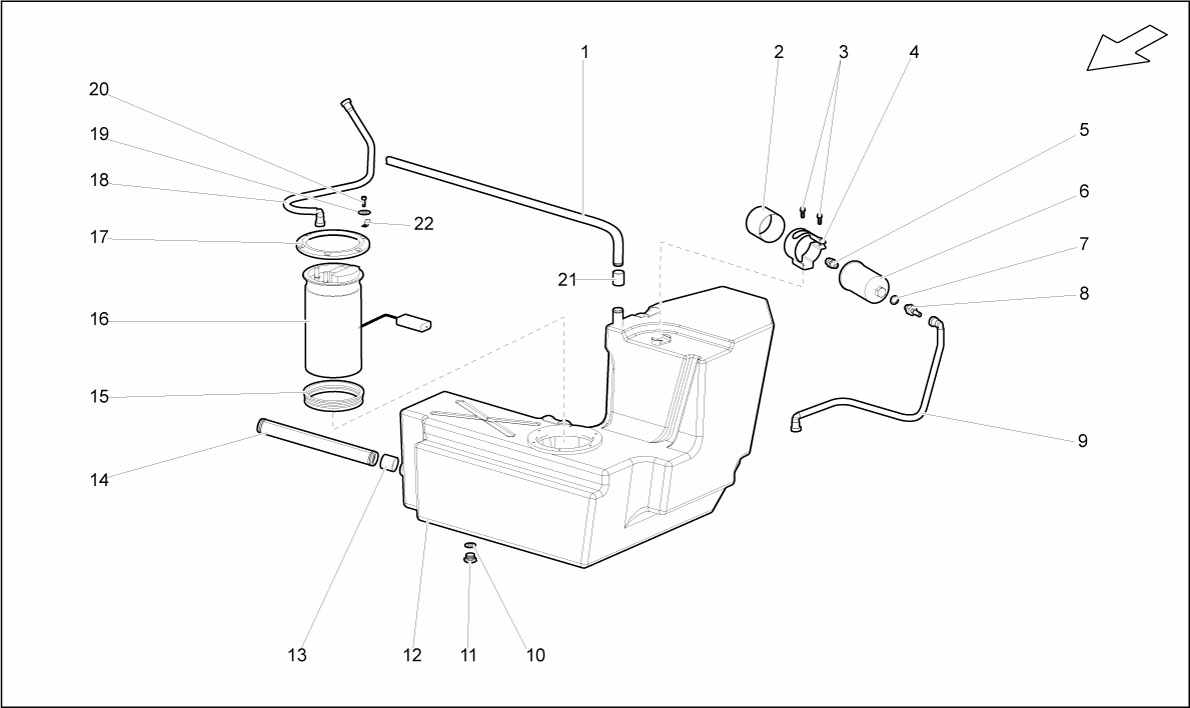

LH TANK

Go to Split View

LH TANK

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400201787A *Qty: 1 PIPE $34.32
Location: 2 Prev | Next Part: 400201558A *Qty: 1 GASKET $3.96
Location: 3 Prev | Next Part: N10207001 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 400201255 *Qty: 1 BRACKET $8.36
Location: 5 Prev | Next Part: 400201149B *Qty: 1 CONNECTOR $68.07
Location: 6 Prev | Next Part: 400201511A *Qty: 1 FUEL FILTER (UP TO MY05 USE 400201558A) $112.26
Location: 7 Prev | Next Part: 400201349 *Qty: 1 WASHER $8.01
Location: 8 Prev | Next Part: 400201149 *Qty: 1 CONNECTOR $41.40
Location: 9 Prev | Next Part: 400201215A *Qty: 1 LH PIPE $74.61
Location: 12 Prev | Next Part: 400201075A *Qty: 1 LH TANK $1,811.30
Location: 13 Prev | Next Part: *Qty: 0 SLEEVE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 14 Prev | Next Part: 400201903 *Qty: 1 PIPE $159.61
Location: 15 Prev | Next Part: 1J0919133 *Qty: 1 GASKET $15.38
Location: 16 Prev | Next Part: 8L0919051H *Qty: 1 PUMP $555.26
Location: 17 Prev | Next Part: 400201099 *Qty: 1 FLANGE $74.10
Location: 18 Prev | Next Part: 400201219A *Qty: 1 LH PIPE $71.84
Location: 19 Prev | Next Part: WHT001187 *Qty: 6 WASHER $0.90
Location: 20 Prev | Next Part: WHT001194 *Qty: 6 SCREW $0.90
Location: 21 Prev | Next Part: 400201539A *Qty: 2 SLEEVE $30.80
Location: 22 Prev | Next Part: 400201211 *Qty: 1 FASTON $0.90

* Quantity shown indicates the number of pieces used in the diagram.
