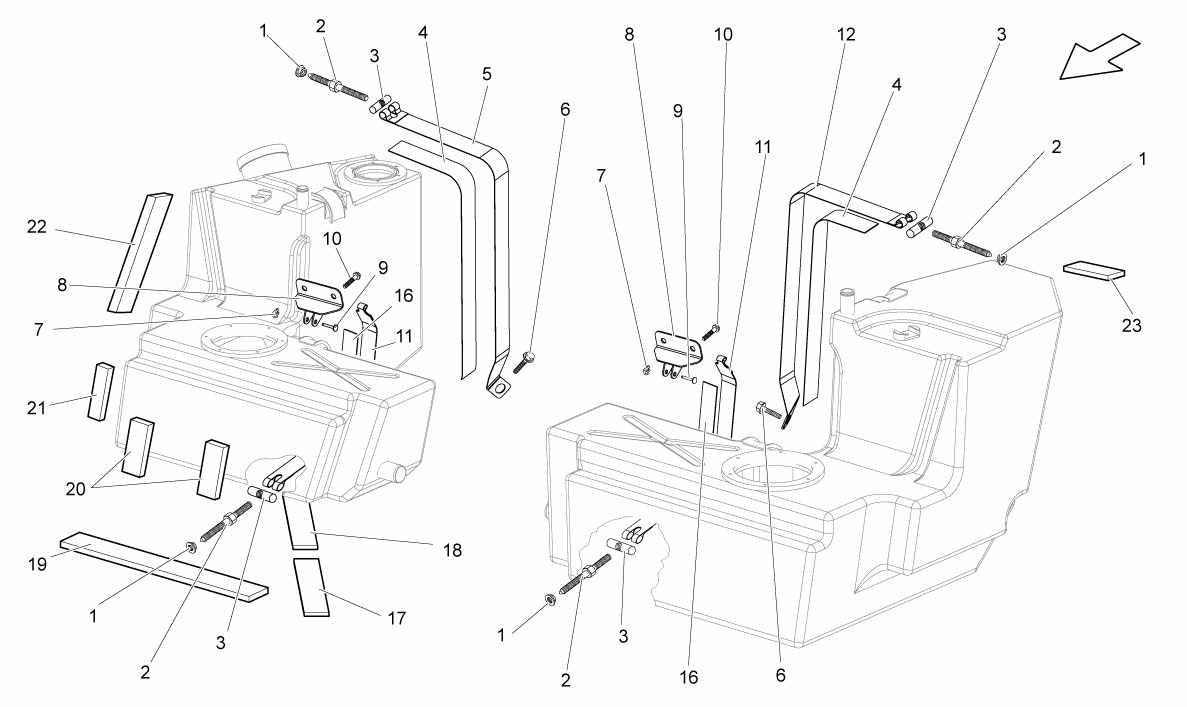

IMPLANTATIONS TANKS

Go to Split View

IMPLANTATIONS TANKS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N0150839 *Qty: 4 NUT M8 $0.90
Location: 2 Prev | Next Part: 400201262 *Qty: 4 TIE ROD $19.61
Location: 3 Prev | Next Part: 400201452 *Qty: 4 JOURNAL $11.76
Location: 4 Prev | Next Part: 400201365C *Qty: 2 GASKET $8.61
Location: 5 Prev | Next Part: 400201656B *Qty: 1 CLAMP $37.45
Location: 6 Prev | Next Part: N90848003 *Qty: 2 SCREW $5.79
Location: 7 Prev | Next Part: N0126453 *Qty: 2 CLIP $0.90
Location: 8 Prev | Next Part: 400201657B *Qty: 2 BRACKET $28.69
Location: 9 Prev | Next Part: N91057801 *Qty: 2 JOURNAL $14.78
Location: 10 Prev | Next Part: N90847903 *Qty: 2 SCREW M6X15.0 $0.90
Location: 11 Prev | Next Part: 400201654A *Qty: 2 CLAMP $36.41
Location: 12 Prev | Next Part: 400201655A *Qty: 1 CLAMP $37.87
Location: 16 Prev | Next Part: 400201365B *Qty: 2 GASKET $14.32
Location: 17 Prev | Next Part: 400201365A *Qty: 2 GASKET $9.43
Location: 18 Prev | Next Part: 400201365D *Qty: 2 GASKET $12.45
Location: 19 Prev | Next Part: 400201365E *Qty: 2 GASKET $17.69
Location: 20 Prev | Next Part: 400103754 *Qty: 4 GASKET $108.02
Location: 21 Prev | Next Part: 400201365F *Qty: 2 GASKET $6.80
Location: 22 Prev | Next Part: 400201365 *Qty: 2 GASKET $28.66
Location: 23 Prev | Next Part: 400201446 *Qty: 1 GASKET $4.53

* Quantity shown indicates the number of pieces used in the diagram.
