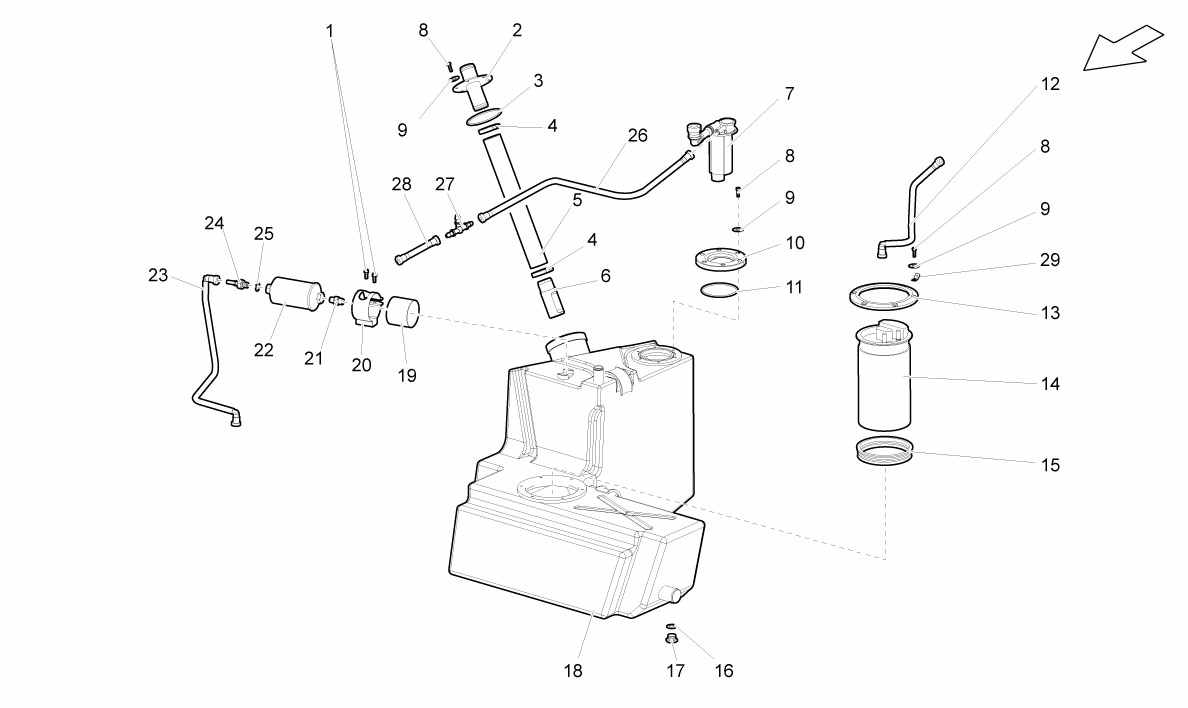

RH TANK

Go to Split View

RH TANK

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10207001 *Qty: 2 SCREW $0.90
Location: 2 Prev | Next Part: 400201138A *Qty: 1 PIPE UNION $94.57
Location: 3 Prev | Next Part: WHT001174 *Qty: 1 O-RING $6.58
Location: 4 Prev | Next Part: 8834004 *Qty: 2 CLAMP $8.10
Location: 5 Prev | Next Part: 400201841A *Qty: 1 PIPE $103.76
Location: 6 Prev | Next Part: 400201345 *Qty: 1 VALVE $318.64
Location: 7 Prev | Next Part: 400201521 *Qty: 1 FLOATING VALVE $348.54
Location: 8 Prev | Next Part: WHT001194 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: WHT001187 *Qty: 6 WASHER $0.90
Location: 10 Prev | Next Part: 400201768 *Qty: 1 FLANGE $129.09
Location: 11 Prev | Next Part: WHT001173 *Qty: 1 RING $8.33
Location: 12 Prev | Next Part: 400201216B *Qty: 1 RH PIPE $71.84
Location: 13 Prev | Next Part: 400201099 *Qty: 1 FLANGE $74.10
Location: 14 Prev | Next Part: 8L0919051H *Qty: 1 PUMP $555.26
Location: 15 Prev | Next Part: 1J0919133 *Qty: 1 GASKET $15.38
Location: 18 Prev | Next Part: 400201076A *Qty: 1 RH TANK $2,707.36
Location: 19 Prev | Next Part: 400201558A *Qty: 1 GASKET $3.96
Location: 20 Prev | Next Part: 400201255 *Qty: 1 BRACKET $8.36
Location: 21 Prev | Next Part: 400201149B *Qty: 1 CONNECTOR $68.07
Location: 22 Prev | Next Part: 400201511A *Qty: 1 FUEL FILTER (UP TO MY05 USE 400201558A) $112.26
Location: 23 Prev | Next Part: 400201214A *Qty: 1 RH PIPE $71.84
Location: 24 Prev | Next Part: 400201149 *Qty: 1 CONNECTOR $41.40
Location: 25 Prev | Next Part: 400201349 *Qty: 1 WASHER $8.01
Location: 26 Prev | Next Part: 400201163A *Qty: 1 VENT PIPE $43.20
Location: 27 Prev | Next Part: 400201382 *Qty: 1 CONNECTOR $2.33
Location: 28 Prev | Next Part: 400201163B *Qty: 1 VENT PIPE $18.76
Location: 29 Prev | Next Part: 400201211 *Qty: 1 FASTON $0.90

* Quantity shown indicates the number of pieces used in the diagram.
