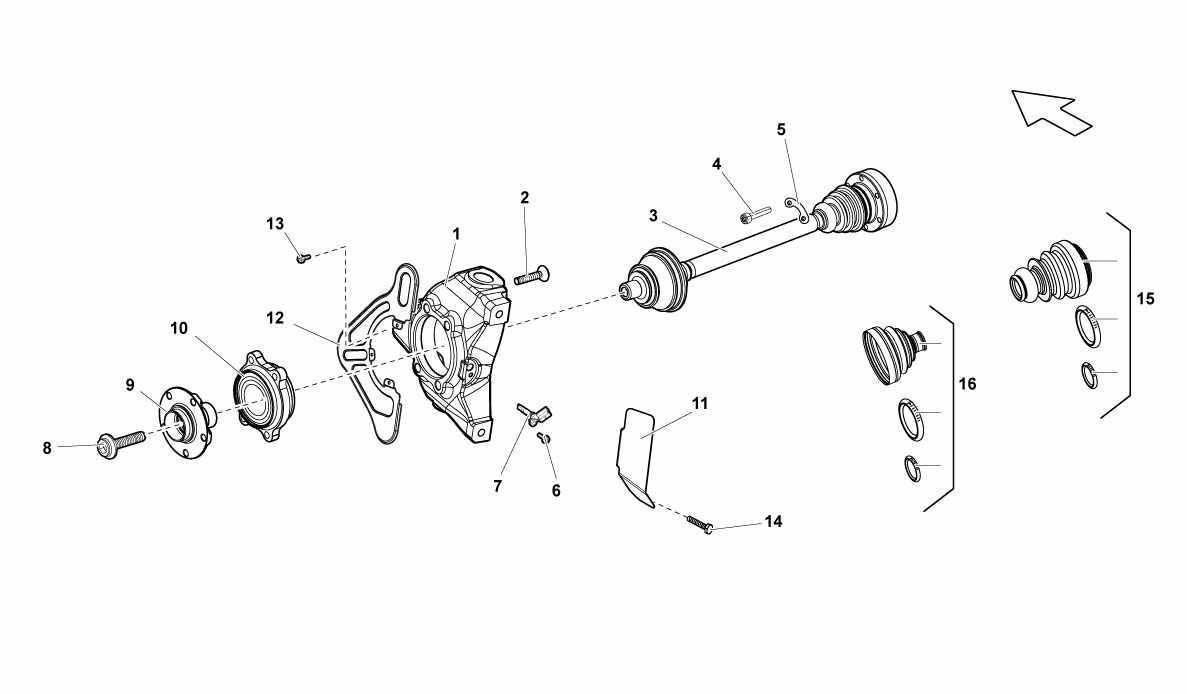

FRONT DRIVE SHAFT

Go to Split View

FRONT DRIVE SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400407246A *Qty: 1 FRONT RIGHT HUB CARRIER $491.29
Location: 1 Prev | Next Part: 400407245A *Qty: 1 FRONT LEFT HUB CARRIER $491.29
Location: 2 Prev | Next Part: WHT000237 *Qty: 8 SCREW $4.60
Location: 3 Prev | Next Part: 400407272 *Qty: 1 RH FRONT OMOKINETIC DRIVE SHAFT $804.90
Location: 3 Prev | Next Part: 400407271 *Qty: 1 LH FRONT OMOKINETIC DRIVE SHAFT $804.90
Location: 4 Prev | Next Part: WHT000922 *Qty: 12 SCREW $6.42
Location: 5 Prev | Next Part: 400407357 *Qty: 6 PLATTE $6.83
Location: 6 Prev | Next Part: N10226101 *Qty: 2 SCREW $0.91
Location: 7 Prev | Next Part: 4E0927804A *Qty: 1 RH ABS SENSOR $29.33
Location: 7 Prev | Next Part: 4E0927803A *Qty: 1 LH ABS SENSOR $30.59
Location: 8 Prev | Next Part: 4B0407643A *Qty: 2 SCREW $14.53
Location: 9 Prev | Next Part: 4E0407613A *Qty: 2 HUB $254.68
Location: 10 Prev | Next Part: 4E0407625D *Qty: 2 BEARING $142.71
Location: 11 Prev | Next Part: 400614753A *Qty: 1 LH PROTECTION $30.54
Location: 11 Prev | Next Part: 400614754A *Qty: 1 RH PROTECTION $30.54
Location: 12 Prev | Next Part: 400407722B *Qty: 1 RH PROTECTION $18.51
Location: 12 Prev | Next Part: 400407721B *Qty: 1 LH PROTECTION $18.51
Location: 15 Prev | Next Part: 400498099A *Qty: 2 KIT AXELSHAFT FORE INNER $55.57
Location: 16 Prev | Next Part: 400498099 *Qty: 2 KIT AXELSHAFT FORE OUTER $67.15

* Quantity shown indicates the number of pieces used in the diagram.
