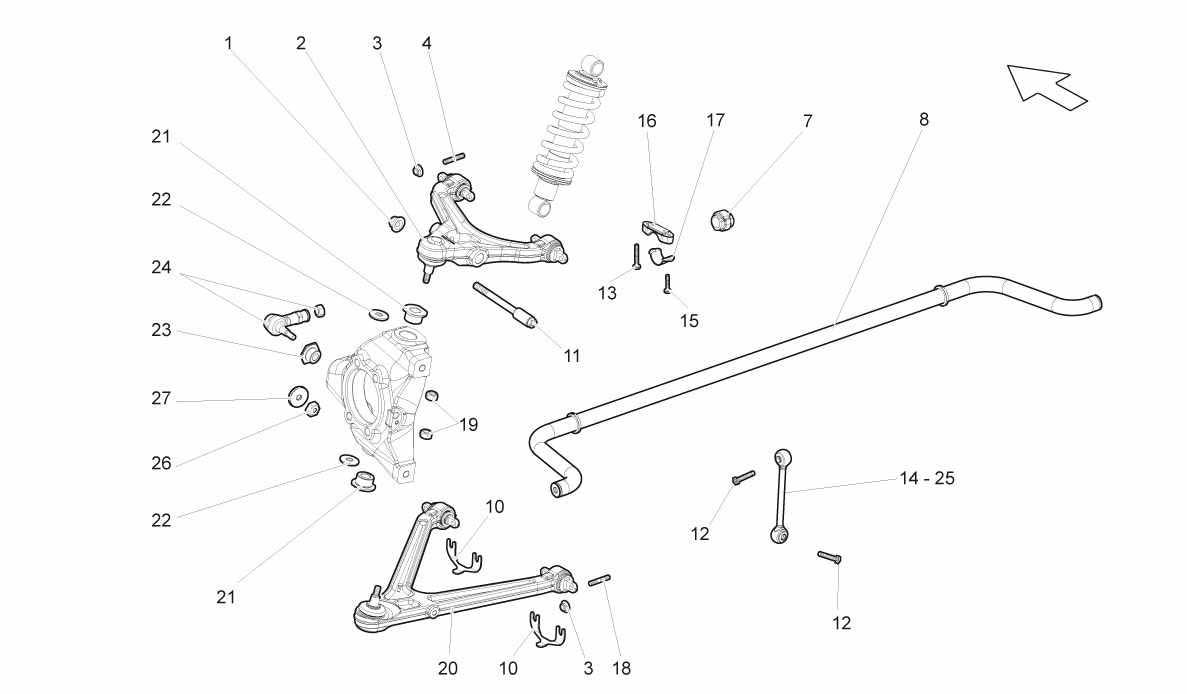

FRONT ARMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N90323704 *Qty: 1 NUT (M12X1-5) $1.90
Location: 2 Prev | Next Part: 400407505B *Qty: 1 LH UPPER ARM $2,646.34
Location: 2 Prev | Next Part: 400407506B *Qty: 1 RH UPPER ARM $1,878.03
Location: 3 Prev | Next Part: N90226403 *Qty: 16 NUT $0.90
Location: 4 Prev | Next Part: N91062101 *Qty: 8 STUD BOLT $4.54
Location: 7 Prev | Next Part: 4D0411327J *Qty: 2 BUSHING $8.57
Location: 8 Prev | Next Part: 400411309C *Qty: 1 FRONT STABILIZER BAR $231.38
Location: 10 Prev | Next Part: 400407379D *Qty: 16 2.5 MM SHIM $8.47
Location: 10 Prev | Next Part: 400407379C *Qty: 16 2.0 MM SHIM $8.47
Location: 10 Prev | Next Part: 400407379A *Qty: 16 1.0 MM SHIM $21.64
Location: 10 Prev | Next Part: 400407379E *Qty: 16 3.0 MM SHIM $8.47
Location: 10 Prev | Next Part: 400407379B *Qty: 16 1.5 MM SHIM $8.92
Location: 10 Prev | Next Part: 400407379 *Qty: 16 0.5 MM SHIM $3.99
Location: 10 Prev | Next Part: 400407379F *Qty: 16 0.3 MM SHIM $4.51
Location: 11 Prev | Next Part: 400411321 *Qty: 1 JOURNAL $36.70
Location: 12 Prev | Next Part: N10314503 *Qty: 4 SCREW M10X50 (M10X50) $1.58
Location: 13 Prev | Next Part: N10049303 *Qty: 4 SCREW M8X20 (M8X20) $0.90
Location: 14 Prev | Next Part: 400411317C *Qty: 4 RH CONNECTING ROD $254.64
Location: 15 Prev | Next Part: N10713801 *Qty: 4 SCREW (M6X16.0) $4.48
Location: 16 Prev | Next Part: 400411031K *Qty: 2 STABILIZER BAR BRACKET $115.77
Location: 17 Prev | Next Part: 4D0411336D *Qty: 2 STABILIZER BAR BRACKET $2.78
Location: 18 Prev | Next Part: N91062001 *Qty: 8 STUD BOLT $12.72
Location: 19 Prev | Next Part: N90323704 *Qty: 4 NUT (M12X1-5) $1.90
Location: 20 Prev | Next Part: 400407152B *Qty: 1 RH LOWER ARM $2,376.75
Location: 20 Prev | Next Part: 400407151B *Qty: 1 LH LOWER ARM $2,376.75
Location: 21 Prev | Next Part: 400407171B *Qty: 2 BUSHING $54.66
Location: 22 Prev | Next Part: 400505179B *Qty: 2 SPACER $32.76
Location: 23 Prev | Next Part: 400419121A *Qty: 1 BUSHING $166.69
Location: 24 Prev | Next Part: 400419811A *Qty: 2 JOINT COUPLING $333.35
Location: 25 Prev | Next Part: 400411317B *Qty: 1 LH CONNECTING ROD $64.65
Location: 26 Prev | Next Part: WHT000915 *Qty: 2 NUT (M10X1-25) $13.01
Location: 27 Prev | Next Part: WHT000919 *Qty: 2 WASHER (10.5X32.0X3.0) $10.24

* Quantity shown indicates the number of pieces used in the diagram.
