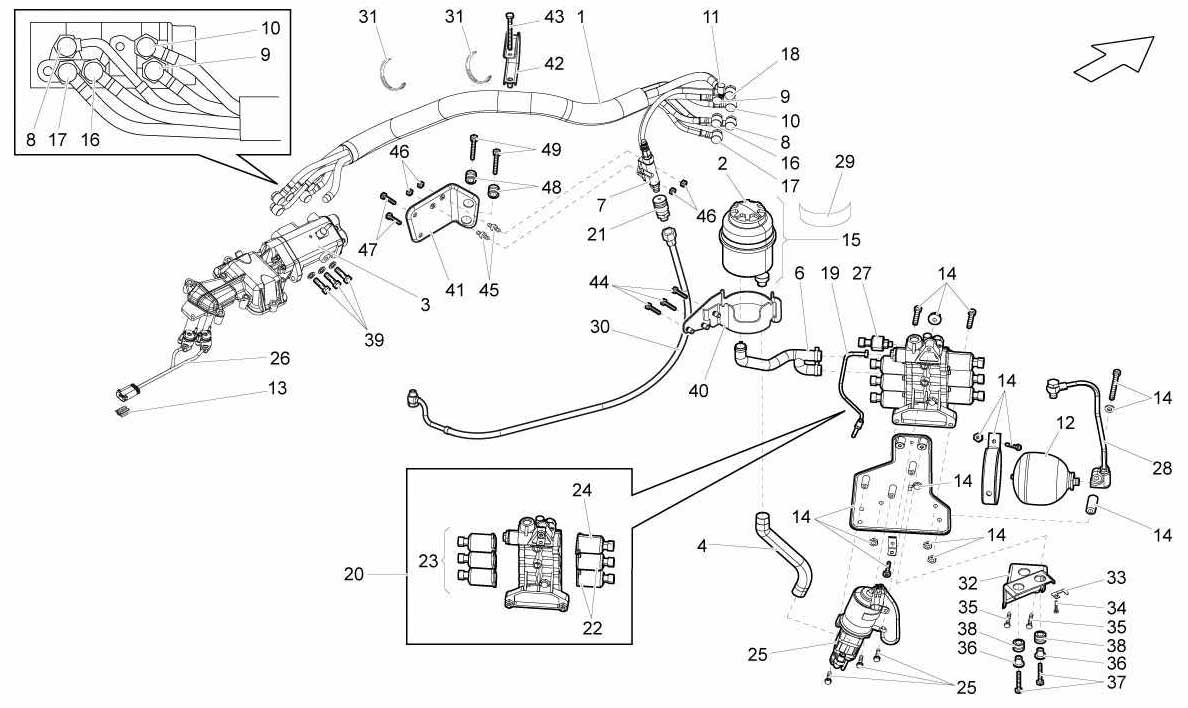

E-GEAR VALVES GROUP

Go to Split View

E-GEAR VALVES GROUP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86317831B *Qty: 1 SHEATH $145.91
Location: 2 Prev | Next Part: *Qty: 0 PLUG (CANNOT BE SOLD SEPARATELY - SEE REF. 15) Call
Location: 3 Prev | Next Part: 86325059 *Qty: 1 ACTUATOR GROUP $6,018.77
Location: 4 Prev | Next Part: 86325083B *Qty: 1 TUBE KIT $245.76
Location: 6 Prev | Next Part: 86325087B *Qty: 1 THREE-WAY PIPE KIT $301.90
Location: 7 Prev | Next Part: 86325089 *Qty: 1 KIT QUICK DISCONNECT (UNTIL THE VIN 6LA03952) $1,718.64
Location: 7 Prev | Next Part: 86325089A *Qty: 1 KIT QUICK DISCONNECT (FROM VIN 6LA03953) $1,733.01
Location: 8 Prev | Next Part: 86325095B *Qty: 1 TUBE EV2 $1,202.80
Location: 9 Prev | Next Part: 86325097B *Qty: 1 TUBE EV3 $1,069.85
Location: 10 Prev | Next Part: 86325107B *Qty: 1 TUBE EV1 $1,244.88
Location: 11 Prev | Next Part: 86325111A *Qty: 1 TUBE I RECIRCULATE KIT $87.83
Location: 12 Prev | Next Part: 86325141 *Qty: 1 STORAGE BATTERY Call
Location: 13 Prev | Next Part: 86325147 *Qty: 1 CLIP Call
Location: 14 Prev | Next Part: 86325153A *Qty: 1 BRACKETS $420.45
Location: 15 Prev | Next Part: 86325161 *Qty: 1 OIL TANK KIT $173.62
Location: 16 Prev | Next Part: 86325163B *Qty: 1 TUBE EV4 $578.79
Location: 17 Prev | Next Part: 86325165B *Qty: 1 TUBE EV5 $709.26
Location: 18 Prev | Next Part: 86325171B *Qty: 1 TUBE EVF $310.89
Location: 19 Prev | Next Part: 86325179B *Qty: 1 HIGH PRESSURE TUBE $127.98
Location: 20 Prev | Next Part: 86325181B *Qty: 1 VALVES GROUP Superseded
Location: 21 Prev | Next Part: 86325273A *Qty: 1 FEMALE CONNECTION (FROM VIN 6LA03953) $279.10
Location: 21 Prev | Next Part: 86325273 *Qty: 1 FEMALE CONNECTION (UNTIL THE VIN 6LA03952) $259.49
Location: 22 Prev | Next Part: 86325293 *Qty: 1 ACTUATOR - VALVE PPV02 (PACKING + LIVES) $730.78
Location: 23 Prev | Next Part: 86325295 *Qty: 1 ACTUATOR - VALVE QPV02 (PACKING + LIVES) $808.15
Location: 24 Prev | Next Part: 86325297 *Qty: 1 ACTUATOR - VALVE QPV02 (PACKING + LIVES) $808.24
Location: 25 Prev | Next Part: 86901137A *Qty: 1 ELECTRIC PUMP KIT $1,588.20
Location: 26 Prev | Next Part: 86907811 *Qty: 1 POSITION SENSORS KIT $719.94
Location: 27 Prev | Next Part: 86919331 *Qty: 1 PRESSURE SENSOR $346.49
Location: 28 Prev | Next Part: 86325111B *Qty: 1 TUBE I RECIRCULATE KIT $157.66
Location: 29 Prev | Next Part: 86010530 *Qty: 1 NAMEPLATE $7.10
Location: 30 Prev | Next Part: 7L115673A *Qty: 1 TUBE $1,332.17
Location: 31 Prev | Next Part: 400971850B *Qty: 2 CLAMP $1.49
Location: 32 Prev | Next Part: 407326111 *Qty: 1 BRACKET $38.21
Location: 33 Prev | Next Part: 400326138 *Qty: 1 SUPPORT $7.59
Location: 34 Prev | Next Part: N90444601 *Qty: 1 SCREW $0.90
Location: 35 Prev | Next Part: N0902423 *Qty: 2 SCREW $0.90
Location: 36 Prev | Next Part: 407311626 *Qty: 2 BUSHING $9.77
Location: 37 Prev | Next Part: N90632102 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 357711798 *Qty: 2 RUBBER SEAL $2.23
Location: 39 Prev | Next Part: 86398199A *Qty: 3 BLEEDER $53.72
Location: 40 Prev | Next Part: 407326119A *Qty: 1 CLAMP $49.01
Location: 41 Prev | Next Part: 407326125A *Qty: 1 BRACKET $35.55
Location: 42 Prev | Next Part: 407326135 *Qty: 1 BRACKET $16.80
Location: 43 Prev | Next Part: N90493101 *Qty: 1 SCREW $2.65
Location: 44 Prev | Next Part: N10434903 *Qty: 3 SCREW M6X20 $0.90
Location: 45 Prev | Next Part: 400972081 *Qty: 2 PUFFER $9.66
Location: 46 Prev | Next Part: N0150825 *Qty: 4 NUT $0.90
Location: 47 Prev | Next Part: N90847901 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
