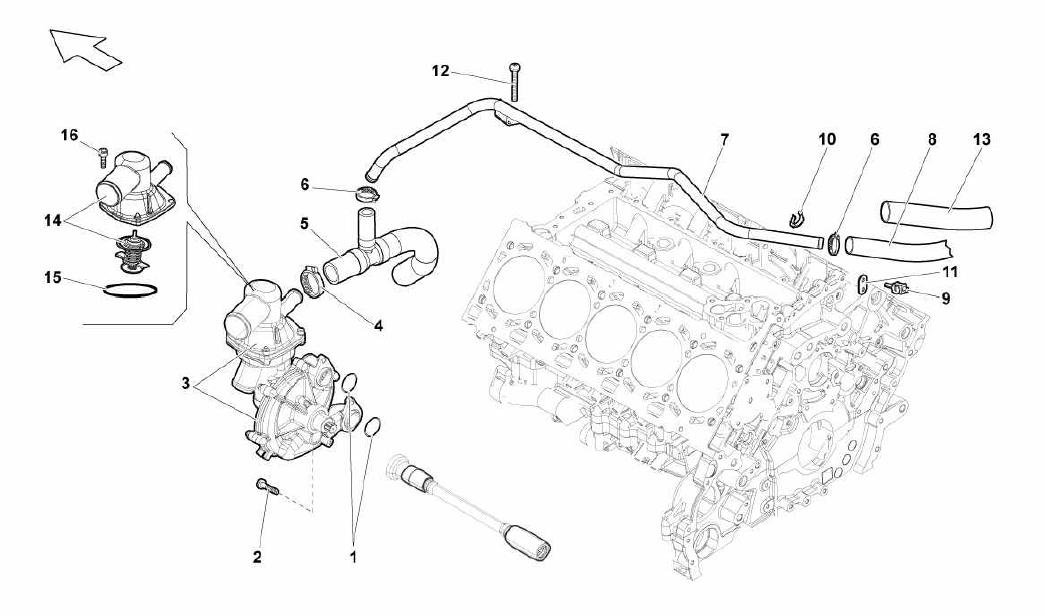

WATER COOLING SYSTEM

Go to Split View

WATER COOLING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N90903302 *Qty: 2 O-RING Unavailable
Location: 2 Prev | Next Part: N10124303 *Qty: 2 SCREW Unavailable
Location: 3 Prev | Next Part: 7L121011E *Qty: 1 WATER PUMP Unavailable
Location: 4 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MODEL) Unavailable
Location: 5 Prev | Next Part: *Qty: 0 PIPE (SEE TABLE 260.02.00 - REF. 36) Unavailable
Location: 6 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MODEL) Unavailable
Location: 7 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL) Unavailable
Location: 8 Prev | Next Part: *Qty: 0 PIPE (SEE TABLE 260.02.00 - REF. 42) Unavailable
Location: 9 Prev | Next Part: *Qty: 0 JOURNAL (VALID FOR A DIFFERENT MODEL) Unavailable
Location: 10 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MODEL) Unavailable
Location: 11 Prev | Next Part: *Qty: 0 PLATTE (VALID FOR A DIFFERENT MODEL) Unavailable
Location: 12 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL) Unavailable
Location: 13 Prev | Next Part: *Qty: 0 PROTECTION (VALID FOR A DIFFERENT MODEL) Unavailable
Location: 14 Prev | Next Part: 7L198113 *Qty: 1 WATER THERMOSTAT BODY Unavailable
Location: 15 Prev | Next Part: WHT003459 *Qty: 1 GASKET Unavailable
Location: 16 Prev | Next Part: WHT003470 *Qty: 4 SCREW M8X18 Unavailable
Location: 34 Prev | Next Part: *Qty: 0 0 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
