WATER COOLING SYSTEM

Go to Split View

WATER COOLING SYSTEM

in cart
Go to Split View

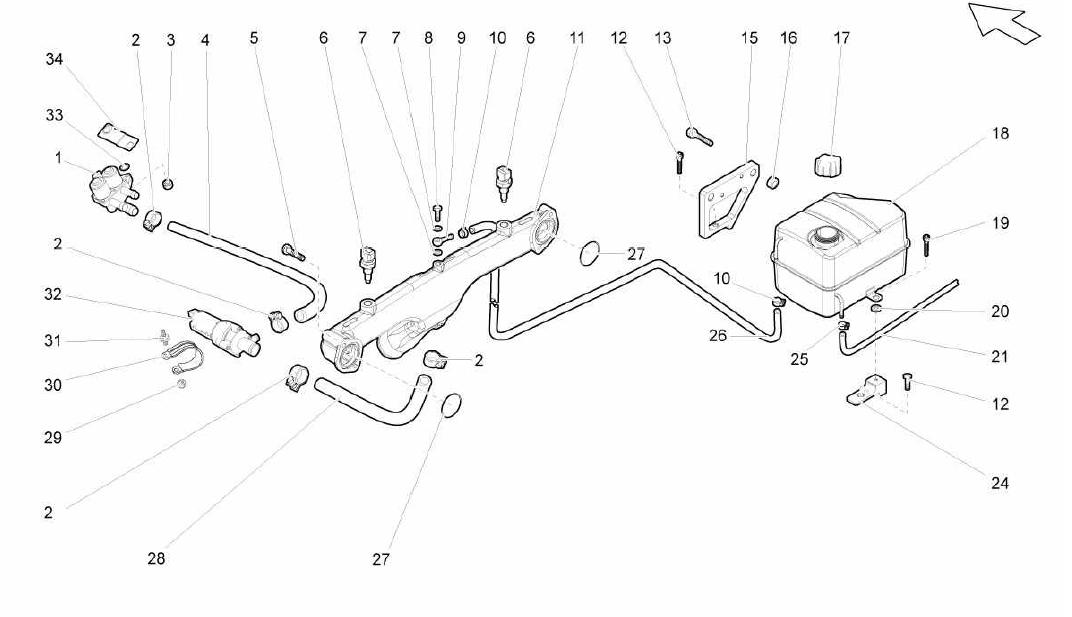

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400820036A *Qty: 1 VALVE Unavailable
Location: 2 Prev | Next Part: N0245203 *Qty: 6 CLAMP Unavailable
Location: 3 Prev | Next Part: N90367502 *Qty: 1 NUT Unavailable
Location: 4 Prev | Next Part: 400819362 *Qty: 1 SLEEVE Unavailable
Location: 5 Prev | Next Part: N10117403 *Qty: 2 SCREW Unavailable
Location: 6 Prev | Next Part: 7L919501A *Qty: 2 WATER TEMPERATURE SENSOR Unavailable
Location: 7 Prev | Next Part: N0138302 *Qty: 4 WASHER Unavailable
Location: 8 Prev | Next Part: WHT000524 *Qty: 2 SCREW WITH HOLE Unavailable
Location: 9 Prev | Next Part: N91104301 *Qty: 2 CONNECTOR Unavailable
Location: 10 Prev | Next Part: N90293002 *Qty: 2 CLAMP Unavailable
Location: 11 Prev | Next Part: 7L121045 *Qty: 1 CONNECTOR Unavailable
Location: 12 Prev | Next Part: N90166802 *Qty: 1 SCREW Unavailable
Location: 13 Prev | Next Part: N10470701 *Qty: 2 SCREW M6X50 Unavailable
Location: 15 Prev | Next Part: 400133576 *Qty: 1 BRACKET Unavailable
Location: 16 Prev | Next Part: 8800606 *Qty: 2 BUSH Unavailable
Location: 17 Prev | Next Part: 7L121482 *Qty: 1 PLUG Unavailable
Location: 18 Prev | Next Part: 7L121407 *Qty: 1 WATER TANK Unavailable
Location: 19 Prev | Next Part: N10227803 *Qty: 1 SCREW Unavailable
Location: 20 Prev | Next Part: 8610903 *Qty: 1 RUBBER BUSHING Unavailable
Location: 21 Prev | Next Part: 7L121103 *Qty: 1 HOSE Unavailable
Location: 24 Prev | Next Part: 400133599 *Qty: 1 BRACKET Unavailable
Location: 25 Prev | Next Part: N91130601 *Qty: 1 CLAMP Unavailable
Location: 26 Prev | Next Part: 7L121109 *Qty: 1 HOSE Unavailable
Location: 27 Prev | Next Part: N10129201 *Qty: 2 O-RING Unavailable
Location: 28 Prev | Next Part: 400819159A *Qty: 1 JUNCTION Unavailable
Location: 29 Prev | Next Part: N0150825 *Qty: 1 NUT Unavailable
Location: 30 Prev | Next Part: 8834003 *Qty: 1 CLAMP Unavailable
Location: 31 Prev | Next Part: *Qty: 0 0 Unavailable
Location: 31 Prev | Next Part: 400972081A *Qty: 1 PUFFER Unavailable
Location: 32 Prev | Next Part: 78965561 *Qty: 1 WATER PUMP Unavailable
Location: 33 Prev | Next Part: 400864179 *Qty: 2 RUBBER WASHER Unavailable
Location: 34 Prev | Next Part: 400820761 *Qty: 1 BRACKET Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
