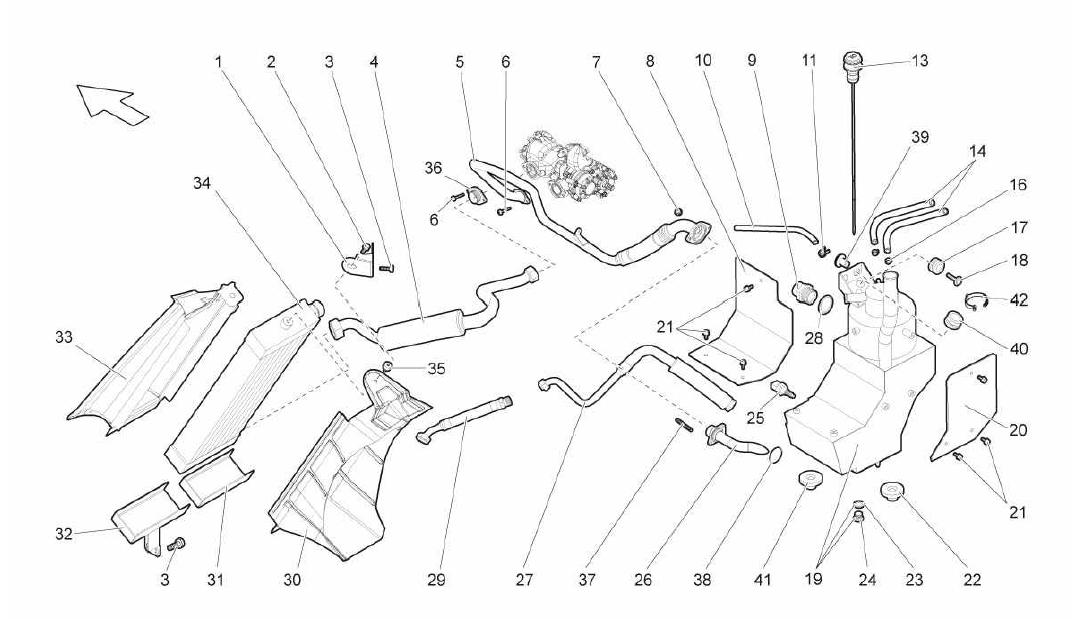

OIL SYSTEM RADIATOR

Go to Split View

OIL SYSTEM RADIATOR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400117098A *Qty: 1 BRACKET Unavailable
Location: 2 Prev | Next Part: N0902322 *Qty: 1 SCREW M6X10 Unavailable
Location: 3 Prev | Next Part: N90847901 *Qty: 4 SCREW Unavailable
Location: 4 Prev | Next Part: 7L117413A *Qty: 1 HOSE Unavailable
Location: 5 Prev | Next Part: 7L115687A *Qty: 1 HOSE Unavailable
Location: 6 Prev | Next Part: N10451402 *Qty: 4 SCREW M6X16 Unavailable
Location: 7 Prev | Next Part: N90265703 *Qty: 2 NUT M6X7.6 Unavailable
Location: 8 Prev | Next Part: 400115339A *Qty: 1 HEAT SHIELD Unavailable
Location: 9 Prev | Next Part: 400115707 *Qty: 1 CONNECTOR Unavailable
Location: 10 Prev | Next Part: 7L115655 *Qty: 1 LH PIPE Unavailable
Location: 11 Prev | Next Part: N10233401 *Qty: 2 CLAMP 16.2 X 7 X 0.60 Unavailable
Location: 13 Prev | Next Part: 7L115311C *Qty: 1 PLUG Unavailable
Location: 14 Prev | Next Part: 7L115664 *Qty: 2 PIPE Unavailable
Location: 16 Prev | Next Part: N90107203 *Qty: 2 CLAMP 12 X 8.0 X 0.5 Unavailable
Location: 17 Prev | Next Part: 357711798 *Qty: 2 RUBBER SEAL Unavailable
Location: 18 Prev | Next Part: N10005104 *Qty: 2 SCREW M8X35 Unavailable
Location: 19 Prev | Next Part: 7L115371E *Qty: 1 OIL TANK Unavailable
Location: 20 Prev | Next Part: 400115341A *Qty: 1 HEAT SHIELD Unavailable
Location: 21 Prev | Next Part: N10156305 *Qty: 6 SCREW M6X12 Unavailable
Location: 22 Prev | Next Part: 7L115333B *Qty: 1 RUBBER BUFFER Unavailable
Location: 23 Prev | Next Part: N0138486 *Qty: 1 WASHER A16X22 Superseded
Location: 24 Prev | Next Part: N0160282 *Qty: 1 OIL DRAINAGE M16X1-5 Superseded
Location: 25 Prev | Next Part: 7L919501A *Qty: 1 TEMPERATURE SENSOR Unavailable
Location: 26 Prev | Next Part: 7L115659 *Qty: 1 OIL SUCTION ROSE Unavailable
Location: 27 Prev | Next Part: 7L115689 *Qty: 1 PIPE Unavailable
Location: 28 Prev | Next Part: N91107101 *Qty: 1 WASHER Unavailable
Location: 29 Prev | Next Part: 7L115688 *Qty: 1 PIPE Unavailable
Location: 30 Prev | Next Part: *Qty: 0 0 Unavailable
Location: 30 Prev | Next Part: 400117335 *Qty: 1 COOLER EXIT CONE Unavailable
Location: 31 Prev | Next Part: 418864929 *Qty: 1 PROTECTION Unavailable
Location: 32 Prev | Next Part: 400117097A *Qty: 1 BRACKET Unavailable
Location: 33 Prev | Next Part: 400317025 *Qty: 1 LH CONVEYOR Unavailable
Location: 34 Prev | Next Part: 7L117015A *Qty: 1 OIL COOLER Unavailable
Location: 35 Prev | Next Part: 7L133741 *Qty: 1 SUPPORT Unavailable
Location: 36 Prev | Next Part: 7L115255 *Qty: 1 FLANGE Unavailable
Location: 37 Prev | Next Part: WHT000759 *Qty: 2 STUD BOLT (M6X14) Unavailable
Location: 38 Prev | Next Part: N10129201 *Qty: 1 O-RING 34.5X2.65 Unavailable
Location: 39 Prev | Next Part: 1J0711795 *Qty: 2 SPACER Unavailable
Location: 40 Prev | Next Part: 400422095 *Qty: 1 FAIRLEAD Unavailable
Location: 41 Prev | Next Part: 7L115333 *Qty: 1 RUBBER BUFFER Unavailable
Location: 41 Prev | Next Part: *Qty: 0 0 Unavailable
Location: 42 Prev | Next Part: N90937701 *Qty: 1 CLAMP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
