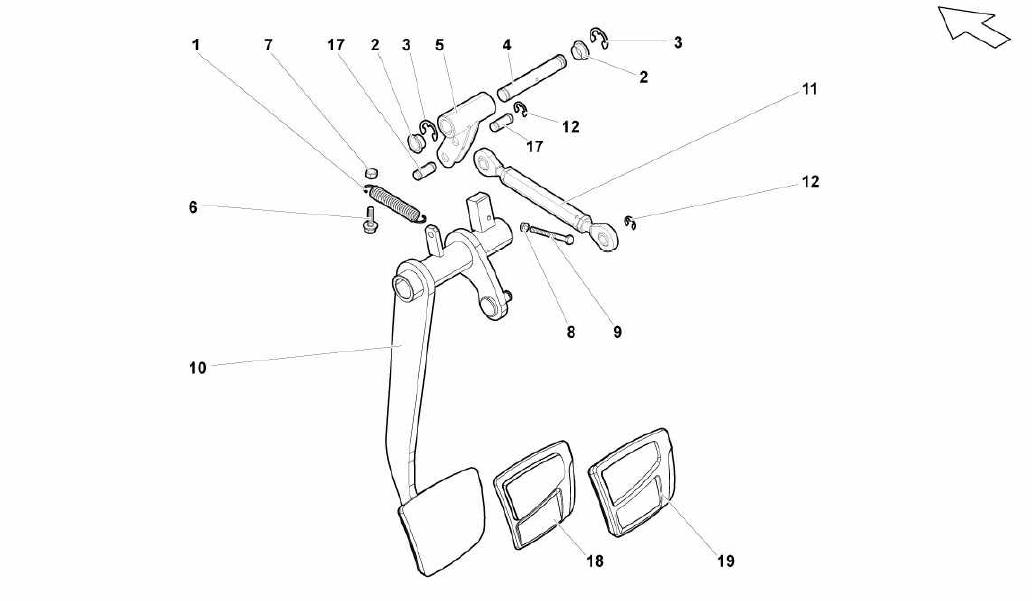

BRAKE PEDAL

Go to Split View

BRAKE PEDAL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400721363A *Qty: 1 SPRING (E-GEAR) $5.91
Location: 2 Prev | Next Part: 400721389 *Qty: 2 BUSHING $22.81
Location: 3 Prev | Next Part: N0124402 *Qty: 2 CLIP $0.90
Location: 4 Prev | Next Part: N91024201 *Qty: 1 SHAFT $11.47
Location: 5 Prev | Next Part: 401721313 *Qty: 1 LEVER (FOR LHD CARS) $66.41
Location: 6 Prev | Next Part: N90833201 *Qty: 1 SCREW $0.90
Location: 7 Prev | Next Part: N01100625 *Qty: 1 NUT $0.90
Location: 8 Prev | Next Part: N0110051 *Qty: 1 NUT $5.51
Location: 9 Prev | Next Part: N10579401 *Qty: 1 SCREW $1.85
Location: 10 Prev | Next Part: 401721141B *Qty: 1 BRAKE PEDAL (GSX AUTOMATIC GEARBOX) $731.72
Location: 11 Prev | Next Part: 400723323 *Qty: 1 PARTICULAR $165.09
Location: 12 Prev | Next Part: N0124391 *Qty: 3 CLIP $0.90
Location: 17 Prev | Next Part: N91024101 *Qty: 2 SHAFT $36.96
Location: 18 Prev | Next Part: 400721174D *Qty: 1 PEDAL PAD (E-GEAR) $29.84
Location: 19 Prev | Next Part: 400721780A *Qty: 1 COVER $105.85
Location: 33 Prev | Next Part: *Qty: 0 0 Call

* Quantity shown indicates the number of pieces used in the diagram.
