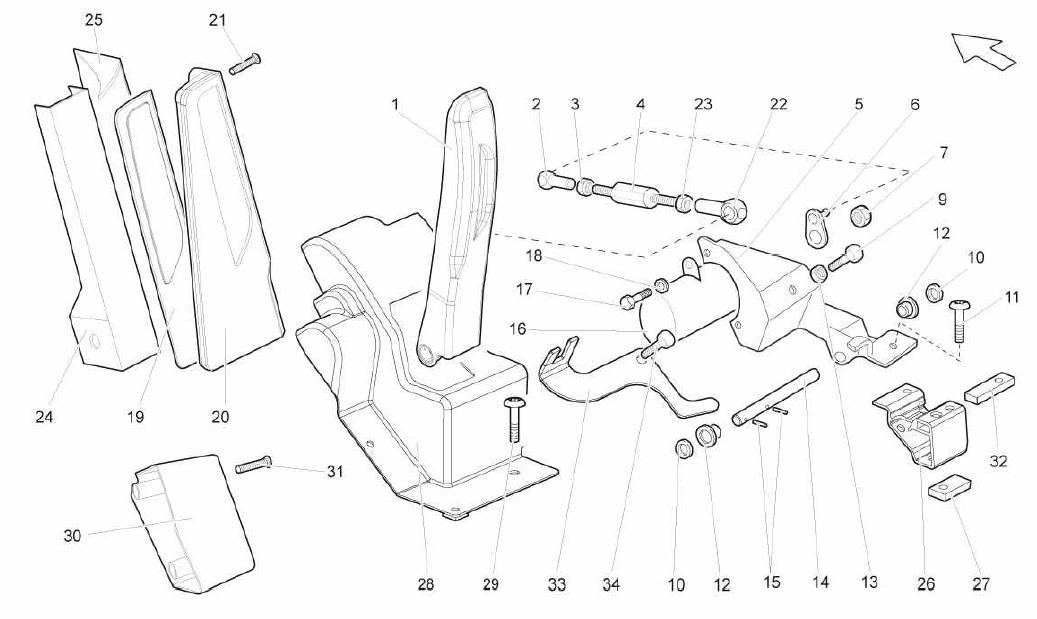

ACCELERATOR PEDAL (E-GEAR)

Go to Split View

ACCELERATOR PEDAL (E-GEAR)

Location Part # Quantity* Description Price Add To Cart
1 400721507A 1 ACCELERATOR PEDAL Unavailable
2 410721214 1 BALL JOINT COUPLING (LEFT HAND THREAD) Unavailable
3 8200504 2 NUT (LEFT HAND THREAD) Unavailable
4 400721743 1 SHAFT Unavailable
5 400721651 1 ACCELERATOR PEDAL Unavailable
6 400721728 1 LEVER Unavailable
7 N0150825 1 NUT Unavailable
9 N0103351 1 SCREW M8X35 Unavailable
10 WHT000697 2 WASHER 13X22X0-3 Unavailable
11 N91000201 6 SCREW M8X25 Unavailable
12 400721543 2 BUSHING Unavailable
13 N01100830 1 NUT Unavailable
14 400721157 1 JOURNAL Unavailable
15 8900204 2 PIN Unavailable
16 400907475 1 POTENTIOMETER Superseded
17 8700614 2 SCREW M6X16 Unavailable
18 8400628 2 WASHER 6X12X1 Unavailable
19 401864431 1 RUBBER Unavailable
20 401864419B 1 FOOTREST PEDAL COVER Unavailable
21 N10648801 2 SCREW M6X80 Unavailable
22 400721214A 1 BALL JOINT COUPLING Unavailable
23 8200501 2 NUT M5 Unavailable
24 401864523A 1 SUPPORT Unavailable
25 401864431B 1 COVER Unavailable
26 400803427A 1 U-BOLT Unavailable
27 401803016 2 PLATE Unavailable
28 401721585A 1 ACCELERATOR COVER BOX Unavailable
29 N91000201 1 SCREW M8X25 Unavailable
29 0 0 Unavailable
29 N91032701 2 SCREW M6X20 Unavailable
30 0 FOOTREST PEDAL COVER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Unavailable
31 0 SCREW M6X80 (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Unavailable
32 400723325B 1 PLATE Unavailable
32 0 0 Unavailable
33 402971890 1 BRACKET Unavailable
34 N90847901 1 SCREW M6X15 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
