POWER BRAKE (E-GEAR)

Go to Split View

POWER BRAKE (E-GEAR)

in cart
Go to Split View

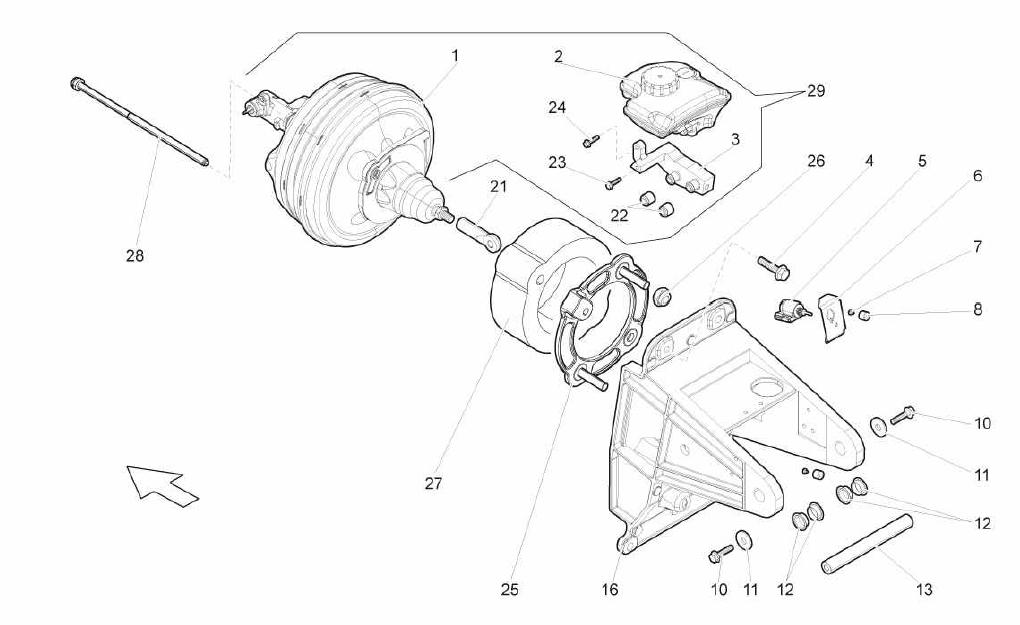

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 1 POWER BRAKE (CANNOT BE SOLD SEPARATELY - SEE REF. 29) Call
Location: 2 Prev | Next Part: 3D0611301B *Qty: 1 POWER BRAKE TANK $107.23
Location: 3 Prev | Next Part: *Qty: 1 SUPPORT (CANNOT BE SOLD SEPARATELY - SEE REF. 29) Call
Location: 4 Prev | Next Part: N10005103 *Qty: 4 SCREW $6.05
Location: 5 Prev | Next Part: 3B0945511B *Qty: 1 STOP SWITCH Call
Location: 6 Prev | Next Part: 400721633B *Qty: 1 STOP SWITCH SUPPORT $41.57
Location: 7 Prev | Next Part: N10620801 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 400721589A *Qty: 2 BUFFER $41.69
Location: 10 Prev | Next Part: N10170509 *Qty: 2 SCREW $0.90
Location: 11 Prev | Next Part: 400721013 *Qty: 2 PLATE $1.08
Location: 12 Prev | Next Part: 400721153A *Qty: 4 BUSHING $2.42
Location: 13 Prev | Next Part: 400721309A *Qty: 1 SHAFT $38.02
Location: 16 Prev | Next Part: 401721117 *Qty: 1 SUPPORT (FOR LHD CARS) $359.81
Location: 21 Prev | Next Part: 401721339 *Qty: 1 BALL JOINT COUPLING (FOR LHD CARS) $126.32
Location: 22 Prev | Next Part: 4A0611817A *Qty: 2 GASKET $8.95
Location: 23 Prev | Next Part: N90533002 *Qty: 1 SCREW $1.19
Location: 24 Prev | Next Part: N90638801 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 400614130 *Qty: 1 SPACER $262.34
Location: 26 Prev | Next Part: N0150839 *Qty: 2 NUT $0.90
Location: 27 Prev | Next Part: *Qty: 1 SPACER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 28 Prev | Next Part: N90950501 *Qty: 2 SCREW $4.66
Location: 29 Prev | Next Part: 400612100A *Qty: 1 POWER BRAKE (COMPLETE) Call
Location: 34 Prev | Next Part: *Qty: 0 0 Call

* Quantity shown indicates the number of pieces used in the diagram.
