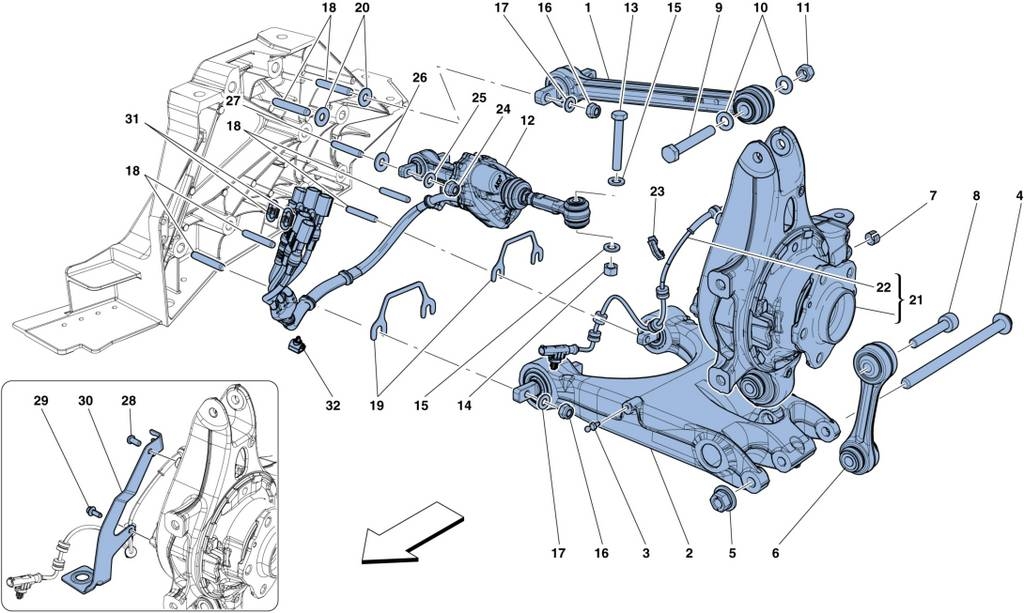

REAR SUSPENSION - CONTROL ARMS

Location Part # Quantity* Description Price Add To Cart
1 259687 2 Rear Upper Arm Complete $453.18
2 329243 1 LH Rear Lower Arm Complete $1,145.77
2 329244 1 RH Rear Lower Arm Complete $1,145.77
3 343376 2 Ball Joint $18.95
4 238656 2 Special Screw 14x1.5x $27.93
5 238063 2 Nut $4.85
6 259688 2 Anti Rotation Linkage $189.38
7 222956 2 Compensator Ring 24x12 Unavailable
8 238258 2 Screw 12x1.25x75 $38.89
9 15541434 2 Screw 12x1.25x80 $2.64
10 14496721 4 Washer Unavailable
11 203666 2 Nut $1.14
12 330990 1 LH Actuator Complete $7,400.16
12 330992 1 RH Actuator Complete $7,400.16
13 15541434 2 Screw 12x1.25x80 $2.64
14 203666 2 Nut $1.14
15 14496721 4 Washer Unavailable
16 104114 12 Nyloc Nut Superseded
17 14496624 12 Washer D. 10.50-21 x2 $0.90
18 264528 12 Threaded Rod 10x1.25 $4.67
19 263032 8 Camber Spacer 0.5mm $13.93
19 263033 8 Camber Spacer 1.0mm $4.41
19 263034 8 Camber Spacer 1.5mm $4.41
19 263035 8 Camber Spacer 2.0mm $4.41
19 263036 8 Camber Spacer 2.5mm $6.37
19 263037 8 Camber Spacer 3.0mm $6.37
19 263038 8 Camber Spacer 3.5mm $6.37
19 263039 8 Camber Spacer 4.0mm $6.37
20 12646821 4 Washer D.10 20-25x2 Unavailable
21 294850 1 LH Hub Carrier $2,018.10
21 294851 1 RH Hub Carrier $2,018.10
22 252514 2 ABS Sensor $224.78
23 251744 4 Clip $1.91
24 104030 4 Nyloc Nut 8x1.25 $0.90
25 14496524 4 Washer $0.90
26 13578321 4 Washer D.8.15-24X Unavailable
27 302406 4 Threaded Rod $2.97
28 250657 2 Screw 6x14 $7.77
29 11568027 2 Screw 6x18 $1.87
30 294300 1 LH Bracket Unavailable
30 294301 1 RH Bracket Unavailable
31 291678 4 Connector Retainer Clip $0.90
32 303508 2 Molletta Raymond $0.90

* Quantity shown indicates the number of pieces used in the diagram.
