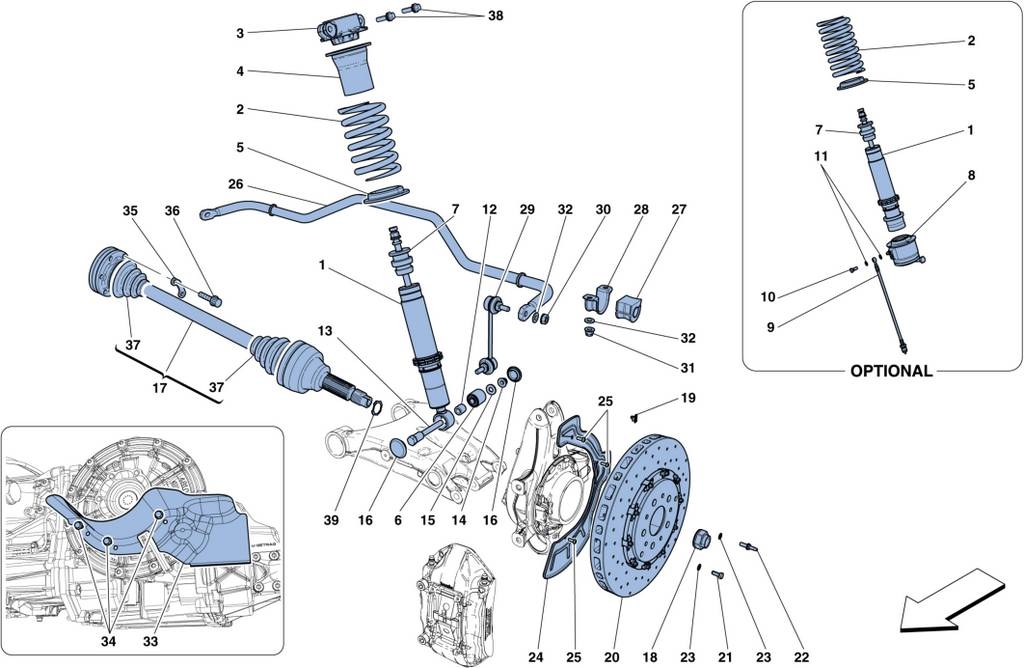

REAR SUSPENSION - SHOCK ABSORBER, AXLE SHAFT, AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER, AXLE SHAFT, AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 309805 *Qty: 2 Rear Shock Absorber $1,628.89
Location: 1 Prev | Next Part: 309807 *Qty: 2 Rear Shock Absorbe; Version with lifter $2,090.89
Location: 2 Prev | Next Part: 309151 *Qty: 2 Rear Suspension Spring K=78 N/M $163.68
Location: 2 Prev | Next Part: 269637 *Qty: 2 Rear Suspension Spring; Version with lifter $131.16
Location: 3 Prev | Next Part: 274308 *Qty: 2 Stop Cap $216.08
Location: 4 Prev | Next Part: 212517 *Qty: 2 Upper Spacer $10.68
Location: 5 Prev | Next Part: 211236 *Qty: 2 Lower Spacer $27.97
Location: 6 Prev | Next Part: 157630 *Qty: 2 Shock Absorber Bush $106.14
Location: 7 Prev | Next Part: 267936 *Qty: 2 Endstop Bush $37.51
Location: 8 Prev | Next Part: 300214 *Qty: 2 Actuator Complete; Version with lifter $1,408.01
Location: 9 Prev | Next Part: 260408 *Qty: 2 Rubber Pipe; Version with lifter $55.94
Location: 10 Prev | Next Part: 261587 *Qty: 2 Union; Version with lifter $28.99
Location: 11 Prev | Next Part: 259638 *Qty: 4 Gasket 8.7-14; Version with lifter $13.48
Location: 12 Prev | Next Part: 237821 *Qty: 2 Bushing 18x15 $5.66
Location: 13 Prev | Next Part: 246962 *Qty: 2 Special Screw 12x1.25 $35.61
Location: 14 Prev | Next Part: 255271 *Qty: 2 Nut $1.60
Location: 15 Prev | Next Part: 12646921 *Qty: 2 Washer $0.90
Location: 16 Prev | Next Part: 14507987 *Qty: 6 Plug $6.50
Location: 17 Prev | Next Part: 274635 *Qty: 2 Axle Shaft $1,151.44
Location: 18 Prev | Next Part: 203780 *Qty: 2 Hub Nut $25.46
Location: 19 Prev | Next Part: 204781 *Qty: 2 Clip; Fastening wear indicator cable $0.99
Location: 20 Prev | Next Part: 296894 *Qty: 2 Brake Disc $4,477.05
Location: 21 Prev | Next Part: 228131 *Qty: 2 Screw 8x20 Unavailable
Location: 22 Prev | Next Part: 104370 *Qty: 2 Stud For Wheel Alignment $0.90
Location: 23 Prev | Next Part: 228132 *Qty: 4 Washer Unavailable
Location: 24 Prev | Next Part: 257424 *Qty: 1 RH Rear Disc Shield $56.32
Location: 24 Prev | Next Part: 257423 *Qty: 1 LH Rear Disc Shield $56.32
Location: 25 Prev | Next Part: 250657 *Qty: 6 Screw 6x14 $7.27
Location: 26 Prev | Next Part: 262790 *Qty: 1 Rear Stabiliser Bar $378.35
Location: 27 Prev | Next Part: 236242 *Qty: 2 Plug D21x36 $28.99
Location: 28 Prev | Next Part: 244778 *Qty: 2 Pad Fastening Plate $20.98
Location: 29 Prev | Next Part: 242392 *Qty: 1 LH Ball Tie Rod; On lower LH arm $111.64
Location: 29 Prev | Next Part: 242391 *Qty: 1 RH Ball Tie Rod; On lower RH arm $111.54
Location: 30 Prev | Next Part: 12164714 *Qty: 2 Nut $0.90
Location: 31 Prev | Next Part: 12578321 *Qty: 2 Nut Unavailable
Location: 32 Prev | Next Part: 12601474 *Qty: 4 Wavy Washer 10mm Unavailable
Location: 33 Prev | Next Part: 259461 *Qty: 1 RH Axle Shaft Heat Shield Unavailable
Location: 33 Prev | Next Part: 248707 *Qty: 1 LH Axle Shaft Heat Shield $67.36
Location: 34 Prev | Next Part: 16296924 *Qty: 6 Screw 6x14 Unavailable
Location: 35 Prev | Next Part: 220325 *Qty: 6 Shim Plate $4.29
Location: 36 Prev | Next Part: 237590 *Qty: 12 Screw 10x1.25x50 $5.30
Location: 37 Prev | Next Part: 70006023 *Qty: 1 Gaiter Replacement Kit; Wheel/gearbox side $134.03
Location: 38 Prev | Next Part: 248790 *Qty: 4 Screw 12X1.25X50 $4.64
Location: 39 Prev | Next Part: 814779 *Qty: 2 Special Ring Bearing For AXL; Applicable from Ass. No. 157474 $12.70

* Quantity shown indicates the number of pieces used in the diagram.
