| Location |
Part # |
Quantity* |
Description |
Price |
Add To Cart |
|
1
|
328466
|
2
|
Front Wheel 8-5Jx20"; 8.5J X 20"- -Cast- matte silver paint finish- -See box A- -Modis code STANDARD
|
$1,192.67
|
|
|
1
|
327805
|
2
|
Front Wheel 8-5Jx20"; 8.5J X 20"- -Cast- chrome paint finish- -See box B- -Modis code RICS
|
$1,636.60
|
|
|
1
|
327799
|
2
|
Front Wheel; 8.5J X 20"- -Forged- chrome paint finish- -See box C- -Modis code RMSV
|
$5,257.89
|
|
|
1
|
327112
|
2
|
Front Wheel; 8.5J X 20"- -Forged- diamond cut- -See box D- -Modis code RSFD
|
$6,155.58
|
|
|
1
|
327108
|
2
|
Front Wheel; 8.5J X 20"- -Forged painted matt Corsa grey- -See box E- -Modis code RIFS
|
$5,257.89
|
|
|
1
|
328467
|
2
|
Rear Wheel 10-5Jx20; 10.5J X 20"- -Cast- matte silver paint finish- -See box A- -Modis code STANDARD
|
$1,335.95
|
|
|
1
|
327806
|
2
|
Rear Wheel 10-5Jx20; 10.5J X 20"- -Cast- chrome paint finish- -See box B- -Modis code RICS
|
$1,996.06
|
|
|
1
|
327800
|
2
|
Rear Wheel; 10.5J X 20"- -Forged- chrome paint finish- -See box C- -Modis code RMSV
|
$5,322.03
|
|
|
1
|
327113
|
2
|
Rear Wheel; 10.5J X 20"- -Forged- diamond cut- -See box D- -Modis code RSFD
|
$6,283.82
|
|
|
1
|
327109
|
2
|
Rear Wheel; 10.5J X 20"- -Forged painted matt Corsa grey- -See box E- -Modis code RIFS
|
$5,322.03
|
|
|
2
|
247702
|
20
|
Wheel Bolt L50.5-26.5F; After depletion- for vehicles up to Assembly No. 155616- order Kit P/N 70006039 and replace all stud bolts- -Applicable up to Ass. No. 155616- -Applicable until depletion
|
|
Superseded
|
|
2
|
70006039
|
1
|
Wheel Stud Kit; Applicable up to Ass. No. 155616
|
$512.58
|
|
|
2
|
803384
|
20
|
Wheel Bolt L50-5-26; Applicable from Ass. No. 155617
|
$28.47
|
|
|
3
|
185328
|
4
|
Tire Valve
|
$23.45
|
|
|
4
|
11096693
|
0
|
Adhesive Wheel Balancer Weight
|
$14.66
|
|
|
5
|
340066
|
4
|
Wheel Centre Cap
|
$115.00
|
|
|
6
|
314818
|
4
|
Tpms Wheel Sensor Gen 3.8 / 433MHz; Not for J
|
$218.66
|
|
|
6
|
314821
|
4
|
Tire Pressure Monitoring Sys; Applicable for J
|
$217.57
|
|
|
7
|
240241
|
1
|
Spare Wheel Rim 4.5Jx20"; 4.5J X 20"- -Version with spare wheel- -Not for CINA
|
$3,270.15
|
|
|
7
|
240241
|
1
|
Spare Wheel Rim 4.5Jx20"; 4.5J X 20"- -Version with spare wheel- -Applicable for CINA- -Applicable up to Ass. No. 158094
|
$3,270.15
|
|
|
8
|
317250104
|
1
|
Tire Valve; Version with spare wheel- -Not for CINA
|
$19.87
|
|
|
8
|
317250104
|
1
|
Tire Valve; Version with spare wheel- -Applicable for CINA- -Applicable up to Ass. No. 158094
|
$19.87
|
|

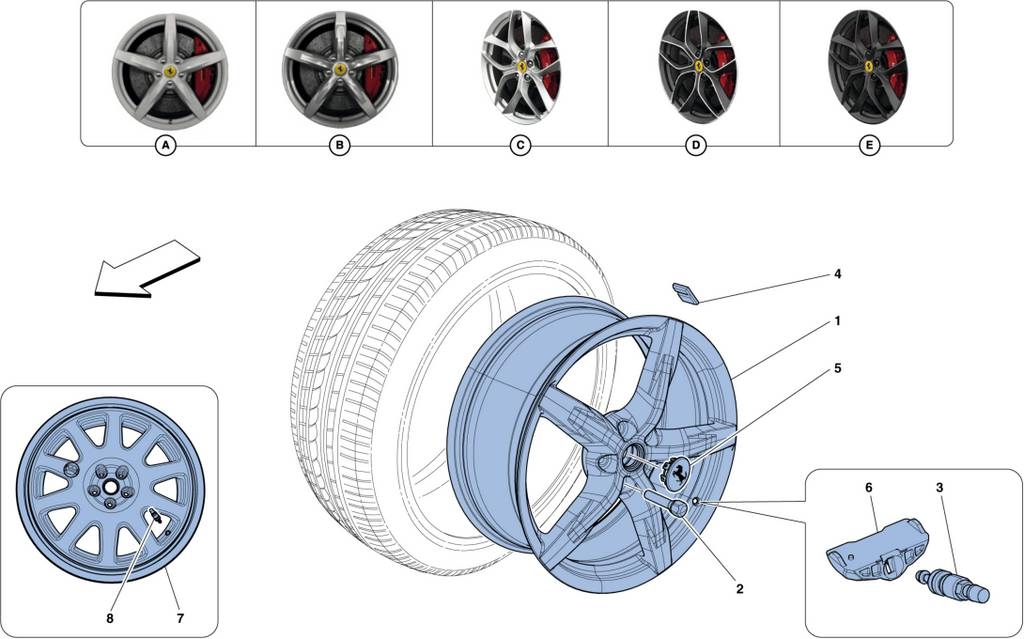

* Quantity shown indicates the number of pieces used in the diagram.
