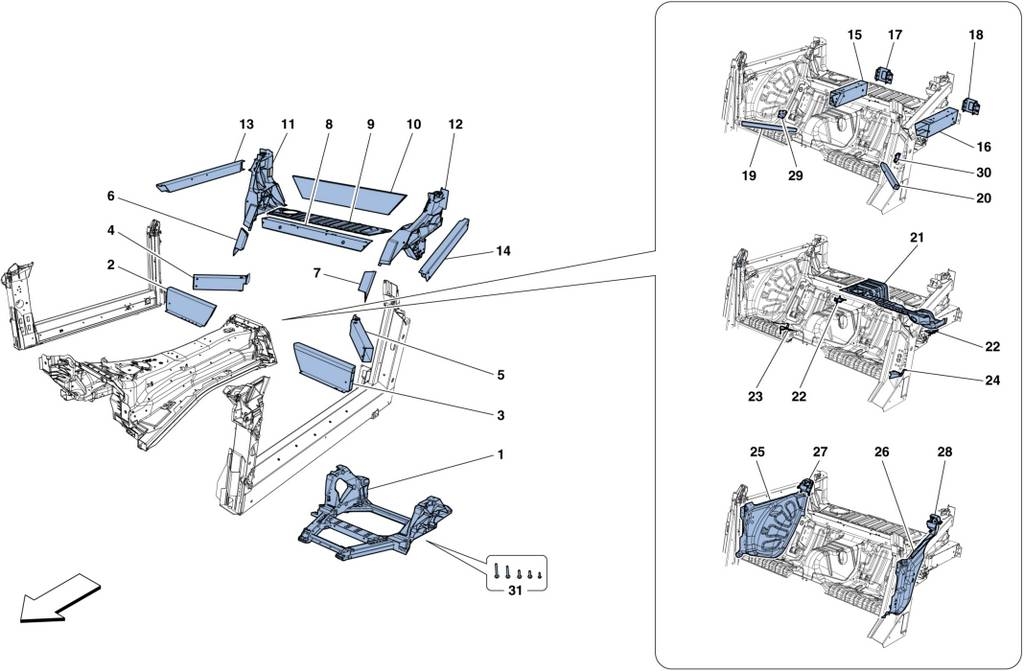

CHASSIS - STRUCTURES REAR

Go to Split View

CHASSIS - STRUCTURES REAR

Location Part # Quantity* Description Price Add To Cart
1 321996 1 Rear Subframe $16,523.11
2 276482 1 RH Lower Rear Floor Cross-Piece $444.87
3 276481 1 LH Lower Rear Floor Cross-Piece $495.60
4 322027 1 Lower RH Rear Diagonal Brace $775.32
5 322026 1 Lower LH Rear Diagonal Brace $775.32
6 322022 1 RH Rear Seat Base Upright $165.23
7 322023 1 LH Rear Seat Base Upright $165.23
8 326962 1 Rear Cross-Piece Of Front Strut $508.40
9 265225 1 Tank Cover $330.47
10 320735 1 Rear Crosspiece Of Rear Step $673.62
11 280366 1 RH Upper Rear Suspension Mount $9,786.76
12 280367 1 LH Upper Rear Suspension Mount Casting $9,786.76
13 322442 1 RH Upper Rear Diagonal Brace $1,906.50
14 322432 1 LH Upper Rear Diagonal Brace $1,906.50
15 312658 1 Rear RH Strut; Restricted Item; not for resale $762.62
16 312657 1 Rear LH Strut; Restricted Item; not for resale $762.62
17 281819 1 RH Rear Strut Flange Unavailable
18 281818 1 LH Rear Strut Flange Unavailable
19 322018 1 Lower RH Rear Joint Reinforcement $203.37
20 322087 1 Lower LH Rear Joint Reinforcement $203.37
21 268922 1 Rear Services Tray $1,398.12
22 265936 2 Rear Torsion Bar Mounting Bracket Unavailable
23 315047 1 RH Rear Brake Hose Fastener $63.55
24 315042 1 LH Rear Brake Hose Fastener $63.55
25 323842 1 RH Rear Wheelhouse $1,105.79
26 323838 1 LH Rear Wheelhouse $1,105.79
27 271517 1 RH Seat Latch Fastener Bracket; Restricted Item; not for resale $482.98
28 271511 1 LH Seat Latch Fastener Bracket; Restricted Item; not for resale $482.98
29 269847 1 RH Lateral Seat Belt Mounting $63.55
30 269846 1 LH Lateral Seat Belt Mounting $20.17
31 268371 2 Screw $23.32
31 239867 2 Screw 12X1 $2.60
31 268291 4 Screw $5.21
31 268294 4 Screw $5.83
31 277287 8 Screw $17.94

* Quantity shown indicates the number of pieces used in the diagram.
