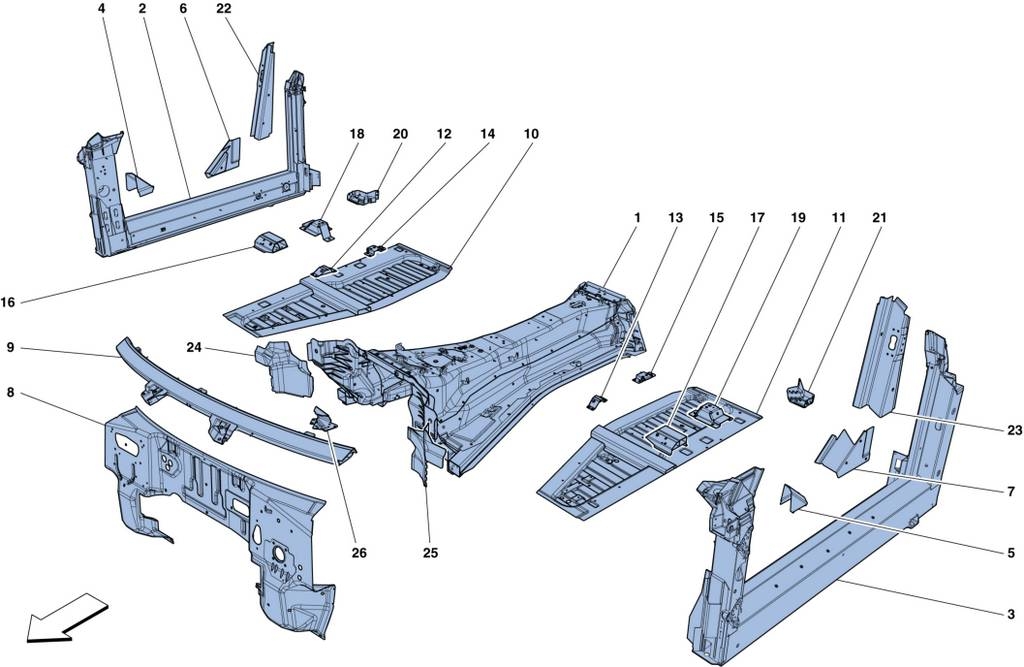

CHASSIS - STRUCTURES CENTER

Go to Split View

CHASSIS - STRUCTURES CENTER

Location Part # Quantity* Description Price Add To Cart
1 323650 1 Compl. Tunnel;Not for Right Hand Drive Vehicles $25,256.14
1 328903 1 Compl. Tunnel;Applicable for Right Hand Drive Vehicles $25,256.14
2 338433 1 RH Sill Beam Pillar Section;Not for Right Hand Drive Vehicles $10,377.02
2 338446 1 RH Sill Beam Pillar Section;Applicable for Right Hand Drive Vehicles $10,377.02
3 316953 1 LH Sill Beam Pillar Section $10,377.02
4 265590 1 RH Front Internal Truss $12.98
5 265591 1 LH Front Internal Truss $12.98
6 265597 1 RH External Pillar Truss $127.10
7 265598 1 LH External Pillar Truss $59.22
8 265560 1 Front Firewall LHD; Restricted Item; not for resale- -Not for Right Hand Drive Vehicles $1,918.41
8 272427 1 Front Firewall RHD; Restricted Item; not for resale- -Applicable for Right Hand Drive Vehicles $1,918.41
9 265549 1 Windscreen Valance Panel LHD; Restricted Item; not for resale- -Not for Right Hand Drive Vehicles $2,648.87
9 276976 1 Windscreen Valance Panel RHD; Restricted Item; not for resale- -Applicable for Right Hand Drive Vehicles $4,448.53
10 266042 1 RH Semi Floor; Restricted Item; not for resale $541.20
11 266043 1 LH Semi Floor; Restricted Item; not for resale $541.10
12 257928 1 RH Inner Front Seat Bracket $32.54
13 257930 1 LH Inner Front Seat Bracket $63.55
14 259981 1 RH Inner Rear Seat Bracket $31.65
15 259980 1 LH Inner Rear Seat Bracket $31.65
16 265601 1 RH Front Outer Seat Bracket $68.38
17 265602 1 LH Front Outer Seat Bracket $68.38
18 271343 1 RH Rear Outer Seat Bracket $381.30
19 271342 1 LH Rear Outer Seat Bracket $381.30
20 270166 1 RH Brace $127.10
21 270165 1 LH Brace $53.63
22 265595 1 RH Internal Pillar Truss $508.40
23 265596 1 LH Internal Pillar Truss $508.40
24 327690 1 RH Firewall Tunnel Reinforce $190.65
25 327689 1 LH Firewall Tunnel Reinforce $190.65
26 327636 1 RH Reinforcement Bracket $82.62

* Quantity shown indicates the number of pieces used in the diagram.
