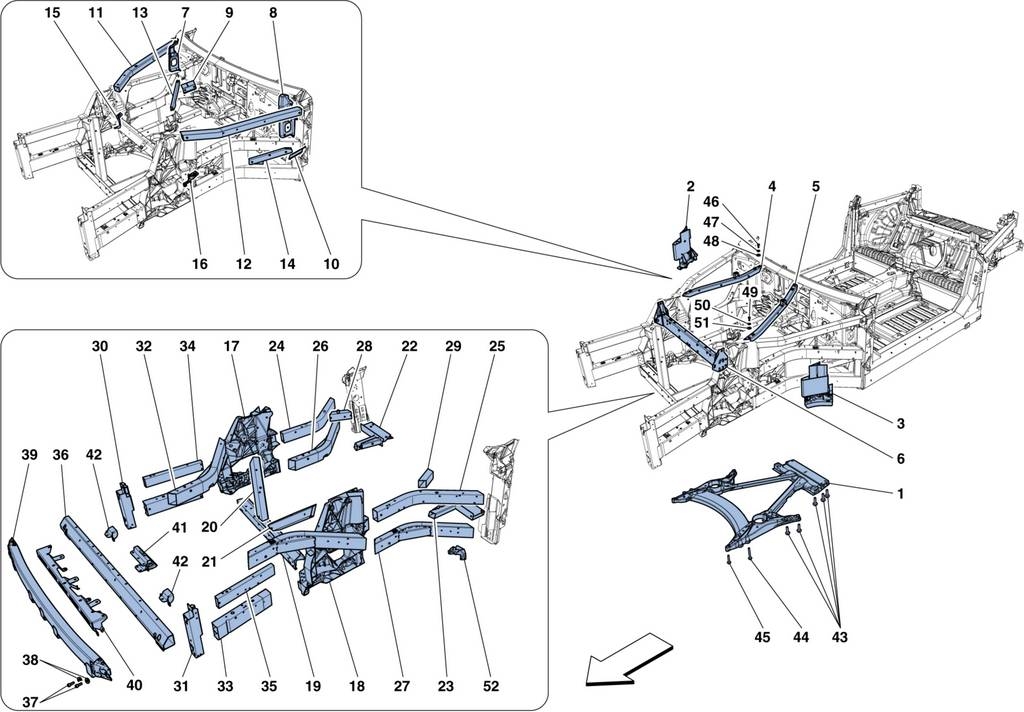

CHASSIS - STRUCTURES FRONT

Go to Split View

CHASSIS - STRUCTURES FRONT

Location Part # Quantity* Description Price Add To Cart
1 985329644 1 Engine Subframe $13,981.11
2 329748 1 RH Front Lower $1,271.00
3 329747 1 LH Front Lower $1,271.00
4 265605 1 RH Internal Engine Compartment Diagonal Brace $571.95
5 265606 1 LH Internal Engine Compartment Diagonal Brace LHD;Not for Right Hand Drive Vehicles $571.95
5 279231 1 LH Internal Engine Compartment Diagonal Brace RHD;Applicable for Right Hand Drive Vehicles $222.38
6 327775 1 Removable Strut Tower Connec $1,461.65
7 331925 1 RH Outer Firewall Endpiece $292.33
8 331922 1 LH Outer Firewall Endpiece $292.33
9 284526 1 RH Pillar Endpiece $12.98
10 284525 1 LH Pillar Endpiece $12.98
11 265295 1 RH Upper External Diagonal Firewall Brace LHD;Not for Right Hand Drive Vehicles $394.02
11 277103 1 RH Upper External Diagonal Firewall Brace RHD;Applicable for Right Hand Drive Vehicles $133.43
12 265294 1 LH Upper External Diagonal Firewall Brace LHD;Not for Right Hand Drive Vehicles $155.47
12 277102 1 LH Upper External Diagonal Firewall Brace RHD;Applicable for Right Hand Drive Vehicles $267.50
13 270672 1 Connection Between Pillar And RH Lower Front Unavailable
14 270670 1 Connection Between Pillar And LH Lower Front Unavailable
15 332021 1 RH Front Brake Bracket $39.41
16 332019 1 LH Front Brake Bracket $39.41
17 278252 1 RH Front Suspension Mount Casting LHD;Not for Right Hand Drive Vehicles $5,480.43
17 280742 1 RH Front Suspension Mount Casting RHD;Applicable for Right Hand Drive Vehicles $7,568.04
18 278251 1 LH Front Suspension Mount Casting LHD;Not for Right Hand Drive Vehicles $5,480.43
18 280741 1 LH Front Suspension Mount Casting RHD;Applicable for Right Hand Drive Vehicles $7,568.04
19 266037 1 Front Subframe Cross Member $953.25
20 265539 1 RH Front Diagonal Subframe Brace $254.20
21 265540 1 LH Front Diagonal Subframe Brace $254.20
22 327624 1 Lower RH Extrusion;Not for Right Hand Drive Vehicles $762.62
22 338753 1 Lower RH Extrusion;Applicable for Right Hand Drive Vehicles $800.74
23 327623 1 Lower LH Extrusion;Not for Right Hand Drive Vehicles $762.62
23 338752 1 Lower LH Extrusion;Applicable for Right Hand Drive Vehicles $762.62
24 265517 1 RH Central External Diagonal Firewall Brace LHD; Restricted Item; not for resale- -Not for Right Hand Drive Vehicles $264.11
24 276469 1 RH Central External Diagonal Firewall Brace RHD; Restricted Item; not for resale- -Applicable for Right Hand Drive Vehicles $160.37
25 265306 1 LH Central External Diagonal Firewall Brace LHD; Restricted Item; not for resale- -Not for Right Hand Drive Vehicles $213.91
25 274946 1 LH Central External Diagonal Firewall Brace RHD; Restricted Item; not for resale- -Applicable for Right Hand Drive Vehicles $259.50
26 327629 1 Lower RH Diagonal Firewall B $1,016.80
27 327628 1 Lower LH Diagonal Firewall B $1,016.80
28 279223 1 RH Central Internal Diagonal Firewall Brace LHD;Not for Right Hand Drive Vehicles $127.10
28 279222 1 RH Central Internal Diagonal Firewall Brace RHD;Applicable for Right Hand Drive Vehicles $30.51
29 279220 1 LH Central Internal Diagonal Firewall Brace LHD;Not for Right Hand Drive Vehicles $127.10
29 279224 1 LH Central Internal Diagonal Firewall Brace RHD;Applicable for Right Hand Drive Vehicles $69.88
30 323614 1 RH Front Crash Box Cross Mem; Restricted Item; not for resale $788.02
31 323612 1 LH Front Crash Box Cross Mem; Restricted Item; not for resale $788.02
32 323519 1 RH Lower Front Strut; Restricted Item; not for resale $546.53
33 323514 1 LH Lower Front Strut; Restricted Item; not for resale $546.53
34 265531 1 RH Upper Front Strut LHD; Restricted Item; not for resale- -Not for Right Hand Drive Vehicles $76.01
34 277101 1 RH Upper Front Strut RHD; Restricted Item; not for resale- -Applicable for Right Hand Drive Vehicles $90.24
35 265534 1 LH Upper Front Strut LHD; Restricted Item; not for resale- -Not for Right Hand Drive Vehicles $102.06
35 277100 1 LH Upper Front Strut RHD; Restricted Item; not for resale- -Applicable for Right Hand Drive Vehicles $90.24
36 88079200 1 Traversa Anteriore Paraurti $370.98
37 14814434 4 Screw 8x25 Superseded
38 12646724 4 Washer 8.45-20x2 $0.90
39 86866700 1 Lower Front Cross-Member; Restricted Item; not for resale $305.05
40 87196000 1 Traversa Balconata Paraurti $128.48
41 83839000 1 Engine Compartment Lid Hinge Mounting Bracket $98.66
42 82439800 2 Front Bracket $227.77
43 277322 10 Screw 12x50 $3.14
44 271283 2 Screw 10x70 $7.67
45 277723 2 Screw 10x55 $7.67
46 16043634 2 Screw Unavailable
46 16044434 2 Screw $2.19
47 11194074 4 Washer 8.6-16x1.9 $0.90
48 12646724 4 Washer 8.45-20x2 $0.90
49 16043634 2 Screw Unavailable
49 16044434 2 Screw $2.19
50 11194074 4 Washer 8.6-16x1.9 $0.90
51 12646724 4 Washer 8.45-20x2 $0.90
52 327635 1 LH Reinforcement Bracket $82.62
52 327636 1 RH Reinforcement Bracket $82.62

* Quantity shown indicates the number of pieces used in the diagram.
