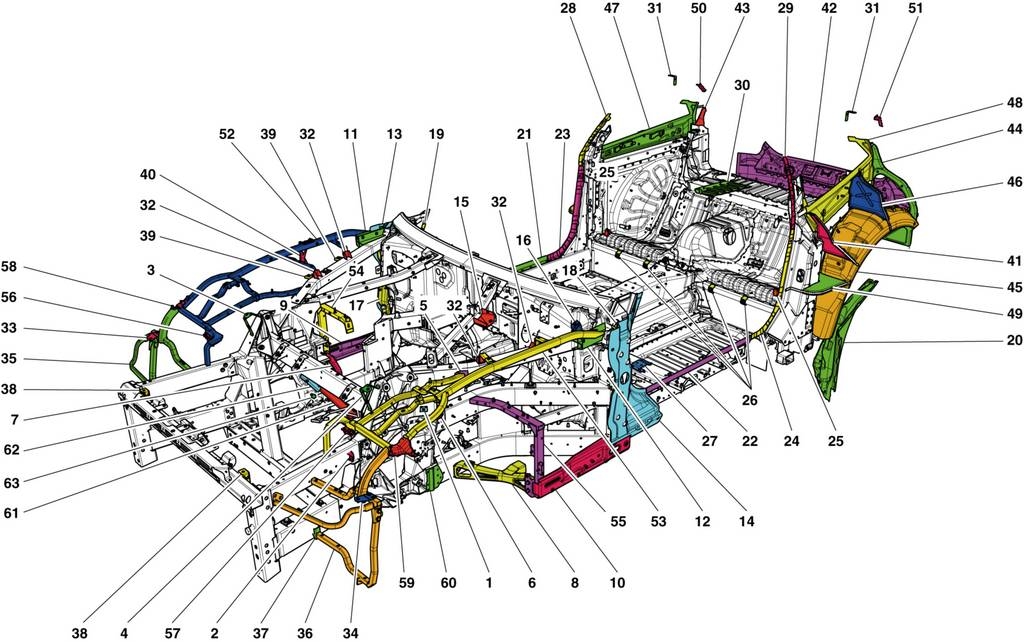

CHASSIS COMPLETION

CHASSIS COMPLETION

Location Part # Quantity* Description Price Add To Cart
1 272826 2 Accelerometer Mounting Bracket $12.20
2 271344 4 Front wheelhouse Shield Fastener Bracket $12.00
3 272931 1 RH Lateral Engine Shield Fastener $16.75
4 272930 1 LH Lateral Engine Shield Fastener $15.63
5 83557200 1 LH Front Fender Tube Mounting Internal Unavailable
5 83557100 1 RH Front Fender Tube Mounting Internal Unavailable
6 271346 1 LH Rear Wheel Bay Shield Fastener Bracket $14.39
6 271348 1 RH Rear Wheel Bay Shield Fastener Bracket $14.39
7 83783200 1 RH Rear Trellis Cross-Member; Restricted Item; not for resale Unavailable
8 83783400 1 LH Rear Trellis Cross-Member; Restricted Item; not for resale Unavailable
9 83033900 1 Lower Fastener Beam For RH Fender; Restricted Item; not for resale Unavailable
10 83034000 1 Lower Fastener Beam For LH Fender; Restricted Item; not for resale Unavailable
11 83440700 1 RH Brace $129.37
12 83440800 1 LH Brace $126.84
13 86904600 1 Controventatura Est.Montante $190.08
14 86904500 1 Controventatura Est.Montante $190.08
15 84563600 1 Central Windscreen Wiper Fastener Bracket;Not for Right Hand Drive Vehicles $31.77
15 277953 1 Central Windscreen Wiper Fas;Applicable for Right Hand Drive Vehicles $16.89
16 269274 1 LH Windscreen Wiper Fastener;Not for Right Hand Drive Vehicles $34.32
16 277951 1 RH Windscreen Wiper Fastener Bracket;Applicable for Right Hand Drive Vehicles $36.86
17 268478 1 RH Pillar Mounting Lip $86.43
18 268477 1 LH Pillar Mounting Lip $86.43
19 81656800 1 Profile Linking RH Pillar With Flank $584.50
19 81656700 1 Profile Linking LH Pillar With Flank $584.50
20 321684 1 LH Rear Soundproofing Panel $737.19
20 321686 1 RH Rear Soundproofing Panel $737.19
21 83251800 1 Lower RH Profile $52.11
22 83251900 1 Lower LH Profile $52.11
23 81668200 1 Profile Linking RH Pillar $116.94
24 81668100 1 Profile Linking LH Pillar $116.94
25 261658 2 Rear Seat Cushion Bracket $28.47
26 272141 4 Fastener Bracket For Lower R $12.32
27 253872 1 Bracket Unavailable
28 87460000 1 RH Connection $61.60
29 87459900 1 LH Connection $61.60
30 82677500 1 RH Spare Wheel Tub Filler Pa $909.22
30 86746600 1 Complet.Vasca Ruota Di Scort $218.41
31 319131 2 Upper Rear Flank Fastener Bracket $17.79
32 88268400 6 Elemento Di Colleg. Int. Ant $10.91
33 88092900 1 Outer RH Headlight Fastener $16.53
34 88092800 1 Outer LH Headlight Fastener $16.53
35 88094300 1 Front Trellis For RH Headlig $419.43
36 88094200 1 Front Trellis For LH Headlig $482.98
37 88446300 6 Collegamento Tubo Chiusura A $16.01
38 87713000 2 Staffa Ant.Fiss.Proiettore C $58.08
39 87641800 2 Staffa Fiss.Nourice A Telaio $23.76
40 87642100 1 Staffa Fiss.Nourice Cpl $64.24
41 86643700 1 Setto Lat.Centr. Su Passar. $96.80
41 86643600 1 Setto Lat.Centr. Su Passar. $96.80
42 88065200 1 Compl. Back Panel;Not for CINA- USA- CDN- GOLFO- USA LIGHT $752.63
42 88065700 1 Compl. Back Panel;Applicable for CINA- USA- CDN- GOLFO- USA LIGHT $762.62
43 86639300 1 Colleg.Chius.Mont.C A Ossat $173.36
44 86641300 1 Colleg.Chius.Mont.C A Ossat. $211.20
45 86641700 1 Passaruota Post. Sx Cpl $415.36
45 86641500 1 Passaruota Post. Dx Cpl $415.36
46 86643300 1 Paratia Laterale Est. Sx $96.80
46 86643000 1 Paratia Laterale Est. Dx $96.80
47 87357800 1 Ossatura Laterale Dxcpl; Restricted Item; not for resale $278.08
48 86643900 1 Ossatura Laterale Sx Cpl; Restricted Item; not for resale $278.08
49 86643500 1 Setto Lat.Ant. Su Passaruota $56.32
49 86643400 1 Setto Lat.Ant. Su Passaruota $56.32
50 88283300 1 Riporto Posteriore Passaruo $321.86
51 88283200 1 Riporto Posteriore Passaruo $321.86
52 88093700 1 Front RH Fender Trellis $660.92
53 88093600 1 Front LH Fender Trellis $660.92
54 88702800 1 Montante Traliccio Cs Dx;Not for Right Hand Drive Vehicles $255.20
54 88703000 1 RH Trellis Pillar;Applicable for Right Hand Drive Vehicles $279.63
55 88702400 1 Montante Traliccio Cs Sx;Not for Right Hand Drive Vehicles $255.20
55 88702900 1 LH Trellis Pillar;Applicable for Right Hand Drive Vehicles $241.48
56 88093300 1 Inner Fastener Bracket For R $27.97
57 88093200 1 Inner Fastener Bracket For L $27.97
58 86930900 1 Fender Mounting Bracket On R $63.55
59 86909900 1 Fender Mounting Bracket On L $63.55
60 327633 1 LH Lower Diagonal Brace Rein $50.85
60 327634 1 RH Lower Diagonal Brace Rein $50.85
61 331106 1 RH K-Brace $139.70
61 331102 1 LH K-Brace $139.70
62 331157 1 RH K-Brace Mounting Bracket $114.38
62 331109 1 LH K-Brace Mounting Bracket $114.38
63 16044124 2 Screw Unavailable
63 16043424 2 Bolt $0.90
63 16044424 2 Screw Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
