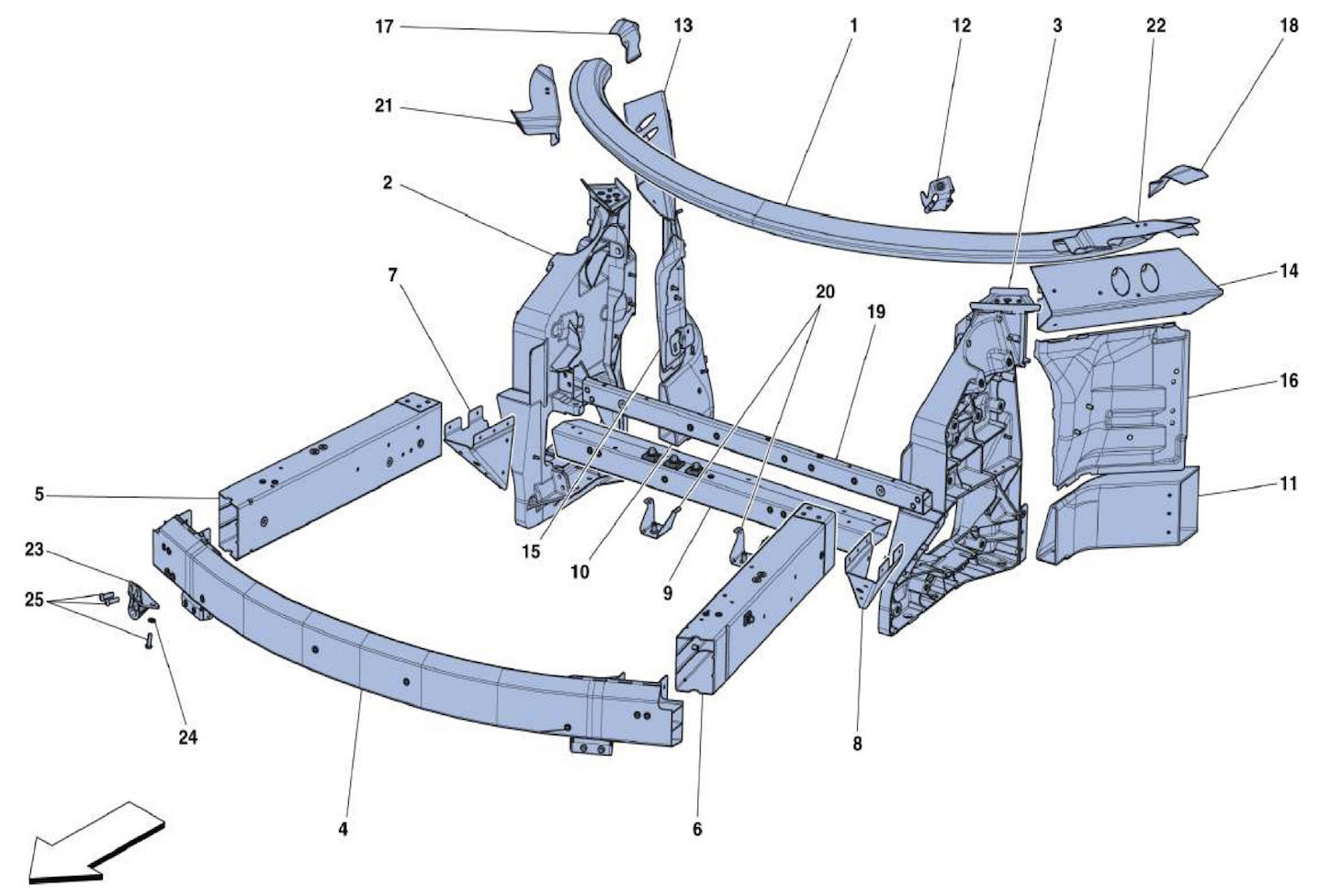

CHASSIS – FRONT ELEMENTS

Go to Split View

CHASSIS – FRONT ELEMENTS

Location Part # Quantity* Description Price Add To Cart
1 275628 1 WINDSCREEN VALENCE PANEL CROSSMEMBER (not available for resale)-- - ASM AUTHORITY REQUIRED $809.95
2 301013 1 RH FRONT SHOCK TOWER (not available for resale)-- - ASM AUTHORITY REQUIRED $9,719.74
3 301010 1 LH FRONT SHOCK TOWER (not available for resale)-- $9,719.74
4 322183 1 FRONT BUMPER MOUNTING CROSS MEMBER COMPLETE(not available for resale)-- Unavailable
5 312858 1 RH FRONT STRUT (not available for resale)-- Unavailable
6 312857 1 LH FRONT STRUT (not available for resale)-- Unavailable
7 244142 1 RH STRUT ANGULAR BRACE $145.29
8 244141 1 LH STRUT ANGULAR BRACE $145.29
9 307556 1 LOWER FRONT SUSPENSION CROSSMEMBER LHD-NOT FOR GD- $603.93
9 318903 1 LOWER FRONT SUSPENSION CROSSMEMBER RHD-APPLICABLE FOR GD- $648.79
10 311881 1 RH FRONT TORQUE BOX LHD (not available for resale)-- -NOT FOR GD- $1,337.26
10 323840 1 RH FRONT TORQUE BOX RHD (not available for resale)-- -APPLICABLE FOR GD- $1,542.60
11 309473 1 LH FRONT TORQUE BOX LHD (not available for resale)-- -NOT FOR GD- $1,337.26
11 318350 1 LH FRONT TORQUE BOX RHD (not available for resale)-- -APPLICABLE FOR GD- $1,542.60
12 272197 1 LH WINDSCREEN WIPER BRACKET LHD-NOT FOR GD- $49.59
12 274091 1 LH WINDSCREEN WIPER BRACKET RHD-APPLICABLE FOR GD- $64.82
13 270833 1 RH UPPER FRONT DIAGONAL BRACE (not available for resale)-- - SAT AUTHORITY REQUIRED $388.93
14 270834 1 UPPER FRONT DIAGONAL BRACE (not available for resale)-- - SAT AUTHORITY REQUIRED $373.83
15 313290 1 RH FRONT WHEEL BAY COVER PANEL COMPLETE LHD (not available for resale)-- -NOT FOR GD- $319.22
15 323870 1 RH FRONT WHEEL BAY COVER PANEL COMPLETE RHD (not available for resale)-- -APPLICABLE FOR GD- $362.36
16 313289 1 LH FRONT WHEEL BAY COVER PANEL COMPLETE LHD (not available for resale)-- -NOT FOR GD- $319.22
16 323852 1 LH FRONT WHEEL BAY COVER PANEL COMPLETE RHD (not available for resale)-- -APPLICABLE FOR GD- $362.36
17 270832 1 RH WINDSCREEN VALENCE PANEL FASTENER BRACKET $251.76
18 270831 1 LH WINDSCREEN VALENCE PANEL FASTENER BRACKET $251.76
19 316516 1 CASTING LINK CROSS MEMBER LHD-NOT FOR GD- Unavailable
19 324774 1 CASTING LINK CROSS MEMBER RHD-APPLICABLE FOR GD- Unavailable
20 265090 2 BRACKET $36.75
21 320817 1 RH DIAGONAL WINDSCREEN VALANCE PANEL ENDPIECE $664.32
22 320816 1 LH DIAGONAL WINDSCREEN VALANCE PANEL ENDPIECE $664.32
23 290233 1 TOW HOOK BRACKET COMPLETE Unavailable
24 290236 2 SPACER $9.60
25 85633900 4 SCREW $9.97

* Quantity shown indicates the number of pieces used in the diagram.
