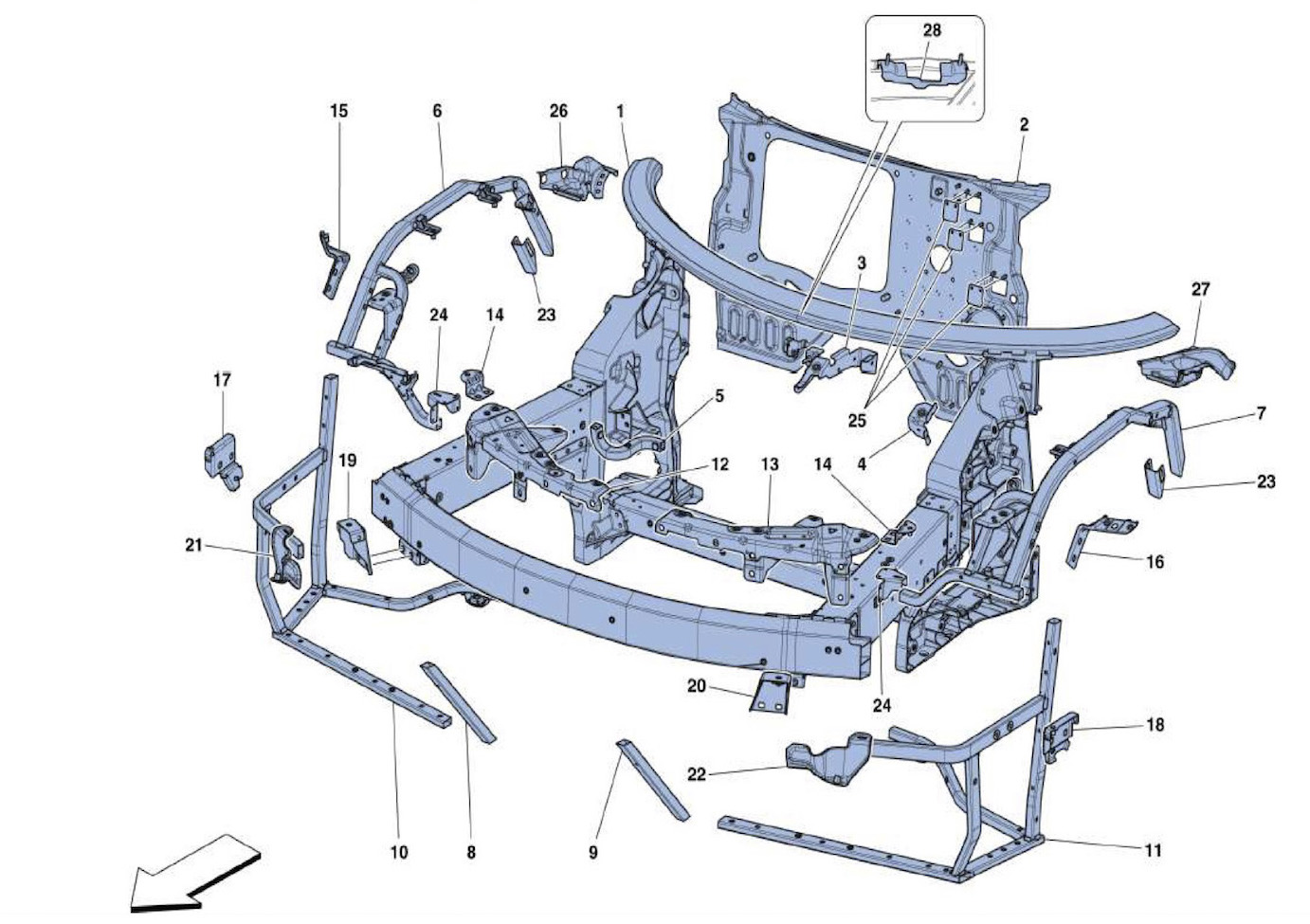

CHASSIS – FRONT STRUCTURE

Go to Split View

CHASSIS – FRONT STRUCTURE

Location Part # Quantity* Description Price Add To Cart
1 985300623 1 FRONT SUBFRAME LHD(not available for resale)-- -NOT FOR GD- $20,723.95
1 985319021 1 FRONT SUBFRAME RHD(not available for resale)-- -APPLICABLE FOR GD- -NO LONGER SUPPLIED- -REPLACED BY 985321076- Unavailable
1 985321076 1 FRONT SUBFRAME RHD (not available for resale)-- -APPLICABLE FOR GD- $20,723.95
2 306748 1 FRONT FIREWALL LHD-NOT FOR GD- $1,621.97
2 301348 1 FRONT FIREWALL RHD-APPLICABLE FOR GD- $2,182.76
3 272196 1 WINDSCREEN WIPER SPINDLE BRACKET LHD-NOT FOR GD- $47.35
3 274092 1 WINDSCREEN WIPER SPINDLE BRACKET RHD-APPLICABLE FOR GD- $51.87
4 256207 1 WINDSCREEN WIPER MOTOR MOUNTING BRACKET LHD-NOT FOR GD- $32.91
4 263064 1 WINDSCREEN WIPER MOTOR MOUNTING BRACKET RHD-APPLICABLE FOR GD- $32.91
5 84652700 1 LH LUGGAGE COMPARTMENT TUBE BRACKET $311.99
5 84652800 1 RH LUGGAGE COMPARTMENT TUBE BRACKET $311.99
6 87524600 1 RH BUMPER MOUNTING COMPLETE $413.08
7 87524500 1 LH BUMPER MOUNTING COMPLETE $396.26
8 86106900 1 RH TRELLIS CONNECTION $39.06
9 86106800 1 LH TRELLIS CONNECTION $39.06
10 86107300 1 RH FRONT SUBFRAME $403.93
11 86107200 1 LH FRONT SUBFRAME $403.93
12 86109500 1 RH BUMPER FASTENER BRACKET $154.56
13 86109400 1 LH BUMPER FASTENER BRACKET $154.56
14 86549800 2 INTERNAL HEADLIGHT FASTENER $14.67
15 86359000 1 RH EXTERNAL BUMPER FASTENER BRACKET $31.06
16 86360000 1 LH EXTERNAL BUMPER FASTENER BRACKET $31.06
17 87345700 1 RH BRACKET $43.08
18 87345600 1 LH BRACKET $43.08
19 87346300 1 RH FRONT HEADLIGHT FASTENER BRACKET $43.08
20 87346200 1 LH FRONT HEADLIGHT FASTENER BRACKET $43.08
21 86110500 1 RH EXTERNAL UPPER RADIATOR MOUNTING BRACKET $34.10
22 86110400 1 LH EXTERNAL UPPER RADIATOR MOUNTING BRACKET $34.10
23 85455800 2 BRACKET FOR ADJUSTER $12.46
24 86766800 2 TRELLIS MOUNTING BRACKET $14.67
25 85533700 3 FRONT FIREWALL VENTILATION FLAP $2.66
26 87295100 1 RH UNDERWINDSCREEN TRIM BOX ELEMENT $88.00
27 87295000 1 LH UNDERWINDSCREEN TRIM BOX ELEMENT $88.00
28 322094 1 BRAKE FLUID RESERVOIR MOUNTING BRACKET COMPLETE $77.65

* Quantity shown indicates the number of pieces used in the diagram.
