CHASSIS – CENTRAL ELEMENTS

Go to Split View

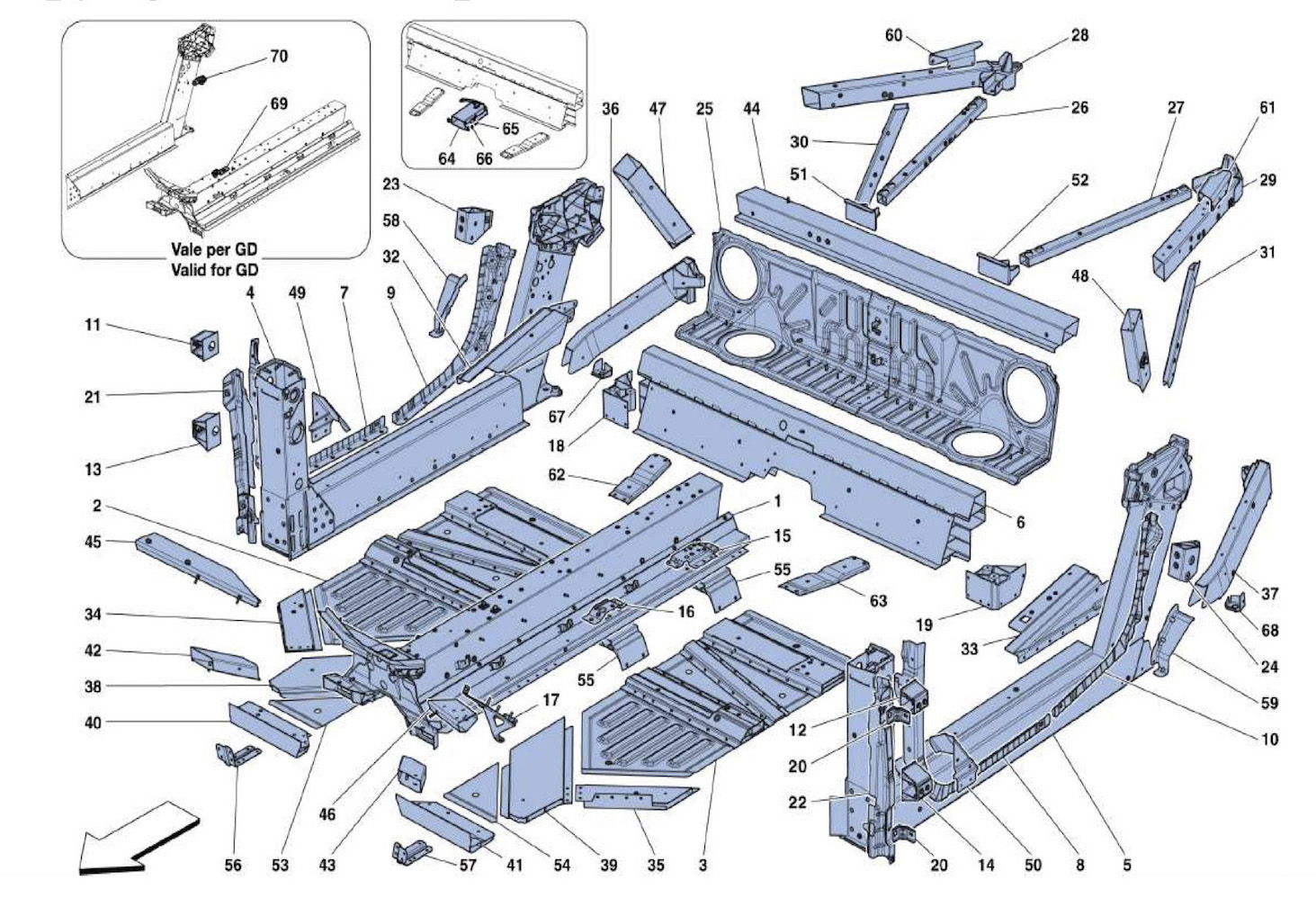

CHASSIS – CENTRAL ELEMENTS

Location Part # Quantity* Description Price Add To Cart
1 308113 1 TUNNEL COMPLETE LHD (not available for resale)-- -NOT FOR GD- $17,593.04
1 316565 1 TUNNEL COMPLETE RHD (not available for resale)-- -APPLICABLE FOR GD- $17,593.04
2 305372 1 RH HALF FLOOR PANEL COMPLETE (not available for resale)-- $1,501.19
3 305368 1 LH HALF FLOOR PANEL COMPLETE (not available for resale)-- $1,501.19
4 303819 1 RH CENTRE SIDEWALL LHD (not available for resale)-- -NOT FOR GD- $10,581.86
4 321079 1 RH CENTRE SIDEWALL RHD (not available for resale)-- -APPLICABLE FOR GD- $10,581.86
5 303818 1 LH CENTRE SIDEWALL LHD (not available for resale)-- -NOT FOR GD- $10,581.86
5 321080 1 LH CENTRE SIDEWALL RHD (not available for resale)-- -APPLICABLE FOR GD- $10,581.86
6 303845 1 SILL LINK CROSS MEMBER (not available for resale)-- $7,130.58
7 82992100 1 RH FRONT ENDPIECE $86.95
8 82992200 1 LH FRONT ENDPIECE $86.43
9 83815000 1 RH REAR ENDPIECE $103.43
10 83814700 1 LH REAR ENDPIECE $103.43
11 272633 1 RH UPPER BRACKET DOOR HINGE COMPLETE $365.10
12 272632 1 LH UPPER BRACKET DOOR HINGE REINFORCEMENT COMPLETE $365.10
13 271953 1 RH LOWER BRACKET DOOR HINGE REINFORCEMENT COMPLETE $280.98
14 271951 1 LH LOWER BRACKET DOOR HINGE REINFORCEMENT COMPLETE $280.98
15 290920 1 LH REAR SEAT FASTENER BRACKET $109.66
15 290921 1 RH REAR SEAT FASTENER BRACKET $114.61
16 262866 1 LH SEAT GUIDE RAIL FASTENER BRACKET $103.71
16 262867 1 RH SEAT GUIDE RAIL FASTENER BRACKET $103.71
17 283681 1 ACCELERATOR PEDAL FASTENER BRACKET LHD-NOT FOR GD- $82.22
17 266326 1 ACCELERATOR PEDAL FASTENER BRACKET RHD-APPLICABLE FOR GD- $137.07
18 300796 1 RH CONNECTOR PIECE EXTRUSION $2,242.96
19 300794 1 LH CONNECTOR PIECE EXTRUSION $2,242.96
20 86674700 4 LH LOWER FASTENER BRACKET FOR FRONT BUMPER $16.39
21 86675900 1 RH FRONT ELEMENT PILLAR FLANGE $107.84
22 86675800 1 LH FRONT SECTION PILLAR FLANGE $107.84
23 86744400 1 RH LOCK STRIKER REINFORCEMEN(not available for resale)-- $172.55
24 86744200 1 LH LOCK STRIKER REINFORCEMEN (not available for resale)-- $172.55
25 312054 1 REAR FIREWALL $1,311.38
26 304741 1 RH INTERNAL BOX MEMBER ON REMOVABLE SUBFRAME $353.73
27 304740 1 LH INTERNAL BOX MEMBER ON REMOVABLE SUBFRAME $353.73
28 303814 1 RH UPPER REAR DIAGONAL BRACE $3,260.87
29 303813 1 LH UPPER REAR DIAGONAL BRACE $3,260.87
30 309294 1 RH SUSPENSION CASTING BRACE $293.34
31 309293 1 LH SUSPENSION CASTING BRACE $293.34
32 303817 1 RH B-PILLAR TRUSS LHD-NOT FOR GD- $337.51
32 321082 1 RH B-PILLAR TRUSS RHD-APPLICABLE FOR GD- $389.56
33 303816 1 LH B-PILLAR TRUSS LHD-NOT FOR GD- $337.51
33 321081 1 LH B-PILLAR TRUSS RHD-APPLICABLE FOR GD- $389.56
34 303064 1 RH FLOOR LATERAL EXTRUSION $293.34
35 303062 1 LH FLOOR LATERAL EXTRUSION $293.34
36 317833 1 RH SUBFRAME CONNECTOR CRASH BOX $2,881.59
37 317829 1 LH SUBFRAME CONNECTOR CRASH BOX $2,881.59
38 311870 1 BRACE EXTRUSION BETWEEN TORQUE BOX AND RH TUNNEL LHD-NOT FOR GD- $405.49
38 316704 1 BRACE EXTRUSION BETWEEN TORQUE BOX AND RH TUNNEL RHD-APPLICABLE FOR GD- $473.65
39 311865 1 BRACE EXTRUSION BETWEEN TORQUE BOX AND LH TUNNEL LHD-NOT FOR GD- $405.49
39 318360 1 BRACE EXTRUSION BETWEEN TORQUE BOX AND LH TUNNEL RHD-APPLICABLE FOR GD- $473.65
40 301625 1 RH FRONT CASTING LINK CROSS MEMBER $319.22
41 301624 1 LH FRONT CASTING LINK CROSS MEMBER LHD-NOT FOR GD- $319.22
41 318355 1 LH FRONT CASTING LINK CROSS MEMBER RHD-APPLICABLE FOR GD- $319.22
42 307806 1 RH LOWER DIAGONAL BRACE CONNECTED TO TUNNEL $138.04
43 307805 1 LH LOWER DIAGONAL BRACE CONNECTED TO TUNNEL $138.04
44 304462 1 FUEL TANK CROSS MEMBER-- - $3,377.33
45 307878 1 RH FRONT DIAGONAL BRACE LHD-NOT FOR GD- $293.34
45 318915 1 RH FRONT DIAGONAL BRACE RHD-APPLICABLE FOR GD- $250.20
46 307882 1 LH TUNNEL UPPER FRONT DIAGONAL BRACE LHD-NOT FOR GD- $241.57
46 318913 1 LH TUNNEL UPPER FRONT DIAGONAL BRACE RHD-APPLICABLE FOR GD- $250.20
47 308659 1 RH DOOR REAR PILLAR BRACE $379.61
48 306367 1 LH DOOR REAR PILLAR BRACE $379.61
49 305901 1 RH A-PILLAR TRUSS $130.16
50 303848 1 LH A-PILLAR TRUSS $130.16
51 304706 1 RH UPPER BELT JOINT CASTING $500.40
52 304705 1 LH UPPER BELT JOINT CASTING $500.40
53 248977 1 RH FRONT FLOOR ENDPIECE $99.68
54 248976 1 LH FRONT FLOOR ENDPIECE $99.68
55 317392 2 INTERNAL TUNNEL REINFORCEMENT $242.34
56 300895 1 RH LOWER FRONT SUSPENSION CROSS MEMBER REINFORCEMENT $45.43
57 300894 1 LH LOWER FRONT SUSPENSION CROSS MEMBER REINFORCEMENT $45.43
58 304405 1 FRONT BRACKET FASTENING RH REAR FLANK TO CHASSIS $56.94
59 304404 1 FRONT BRACKET FASTENING LH REAR FLANK TO CHASSIS $56.94
60 314153 1 RH BODYSHELL SUBFRAME MOUNTING BRACKET $558.31
61 314152 1 LH BODYSHELL SUBFRAME MOUNTING BRACKET $558.31
62 311385 1 RH FUEL PIPE GUARD PLATE $436.55
63 311384 1 LH FUEL PIPE GUARD PLATE $436.55
64 87546300 1 ENGINE BUFFER COMPLETE $193.17
65 13027024 4 SCREW Unavailable
66 10523401 4 WASHER Unavailable
67 322620 1 RH SKILLET MOUNTING BRACKET $37.96
68 322828 1 LH SKILLET MOUNTING BRACKET $37.96
69 84682900 1 ACCELEROMETER FASTENER BRACKET-APPLICABLE FOR GD- $13.46
70 84717400 1 LH FASTENER BRACKET RHD-APPLICABLE FOR GD- $9.05
70 84717500 1 RH FASTENER BRACKET RHD-APPLICABLE FOR GD- $9.05

* Quantity shown indicates the number of pieces used in the diagram.
