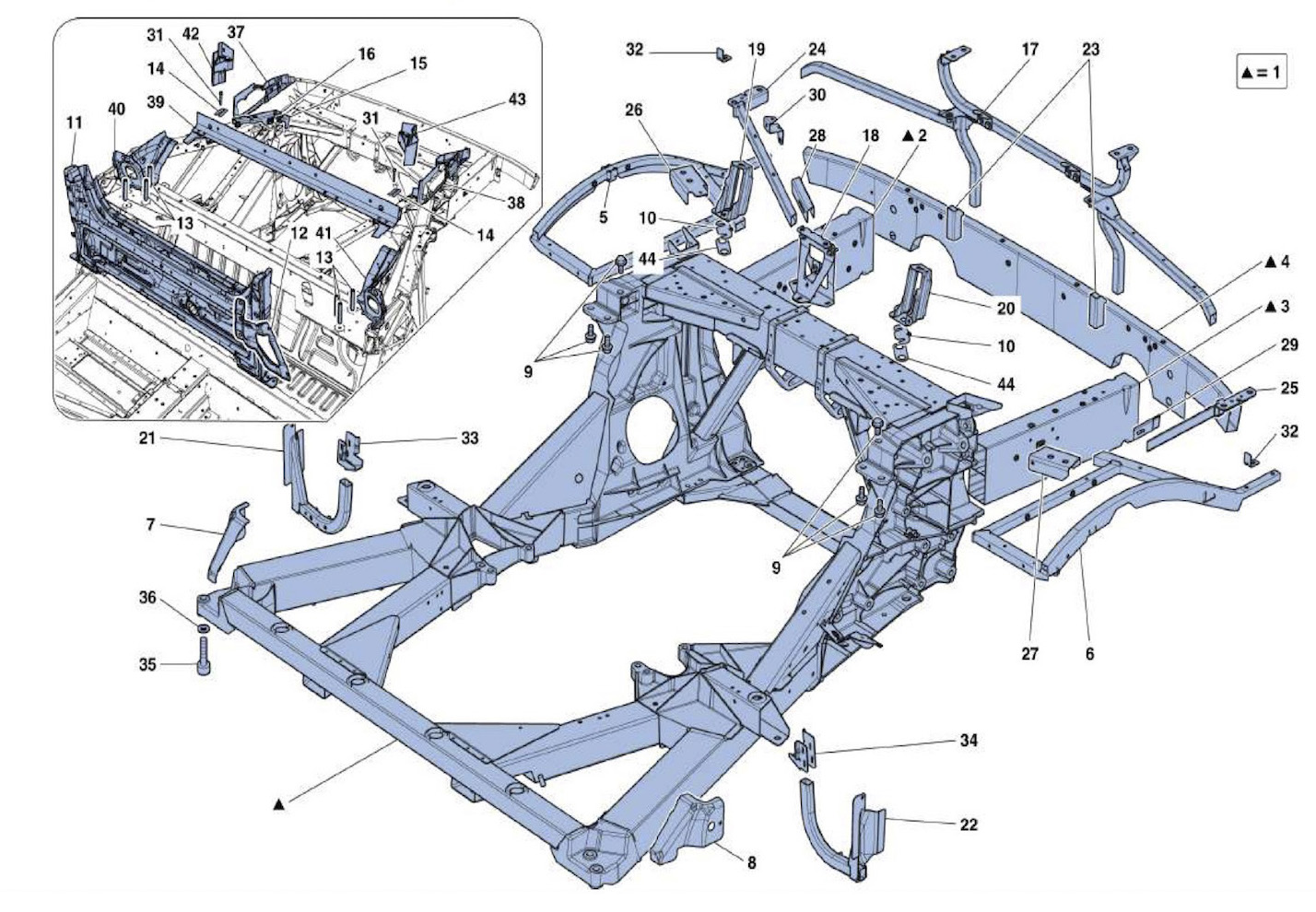

CHASSIS – REAR STRUCTURE AND ELEMENTS

Go to Split View

CHASSIS – REAR STRUCTURE AND ELEMENTS

Location Part # Quantity* Description Price Add To Cart
1 985317240 1 REAR SUBFRAME-- $20,723.95
2 305362 1 RH REAR STRUT (not available for resale)-- Unavailable
3 305361 1 LH REAR STRUT (not available for resale)-- Unavailable
4 309018 1 REAR BUMPER FASTENING CROSS MEMBER ASM AUTHORITY REQUIRED-- Unavailable
5 86674300 1 RH REAR FLANK TRELLIS Unavailable
6 86674500 1 LH REAR FLANK TRELLIS Unavailable
7 86696100 1 FRONT LOWER MOUNTING BRACKET FOR RH FENDER $29.33
8 86695900 1 FRONT LOWER MOUNTING BRACKET FOR LH FENDER $29.33
9 239959 6 SCREW 12X175X30 $9.50
10 81905000 2 SHIM 1MM-TH. 1 MM- $4.12
10 82119700 2 SHIM 3MM-TH. 3 MM- $5.08
11 82140800 1 TUB FOR POWERED REAR SCREEN $1,641.87
12 83959100 1 LH PILLAR CONNECTOR REINFORCEMENT $46.65
12 83959000 1 RH PILLAR CONNECTOR REINFORCEMENT $46.65
13 13791321 6 SCREW $1.14
14 85584100 4 SHIM $2.70
15 86918400 1 RH AIR FILTER DUCT FASTENER $13.11
15 86918300 1 LH AIR FILTER DUCT FASTENER $13.11
16 87361300 1 RH BRACKET $62.98
16 87361200 1 LH BRACKET $62.98
17 86238800 1 REAR FRAME (not available for resale)-- Unavailable
18 87388600 1 ENGINE COMPARTMENT LID LOCK BRACKET $58.70
19 86495800 1 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH-APPLICABLE UP TO ASS. NO. 133468- $388.93
19 87915900 1 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH-APPLICABLE FROM ASS. NO. 133469- - APPLICABLE FROM ASS. NO. 133469 $388.93
20 86495700 1 LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH $388.93
21 87441800 1 RH INTERCOOLER SUPPORT TUBE-APPLICABLE UP TO ASS. NO. 131954- $453.77
21 87762300 1 RH INTERCOOLER SUPPORT PIPE-APPLICABLE FROM ASS. NO. 131955- $210.72
22 87442000 1 LH INTERCOOLER SUPPORT TUBE-APPLICABLE UP TO ASS. NO. 131954- $453.77
22 87762200 1 LH INTERCOOLER SUPPORT PIPE-APPLICABLE FROM ASS. NO. 131955- $179.56
23 86743600 2 BRACKET FOR REAR ADJUSTER $16.39
24 86439300 1 LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS $46.59
25 86439100 1 LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS $46.59
26 86675600 1 RH UPPER REAR TRELLIS MOUNTING BRACKET $25.88
27 86675700 1 LH UPPER REAR TRELLIS MOUNTING BRACKET $25.88
28 86743500 1 RH LATERAL ADJUSTER BRACKET $15.53
29 86743400 1 LH LATERAL ADJUSTER BRACKET $15.53
30 87168900 1 RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET $9.49
31 231630 4 SCREW 8X65 $1.20
32 86634500 2 HEADLIGHT MOUNTING BRACKET $9.16
33 321394 1 LH REAR SUBSTRUCTURE MOUNTING BRACKET $86.28
34 321393 1 LH REAR SUBSTRUCTURE MOUNTING BRACKET $86.28
35 239965 4 SCREW $53.77
36 10520004 4 WASHER $7.48
37 86627800 1 RH REAR MOUNTING BRACKET $162.20
38 86627400 1 LH REAR MOUNTING BRACKET $162.20
39 86879600 1 REAR ROOF TUB CROSS MEMBER $485.97
40 83229400 1 RH FRONT ROOF TUB BRACKET $90.95
41 83229500 1 LH FRONT ROOF TUB BRACKET $90.97
42 83739000 1 RH VERTICAL EXTRUDED ELEMENT $206.20
43 86919100 1 LH VERTICAL EXTRUDED ELEMENT $206.20
44 81905100 2 SPACER $2.07

* Quantity shown indicates the number of pieces used in the diagram.
