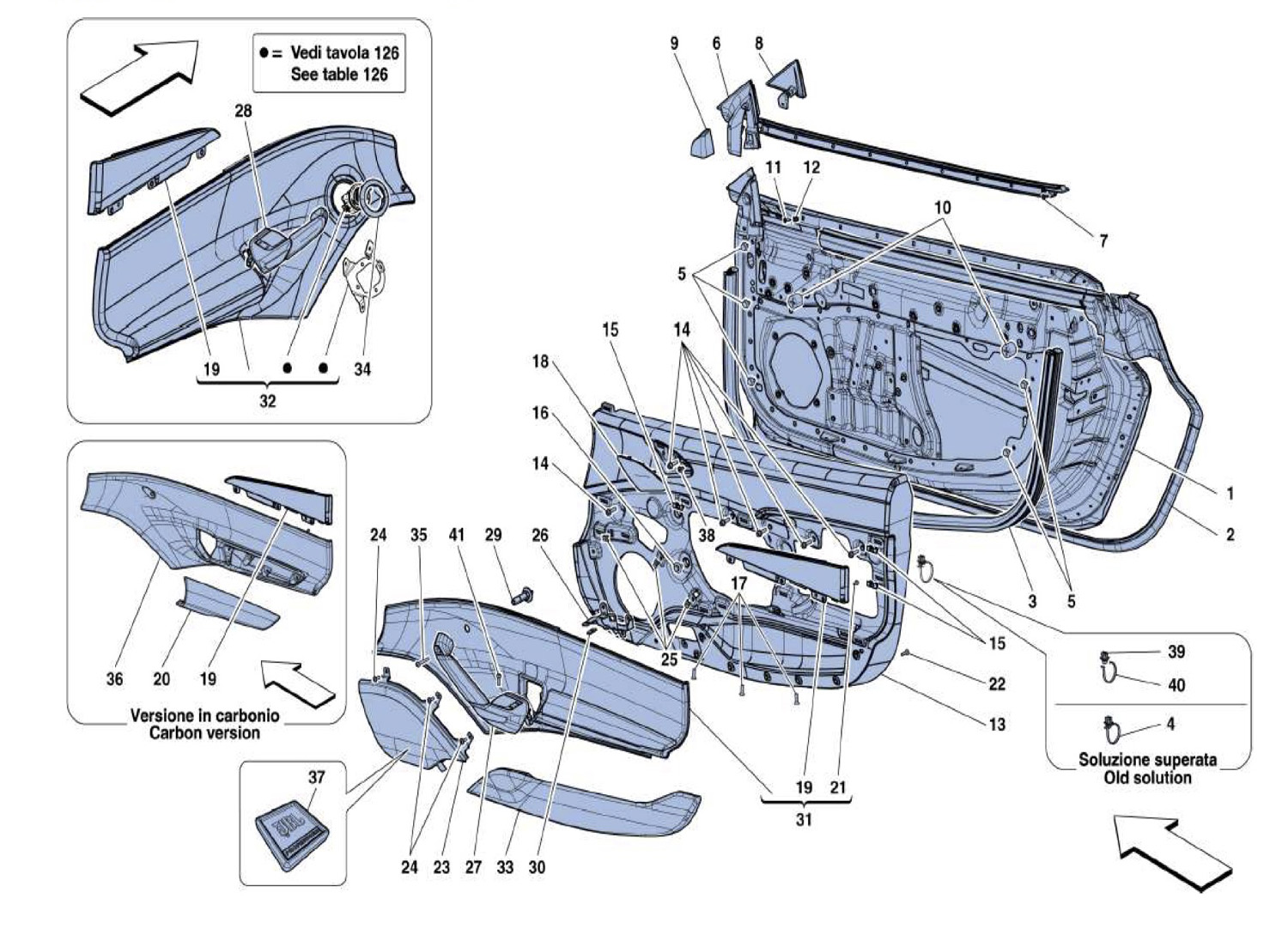

DOORS – STRUCTURE AND TRIMS
Location |
Part # |
Quantity* |
Description |
Price |
Add To Cart |
1
|
86087511
|
1
|
COMPL. RH DOOR STRUCTURE -Not for GD-
|
$5,888.28
|
|
1
|
86885511
|
1
|
COMPL. RH DOOR STRUCTURE -Applicable for GD-
|
$6,214.38
|
|
1
|
86087611
|
1
|
COMPL. LH DOOR STRUCTURE -Not for GD-
|
$5,888.28
|
|
1
|
86885411
|
1
|
COMPL. LH DOOR STRUCTURE -Applicable for GD-
|
$6,525.11
|
|
2
|
86743100
|
1
|
RH DOOR INNER PERIMETER SEAL
|
$397.05
|
|
2
|
86743000
|
1
|
LH DOOR INNER PERIMETER SEAL
|
$416.90
|
|
3
|
83987400
|
2
|
LOWER SEAL
|
$162.54
|
|
4
|
69708300
|
2
|
CLIP -No longer supplied-
|
$1.56
|
|
5
|
82672700
|
10
|
CLIP
|
$1.06
|
|
5
|
86004700
|
2
|
CLIP
|
|
Unavailable
|
6
|
86742900
|
1
|
RH DOOR OUTER PERIMETER SEAL
|
$337.91
|
|
6
|
86742800
|
1
|
LH DOOR OUTER PERIMETER SEAL
|
$354.80
|
|
7
|
63343400
|
2
|
SCREW
|
$3.17
|
|
8
|
81486300
|
1
|
RH DOOR CORNER TRIANGLE
|
$127.77
|
|
8
|
81486500
|
1
|
LH DOOR CORNER TRIANGLE
|
$127.77
|
|
9
|
86726400
|
1
|
RH DOOR INNER CORNER TRIANGLE TRIM
|
$42.18
|
|
9
|
86716600
|
1
|
LH DOOR INNER CORNER TRIANGLE TRIM
|
$42.18
|
|
10
|
83888400
|
4
|
DOOR ALIGNMENT FOAM PAD
|
|
Unavailable
|
11
|
15689801
|
16
|
SCREW
|
|
Unavailable
|
12
|
14115885
|
16
|
BLOCK
|
|
Unavailable
|
13
|
86155000
|
1
|
RH DOOR PANEL -INTP- -Leather- -Standard- -No longer supplied- -Replaced by 87821200-
|
|
Unavailable
|
13
|
87821212
|
1
|
RH DOOR PANEL -INTP- -Leather- -Standard-
|
$5,581.38
|
|
13
|
87820800
|
1
|
RH DOOR PANEL -INTP- -Leather- -High power Hi-Fi version- -No longer supplied- -Replaced by 87820800-
|
$5,315.62
|
|
13
|
87820800
|
1
|
RH DOOR PANEL -INTP- -Leather- -High power Hi-Fi version-
|
$5,315.62
|
|
13
|
86207100
|
1
|
LH DOOR PANEL -INTP- -Leather- -Standard- -No longer supplied- -Replaced by 87820500-
|
|
Unavailable
|
13
|
87820512
|
1
|
LH DOOR PANEL -INTP- -Leather- -Standard-
|
|
Unavailable
|
13
|
87820112
|
1
|
LH DOOR PANEL -INTP- -Leather- -High power Hi-Fi version- -No longer supplied- -Replaced by 87820100-
|
$5,315.62
|
|
13
|
87820112
|
1
|
LH DOOR PANEL -INTP- -Leather- -High power Hi-Fi version-
|
$5,315.62
|
|
14
|
231620
|
12
|
SCREW -M6 X 25-
|
|
Unavailable
|
15
|
68700200
|
38
|
CLIP -No longer supplied-
|
|
Unavailable
|
16
|
81290900
|
2
|
SCREW
|
|
Unavailable
|
17
|
14441434
|
6
|
SCREW
|
|
Unavailable
|
18
|
87514200
|
1
|
RH TWEETER SURROUND -Applicable up to Ass. No. 133502-
|
$122.08
|
|
18
|
87364300
|
1
|
RH TWEETER SURROUND -Standard- -Applicable from Ass. No. 133503-
|
$130.06
|
|
18
|
87514200
|
1
|
RH TWEETER SURROUND -High power Hi-Fi version- -Applicable from Ass. No. 133503-
|
$122.08
|
|
18
|
87514000
|
1
|
LH TWEETER SURROUND -Applicable up to Ass. No. 133502-
|
$122.08
|
|
18
|
87363700
|
1
|
LH TWEETER SURROUND -Standard- -Applicable from Ass. No. 133503-
|
$130.06
|
|
18
|
87514000
|
1
|
LH TWEETER SURROUND -High power Hi-Fi version- -Applicable from Ass. No. 133503-
|
$122.08
|
|
19
|
86917700
|
1
|
UPPER RH DOOR CARD -INTA- -Alcantara-
|
$514.32
|
|
19
|
86916412
|
1
|
LH UPPER DOOR CARD -INTA- -Alcantara-
|
$514.32
|
|
20
|
87169500
|
1
|
COMPL. RH ARMREST -INTP- -Leather- -Carbon centre door card substructure-
|
$789.89
|
|
20
|
87168012
|
1
|
COMPL. LH ARMREST -INTP- -Leather- -Carbon centre door card substructure-
|
|
Unavailable
|
21
|
65752800
|
6
|
SCREW -M4 X 10-
|
$2.66
|
|
22
|
85692300
|
16
|
SCREW -M5 X 20-
|
|
Unavailable
|
23
|
87364100
|
1
|
RH DOOR WOOFER GRILLE -Standard-
|
$197.46
|
|
23
|
87363900
|
1
|
RH DOOR WOOFER GRILLE -High power Hi-Fi version-
|
$224.40
|
|
23
|
87363500
|
1
|
LH DOOR WOOFER GRILLE -Standard-
|
$197.46
|
|
23
|
87363300
|
1
|
LH DOOR WOOFER GRILLE -High power Hi-Fi version-
|
$224.40
|
|
24
|
85833900
|
10
|
SCREW -M5 X 16-
|
|
Unavailable
|
25
|
67278400
|
10
|
BRACKET
|
|
Unavailable
|
26
|
86214900
|
1
|
RH DOOR PULL HANDLE BRACKET
|
$44.07
|
|
26
|
86215200
|
1
|
LH DOOR PULL HANDLE BRACKET
|
$44.07
|
|
27
|
86918012
|
1
|
RH DOOR PULL HANDLE -INTP- -Leather- -STC1- -STC2- -Not for GD-
|
$844.06
|
|
27
|
88278600
|
1
|
RH DOOR PULL HANDLE -INTA- -Alcantara- -STC1- -STC2- -Not for GD-
|
|
Unavailable
|
27
|
87058000
|
1
|
LH DOOR PULL HANDLE -INTP- -Leather- -STC1- -STC2- -Applicable for GD-
|
|
Unavailable
|
27
|
88328700
|
1
|
LH DOOR PULL HANDLE -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD-
|
|
Unavailable
|
28
|
86916712
|
1
|
LH DOOR PULL HANDLE -INTP- -Leather- -STC1- -STC2- -Not for GD-
|
$845.50
|
|
28
|
88278500
|
1
|
LH DOOR PULL HANDLE -INTA- -Alcantara- -STC1- -STC2- -Not for GD-
|
|
Unavailable
|
28
|
87060200
|
1
|
RH DOOR PULL HANDLE -INTP- -Leather- -STC1- -STC2- -Applicable for GD-
|
|
Unavailable
|
28
|
88329300
|
1
|
RH DOOR PULL HANDLE -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD-
|
|
Unavailable
|
29
|
87231500
|
1
|
PASSENGER SIDE GRAB HANDLE SPACER
|
$23.79
|
|
29
|
86858100
|
1
|
DRIVER SIDE GRAB HANDLE SPACER
|
|
Unavailable
|
30
|
14371279
|
2
|
BRACKET
|
$2.98
|
|
31
|
86916912
|
1
|
RH DOOR CARD -INTP- -Leather- -STC1- -STC2- -Not for GD-
|
$3,313.95
|
|
31
|
87057312
|
1
|
RH DOOR CARD -INTP- -Leather- -STC1- -STC2- -Applicable for GD-
|
$3,313.95
|
|
31
|
87312500
|
1
|
RH DOOR CARD -INTA- -Alcantara- -STC1- -STC2- -Not for GD-
|
|
Unavailable
|
31
|
87316400
|
1
|
RH DOOR CARD -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD-
|
$3,898.78
|
|
31
|
87170500
|
1
|
RH DOOR CARD -Carbon- -Not for GD- -No longer supplied-
|
|
Unavailable
|
32
|
86915712
|
1
|
LH DOOR CARD -INTP- -Leather- -STC1- -STC2- -Not for GD-
|
$3,313.95
|
|
32
|
87051700
|
1
|
LH DOOR CARD -INTP- -Leather- -STC1- -STC2- -Applicable for GD-
|
|
Unavailable
|
32
|
87310700
|
1
|
LH DOOR CARD -INTA- -Alcantara- -STC1- -STC2- -Not for GD-
|
|
Unavailable
|
32
|
87315600
|
1
|
LH DOOR CARD -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD-
|
|
Unavailable
|
32
|
87168500
|
1
|
LH DOOR CARD -Carbon- -Not for GD- -No longer supplied-
|
|
Unavailable
|
33
|
86160700
|
1
|
RH DOOR PANEL POCKET. -INTP- -Leather- -STC1- -STC2- -Not for GD- -Applicable until depletion-
|
|
Unavailable
|
33
|
87873012
|
1
|
RH DOOR PANEL POCKET. -INTP- -Leather- -STC1- -STC2- -Not for GD- -Applicable after depletion of 86160700-
|
$837.27
|
|
33
|
87055000
|
1
|
RH DOOR PANEL POCKET. -INTP- -Leather- -STC1- -STC2- -Applicable for GD- -Applicable until depletion-
|
|
Unavailable
|
33
|
87873800
|
1
|
RH DOOR PANEL POCKET. -INTP- -Leather- -STC1- -STC2- -Applicable for GD- -Applicable after depletion of 87055000-
|
|
Unavailable
|
33
|
87312200
|
1
|
RH DOOR PANEL POCKET. -INTA- -Alcantara- -STC1- -STC2- -Not for GD- -Applicable until depletion-
|
|
Unavailable
|
33
|
87873400
|
1
|
RH DOOR PANEL POCKET. -INTA- -Alcantara- -STC1- -STC2- -Not for GD- -Applicable after depletion of 87312200-
|
|
Unavailable
|
33
|
87316100
|
1
|
RH DOOR PANEL POCKET. -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD- -Applicable until depletion-
|
|
Unavailable
|
33
|
87874200
|
1
|
RH DOOR PANEL POCKET. -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD- -Applicable after depletion of 87316100-
|
|
Unavailable
|
33
|
86207700
|
1
|
LH DOOR PANEL POCKET -INTP- -Leather- -STC1- -STC2- -Not for GD- -Applicable until depletion-
|
|
Unavailable
|
33
|
87872900
|
1
|
LH DOOR PANEL POCKET -INTP- -Leather- -STC1- -STC2- -Not for GD- -Applicable after depletion of 86207700-
|
$1,473.86
|
|
33
|
87049400
|
1
|
LH DOOR PANEL POCKET -INTP- -Leather- -STC1- -STC2- -Applicable for GD- -Applicable until depletion-
|
|
Unavailable
|
33
|
87873700
|
1
|
LH DOOR PANEL POCKET -INTP- -Leather- -STC1- -STC2- -Applicable for GD- -Applicable after depletion of 87049400-
|
|
Unavailable
|
33
|
87302600
|
1
|
LH DOOR PANEL POCKET -INTA- -Alcantara- -STC1- -STC2- -Not for GD- -Applicable until depletion-
|
|
Unavailable
|
33
|
87873300
|
1
|
LH DOOR PANEL POCKET -INTA- -Alcantara- -STC1- -STC2- -Not for GD- -Applicable after depletion of 87302600-
|
|
Unavailable
|
33
|
87315300
|
1
|
LH DOOR PANEL POCKET -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD- -Applicable until depletion-
|
|
Unavailable
|
33
|
87874100
|
1
|
LH DOOR PANEL POCKET -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD- -Applicable after depletion of 87315300-
|
|
Unavailable
|
34
|
86214500
|
1
|
MIRROR CONTROLS PANEL
|
$491.97
|
|
35
|
65071900
|
2
|
SCREW -M6 X 40- -No longer supplied- -Replaced by 87627200-
|
|
Superseded
|
35
|
87627200
|
2
|
SCREW -M6 X 40-
|
|
Unavailable
|
36
|
87169400
|
1
|
RH DOOR CARD SUBSTRUCTURE. -Carbon- -Not for GD-
|
$2,875.92
|
|
36
|
87465200
|
1
|
RH DOOR PANEL CARD SUBSTRUCTURE -Carbon- -Applicable for
|
$2,930.67
|
|
36
|
87167900
|
1
|
LH DOOR CARD SUBSTRUCTURE. -Carbon- -Not for GD-
|
$2,930.67
|
|
36
|
87464900
|
1
|
LH DOOR PANEL CARD SUBSTRUCTURE -Carbon- -Applicable for
|
$2,875.92
|
|
37
|
83198200
|
1
|
JBL LOGO -High power Hi-Fi version-
|
$27.20
|
|
38
|
85833700
|
2
|
SCREW -M5 X 14-
|
|
Unavailable
|
39
|
255869
|
2
|
ANGLE CLIP
|
$2.27
|
|
40
|
145854
|
2
|
RING CLAMP
|
|
Unavailable
|
41
|
86077300
|
2
|
SCREW
|
|
Unavailable
|
* Quantity shown indicates the number of pieces used in the diagram.
