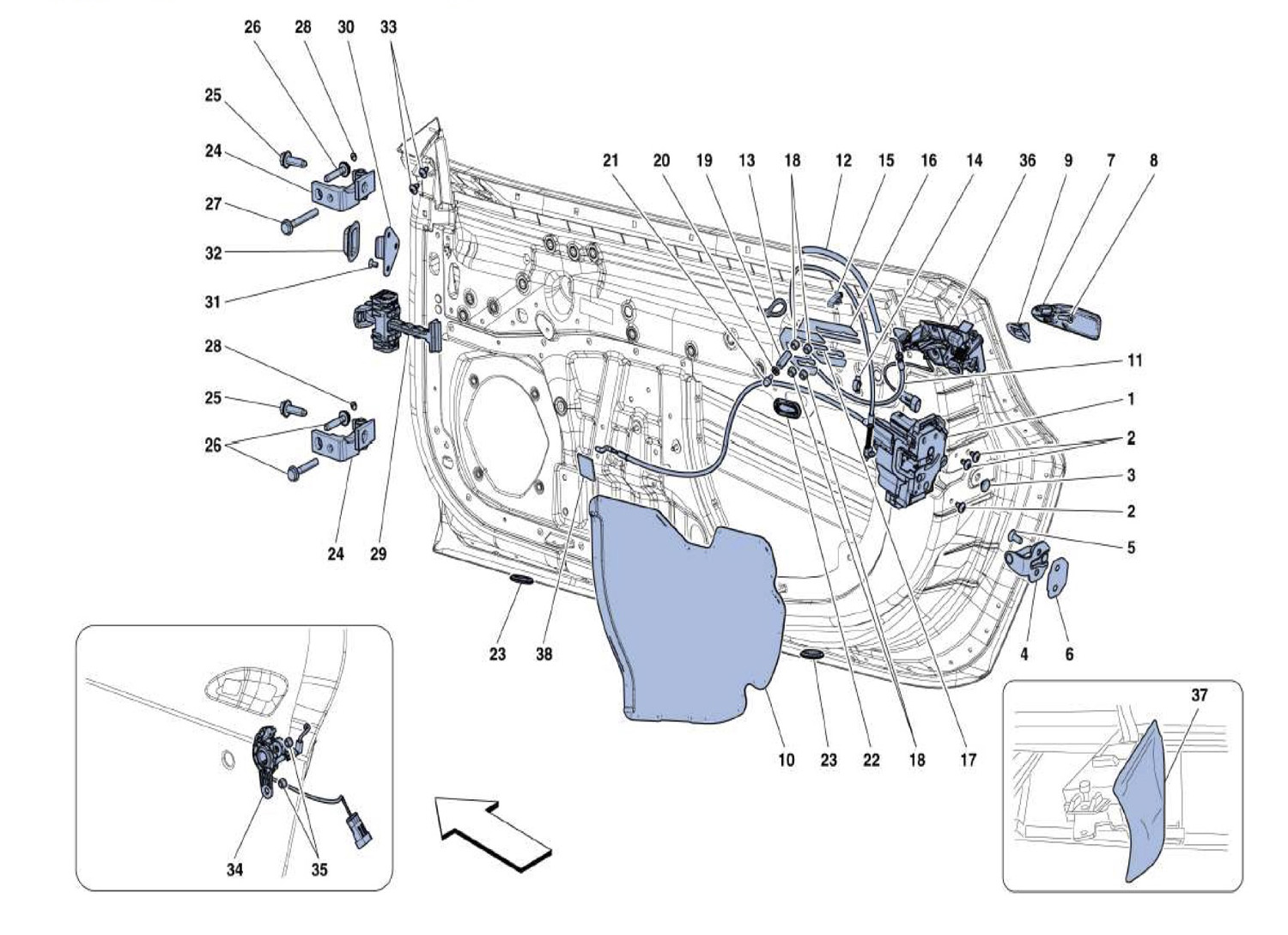

DOORS – OPENING DEVICES AND HINGES

Location Part # Quantity* Description Price Add To Cart
1 86622800 1 RH DOOR LOCK -Not for GD- Unavailable
1 86980900 1 RH DOOR LOCK -Applicable for GD- Unavailable
1 86622700 1 LH DOOR LOCK -Not for GD- Unavailable
1 86980200 1 LH DOOR LOCK -Applicable for GD- Unavailable
2 85478900 6 SCREW $1.32
3 14506587 2 CAP Unavailable
4 85052500 2 DOOR LOCK STRIKER PLATE Unavailable
5 85133400 4 SCREW Unavailable
6 85052600 6 DOOR STRIKER PLATE SHIM Unavailable
7 87217710 1 RH OUTER DOOR HANDLE $340.31
7 87217610 1 LH OUTER DOOR HANDLE $324.11
8 80365900 2 SCREW $0.90
9 87217500 1 RH DOOR HANDLE SEAL $24.85
9 87217400 1 LH DOOR HANDLE SEAL $23.67
10 86844400 1 RH WATERPROOF MEMBRANE $58.42
10 86844300 1 LH WATERPROOF MEMBRANE $58.42
11 69877100 2 BOWDEN CABLE $44.88
12 82936400 2 SHEATH Unavailable
13 69708300 2 CLIP $1.56
14 14569480 2 CLIP -No longer supplied- -Replaced by 248061- Unavailable
14 248061 2 CLIP $2.56
15 291408 2 CLIP Unavailable
16 80821900 4 DOOR HANDLE SPACER -No longer supplied- $8.08
17 83941200 2 DOOR HANDLE SPACER -No longer supplied- -Replaced by 88007300 $10.90
17 88007300 1 DOOR HANDLE SPACER $4.12
18 14059121 8 NUT Unavailable
19 87940300 2 HEXAGONAL PILLAR -No longer supplied- -Replaced by 87940300- $20.65
19 87940300 2 HEXAGONAL PILLAR $20.65
20 125516 2 WASHER -No longer supplied- $5.89
21 62239900 2 PIN $6.39
22 82629100 2 CABLE GROMMET Unavailable
23 276467 4 COVER $3.61
24 69827100 2 RH DOOR HINGE $133.55
24 69827200 2 LH DOOR HINGE $127.18
25 81267100 4 SCREW -M10 X 30- $6.68
26 18752934 6 SCREW -M8 X 40- Unavailable
27 18753134 2 SCREW -M8 X 50- $1.30
28 84111900 4 GRUB SCREW $6.80
29 81486000 2 DOOR ARRESTER TIE-ROD $56.09
30 81916400 2 DOOR SAFETY HOOK $54.24
31 14441234 6 SCREW Unavailable
32 81916500 2 DOOR SAFETY HOOK CAP $6.07
33 46401657 4 SCREW Unavailable
34 86690400 1 LATCH HOLDER -Not for GD- $162.48
34 86985800 1 LATCH HOLDER -Applicable for GD- $162.48
35 14059121 2 NUT Unavailable
36 87290700 1 RH OUTER DOOR HANDLE MODULE $235.62
36 87290600 1 LH OUTER DOOR HANDLE MODULE $224.40
37 83595900 1 WATERPROOF MEMBRANE $282.07
38 86481600 2 GASKET Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
