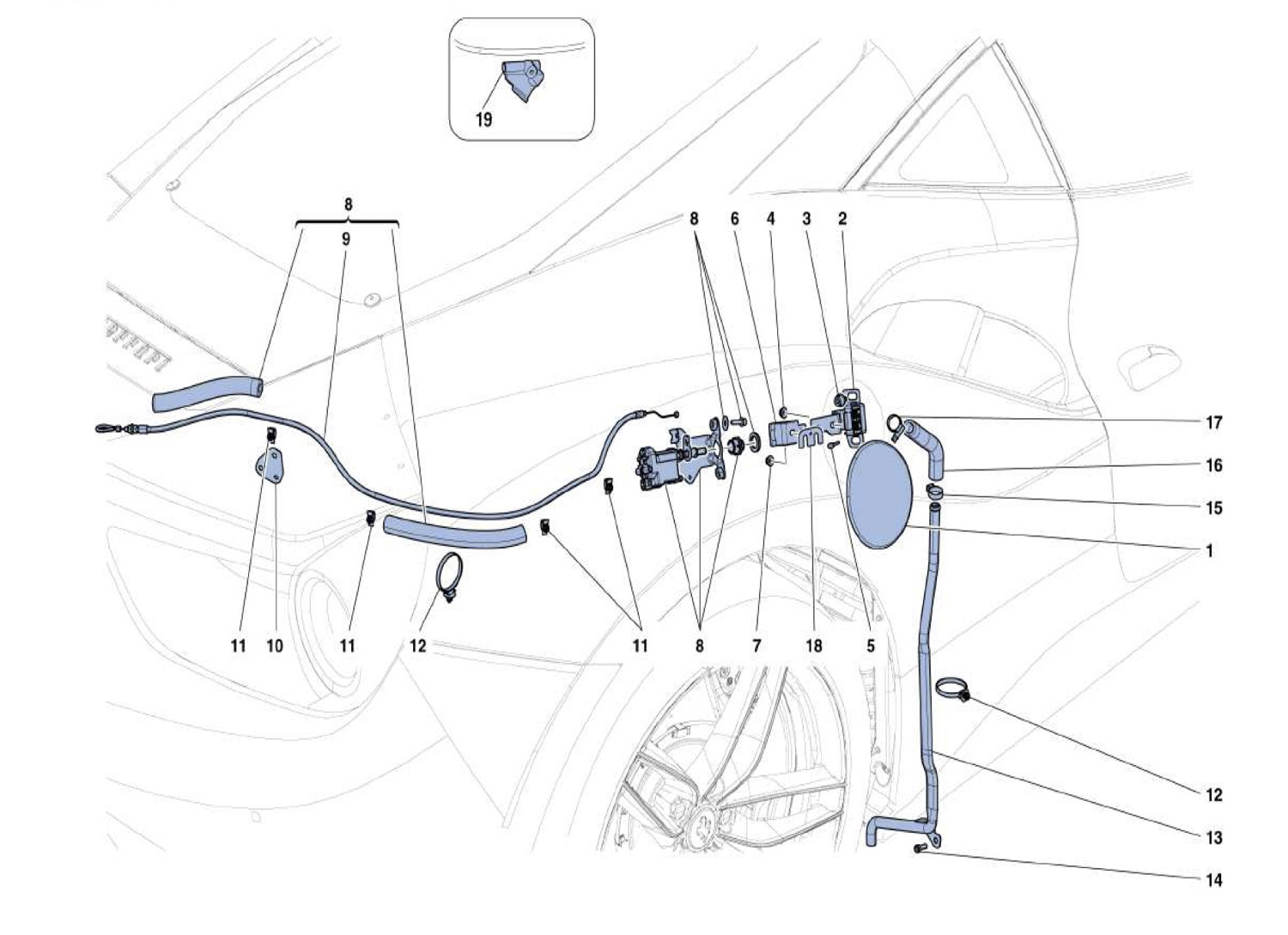

FUEL FILLER DOOR AND CONTROLS

Go to Split View

FUEL FILLER DOOR AND CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 86621411 1 FUEL FILLER FLAP -Standard- Unavailable
1 86937800 1 FUEL FILLER FLAP -Carbon- Unavailable
2 86478900 1 COMPL. HINGE Unavailable
3 85158100 2 SCREW $1.46
4 14059111 2 NUT Unavailable
5 81802300 1 RUBBER PAD $5.00
6 82249400 1 STRIKER PLATE $7.77
7 14059111 1 NUT Unavailable
8 86881700 1 COMPL. FUEL FILLER FLAP ACTUATOR $185.85
9 86934400 1 FUEL FILLER FLAP BOWDEN CABLE $324.11
10 87337300 1 FUEL FILLER FLAP BOWDEN CABLE BRACKET Unavailable
11 14569480 4 CLIP Unavailable
12 217854 3 CLIP Unavailable
13 87550700 1 RIGID FUEL DRAIN PIPE $367.13
14 13027024 1 SCREW Unavailable
15 13433570 1 COLLAR Unavailable
16 87550800 1 RUBBER HOSE UNION $129.74
17 161490 1 COLLAR $2.35
18 81619400 1 SPACER $5.03
19 87950100 1 ACTUATOR CHORD CABLE GROMMET $7.45

* Quantity shown indicates the number of pieces used in the diagram.
