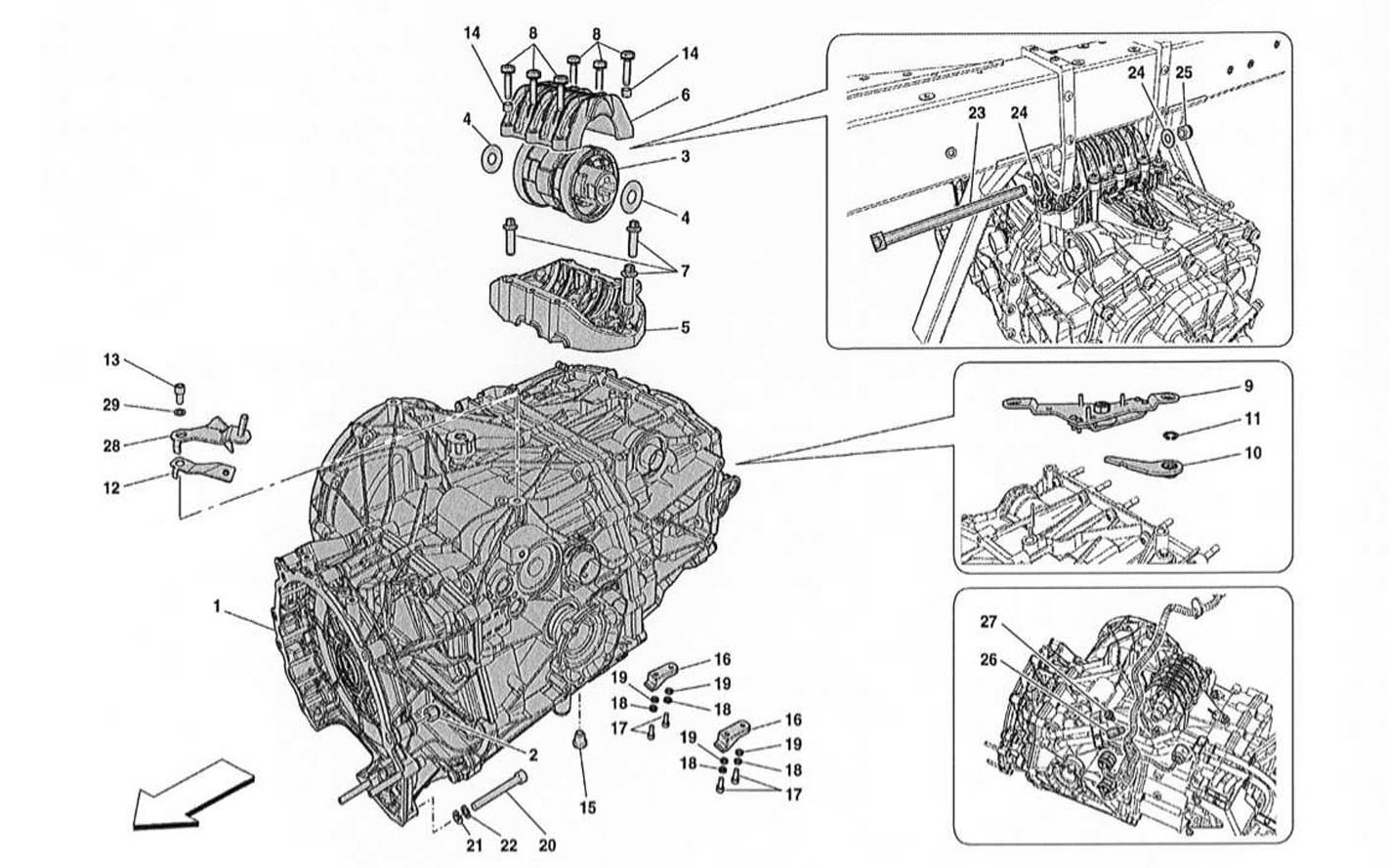

GEARBOX HOUSINGS

Go to Split View

GEARBOX HOUSINGS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 263938 *Qty: 1 COMPL. DUAL CLUTCH GEARBOX -Not available for sale- Call
Location: 2 Prev | Next Part: 14059421 *Qty: 7 NUT $0.90
Location: 3 Prev | Next Part: 247723 *Qty: 1 VIBRATION DAMPER $243.57
Location: 4 Prev | Next Part: 255731 *Qty: 2 SHIM -Th. 0.4 mm- $4.33
Location: 4 Prev | Next Part: 255732 *Qty: 2 SHIM -Th. 1 mm- $4.69
Location: 4 Prev | Next Part: 255733 *Qty: 2 SHIM-Th. 1.5 mm- $4.83
Location: 5 Prev | Next Part: 259440 *Qty: 1 BUSHING-GEARBOX CONNECTOR PLATE $261.31
Location: 6 Prev | Next Part: 259441 *Qty: 1 BUSHING COVER COLLAR $166.44
Location: 7 Prev | Next Part: 259443 *Qty: 3 SCREW $3.38
Location: 8 Prev | Next Part: 216576 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: 252661 *Qty: 1 RELEASE ARM MOUNTING BRACKET Call
Location: 10 Prev | Next Part: 238370 *Qty: 1 COMPLETE RELEASE LEVER $60.34
Location: 11 Prev | Next Part: 11066176 *Qty: 1 SEEGER RING $0.90
Location: 12 Prev | Next Part: 268009 *Qty: 1 SHIELD BRACKET -After depletion Call
Location: 13 Prev | Next Part: 14360524 *Qty: 1 SCREW $1.67
Location: 14 Prev | Next Part: 102032 *Qty: 2 ALIGNMENT DOWEL $4.31
Location: 15 Prev | Next Part: 273038 *Qty: 1 OIL DRAIN PLUG $22.08
Location: 16 Prev | Next Part: 248689 *Qty: 2 RETENTION BRACKET $57.20
Location: 17 Prev | Next Part: 14814234 *Qty: 4 SCREW $1.98
Location: 18 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 12638524 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 14309024 *Qty: 3 SCREW $1.54
Location: 21 Prev | Next Part: 12638524 *Qty: 3 WASHER $0.90
Location: 22 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 23 Prev | Next Part: 248535 *Qty: 1 SCREW $15.06
Location: 24 Prev | Next Part: 10552324 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 14048921 *Qty: 1 NUT $2.19
Location: 26 Prev | Next Part: 10448890 *Qty: 1 BRACKET WITH SHEATH Call
Location: 27 Prev | Next Part: 11628126 *Qty: 1 SCREW $2.74
Location: 28 Prev | Next Part: 292361 *Qty: 1 CLUTCH OIL PIPE MOUNTING BRACKET -Applicable until depletion- $37.37
Location: 28 Prev | Next Part: 292361 *Qty: 1 CLUTCH OIL PIPE MOUNTING BRACKET -Applicable after depletion of 268009 ref. 12 and 276819 ref. 28- $37.37
Location: 29 Prev | Next Part: 127498 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
