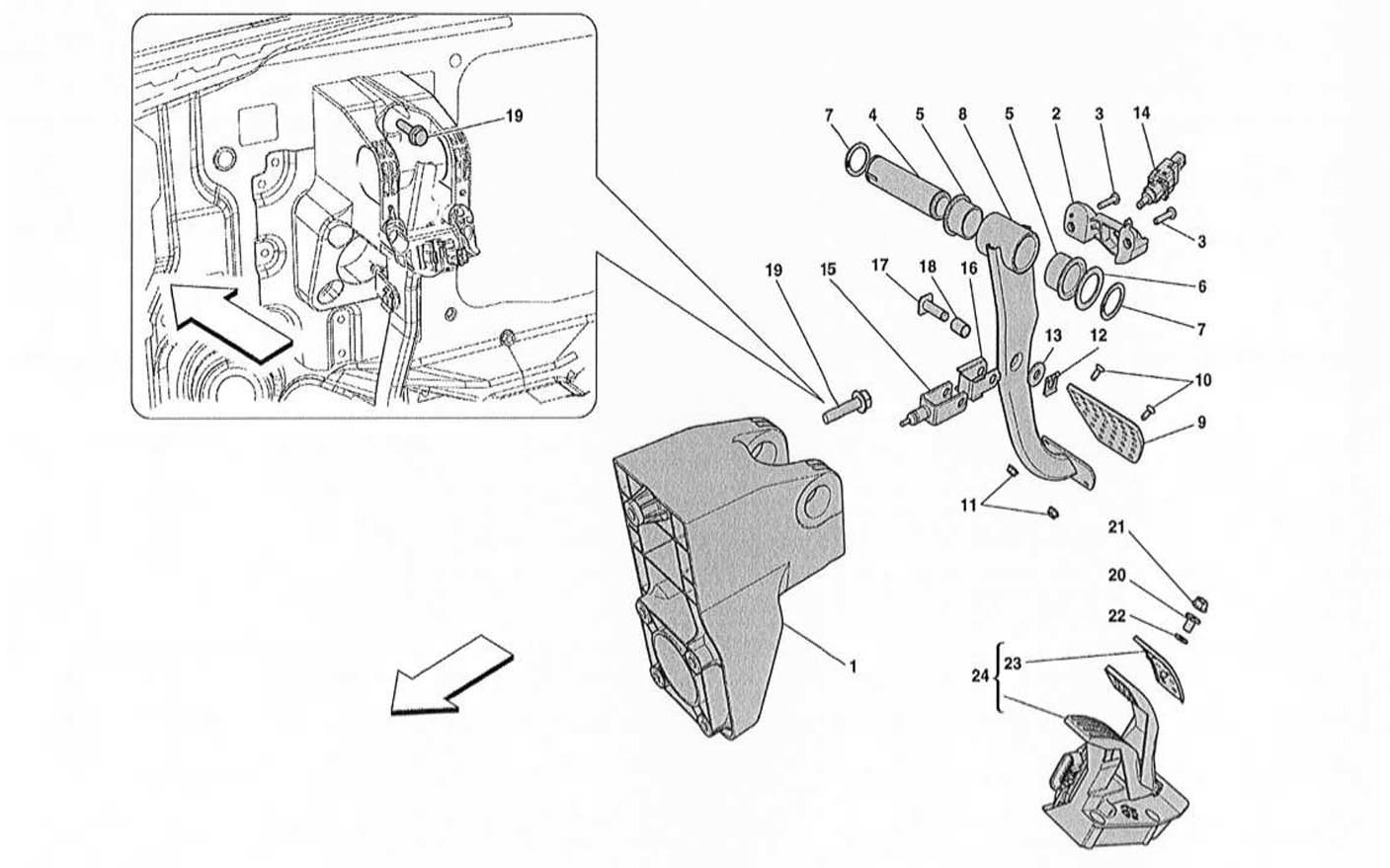

COMPLETE PEDAL BOARD UNIT

Go to Split View

COMPLETE PEDAL BOARD UNIT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 256436 *Qty: 1 PEDAL BOARD MOUNTING $498.43
Location: 2 Prev | Next Part: 259123 *Qty: 1 BRACKET $49.85
Location: 3 Prev | Next Part: 240931 *Qty: 2 SCREW $5.27
Location: 4 Prev | Next Part: 240930 *Qty: 1 PIN $74.77
Location: 5 Prev | Next Part: 240771 *Qty: 2 PIVOT BUSHING Superseded
Location: 6 Prev | Next Part: 240929 *Qty: 1 RUBBER WASHER $11.43
Location: 7 Prev | Next Part: 12700076 *Qty: 2 SEEGER RING FOR SHAFT $11.43
Location: 8 Prev | Next Part: 256426 *Qty: 1 BRAKE PEDAL -Not for RHD- Unavailable
Location: 8 Prev | Next Part: 228972 *Qty: 1 BRAKE PEDAL -Applicable for RHD- Unavailable
Location: 9 Prev | Next Part: 240987 *Qty: 1 PLATE $237.31
Location: 10 Prev | Next Part: 14441324 *Qty: 2 SCREW $0.90
Location: 11 Prev | Next Part: 12578111 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 11064176 *Qty: 1 SAFETY CLIP $3.15
Location: 13 Prev | Next Part: 245181 *Qty: 1 RUBBER WASHER $8.78
Location: 14 Prev | Next Part: 201957 *Qty: 1 PUSHBUTTON SWITCH $37.63
Location: 15 Prev | Next Part: 245178 *Qty: 1 BRAKE SERVO LINKAGE YOKE $68.54
Location: 16 Prev | Next Part: 245179 *Qty: 1 CAGE $21.98
Location: 17 Prev | Next Part: 245180 *Qty: 1 PIN $72.64
Location: 18 Prev | Next Part: 260639 *Qty: 1 BUSHING $15.24
Location: 19 Prev | Next Part: 16287421 *Qty: 1 SCREW $0.90
Location: 20 Prev | Next Part: 69855300 *Qty: 3 BUTTON $0.90
Location: 21 Prev | Next Part: 12575421 *Qty: 3 NUT Superseded
Location: 22 Prev | Next Part: 12646624 *Qty: 3 WASHER $0.90
Location: 23 Prev | Next Part: 243120 *Qty: 1 ACCELERATOR PEDAL PLATE $254.24
Location: 24 Prev | Next Part: 243117 *Qty: 1 COMPLETE FLOOR-HINGED ACCELERATOR PEDAL $272.80

* Quantity shown indicates the number of pieces used in the diagram.
