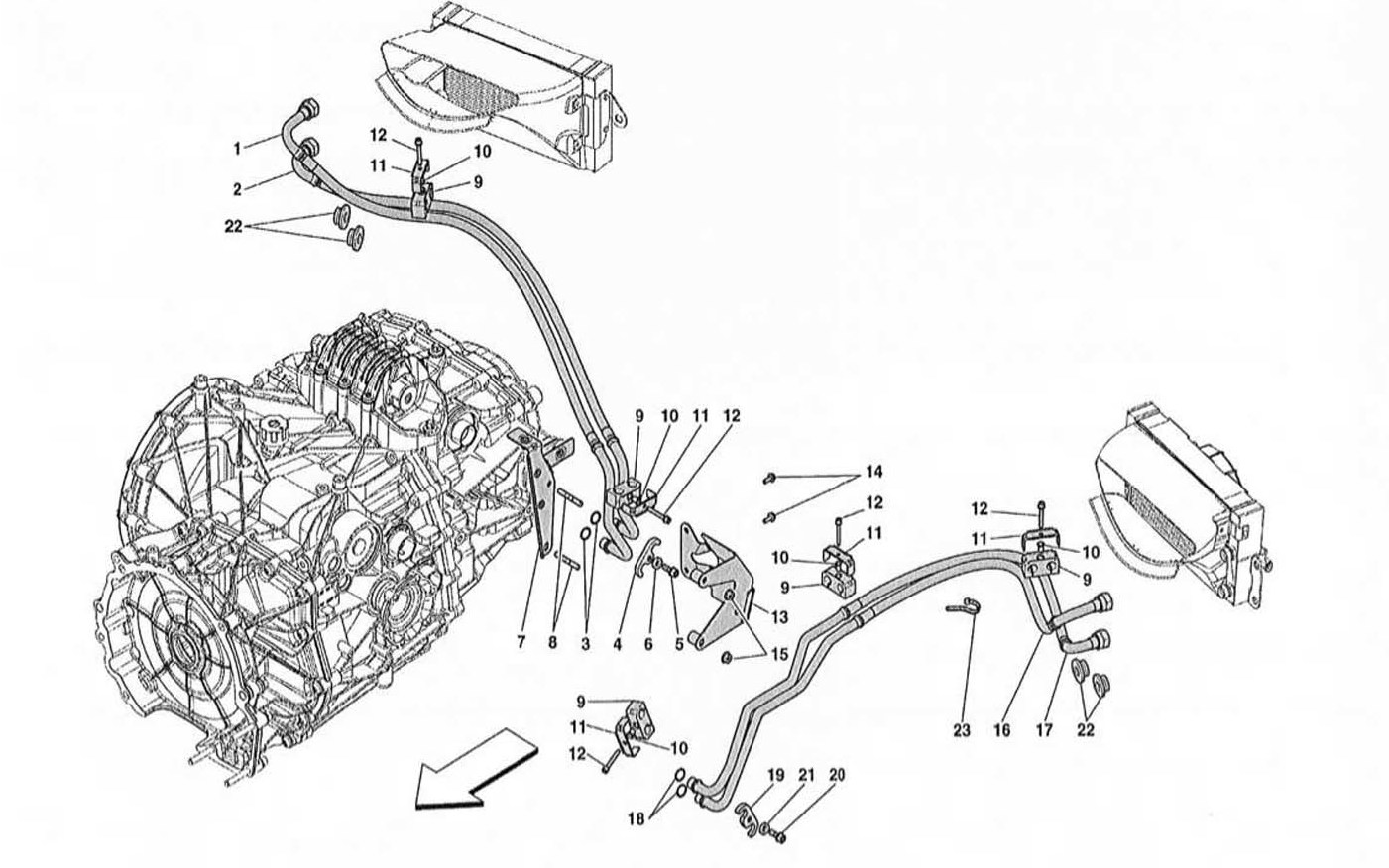

LUBRICATION AND GEARBOX OIL COOLING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 248224 *Qty: 1 GEARBOX OIL DELIVERY PIPE $387.69
Location: 2 Prev | Next Part: 248225 *Qty: 1 GEARBOX OIL RETURN PIPE $1,232.01
Location: 3 Prev | Next Part: 14453481 *Qty: 2 GASKET $2.59
Location: 4 Prev | Next Part: 253632 *Qty: 1 FORK $45.98
Location: 5 Prev | Next Part: 253465 *Qty: 1 SCREW $33.13
Location: 6 Prev | Next Part: 11198074 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 282812 *Qty: 1 BRACKET -No longer supplied- -Replaced by 282812- $56.06
Location: 7 Prev | Next Part: 282812 *Qty: 1 BRACKET $56.06
Location: 8 Prev | Next Part: 13543824 *Qty: 2 STUD BOLT Superseded
Location: 9 Prev | Next Part: 243396 *Qty: 5 FRONT RUBBER PILLORY BLOCK $23.05
Location: 10 Prev | Next Part: 243399 *Qty: 5 BUSHING $0.90
Location: 11 Prev | Next Part: 243398 *Qty: 5 PLATE $13.17
Location: 12 Prev | Next Part: 11568224 *Qty: 3 SCREW -M6 X 45- $1.08
Location: 12 Prev | Next Part: 11628524 *Qty: 2 SCREW -M6 X 40- $1.58
Location: 13 Prev | Next Part: 248227 *Qty: 1 BRACKET $82.63
Location: 14 Prev | Next Part: 13836424 *Qty: 1 SCREW -M6X16- $0.90
Location: 14 Prev | Next Part: 13837411 *Qty: 1 SCREW -M6 X 25- -No longer supplied- -Replaced by 13836424- $0.90
Location: 14 Prev | Next Part: 13836424 *Qty: 1 SCREW -M6X16- $0.90
Location: 15 Prev | Next Part: 13046224 *Qty: 2 NUT $0.90
Location: 16 Prev | Next Part: 256689 *Qty: 1 OIL DELIVERY PIPE $1,119.85
Location: 17 Prev | Next Part: 260773 *Qty: 1 OIL RETURN PIPE Call
Location: 18 Prev | Next Part: 14453481 *Qty: 2 GASKET $2.59
Location: 19 Prev | Next Part: 274609 *Qty: 1 FORK $43.95
Location: 20 Prev | Next Part: 253465 *Qty: 1 SCREW $33.13
Location: 21 Prev | Next Part: 11198074 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 283630 *Qty: 4 DRIP BAFFLE RING Call
Location: 23 Prev | Next Part: 257790 *Qty: 4 RING CLAMP Call

* Quantity shown indicates the number of pieces used in the diagram.
