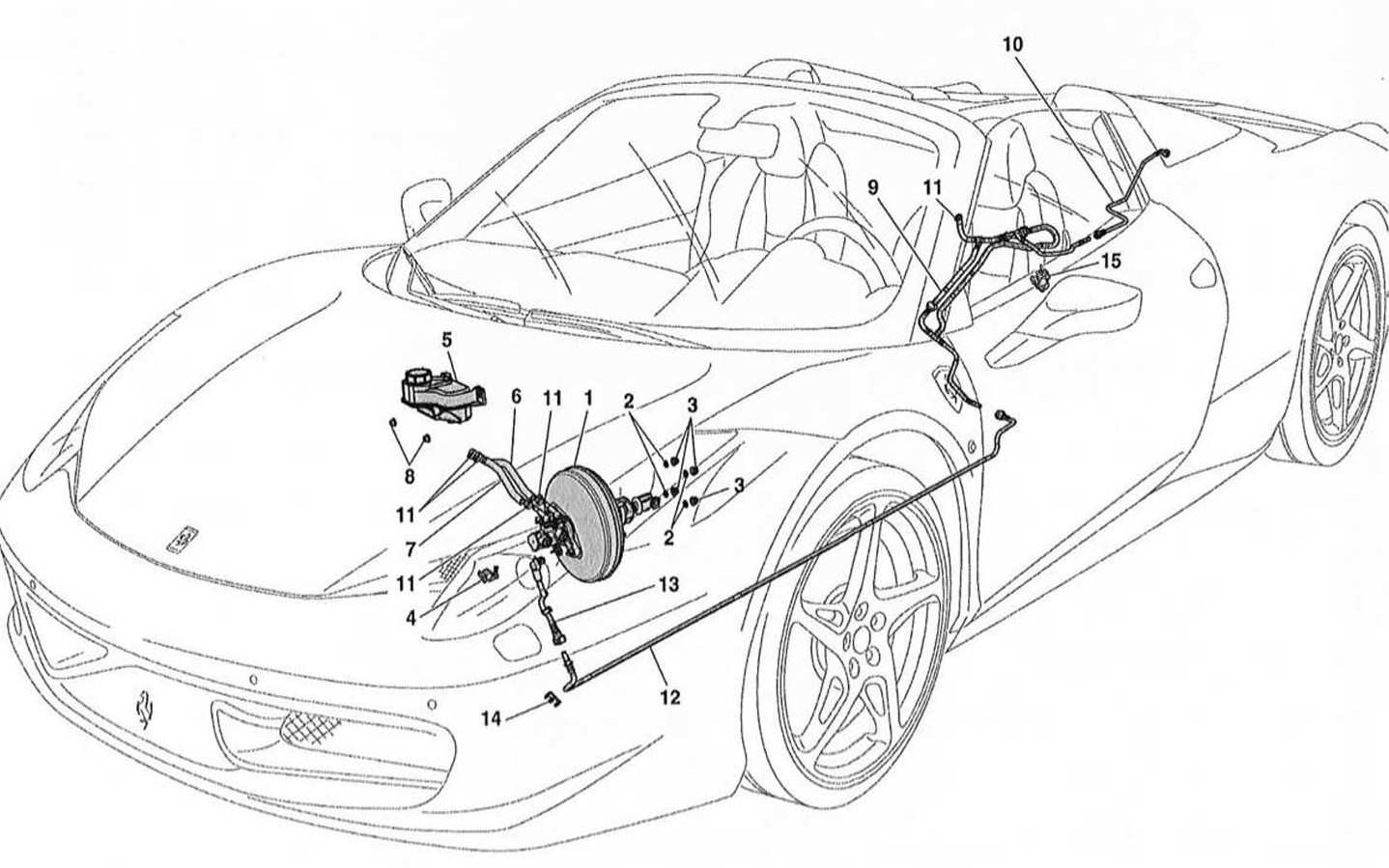

BRAKE SERVO SYSTEM

Go to Split View

BRAKE SERVO SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 244010 *Qty: 1 BRAKE SERVO COMPL. WITH PUMP -Not for RHD- Unavailable
Location: 1 Prev | Next Part: 248907 *Qty: 1 BRAKE SERVO COMPL. WITH PUMP -Applicable for RHD- $525.83
Location: 2 Prev | Next Part: 12601374 *Qty: 4 WASHER Unavailable
Location: 3 Prev | Next Part: 12578211 *Qty: 4 NUT Unavailable
Location: 4 Prev | Next Part: 250733 *Qty: 1 CUP $1.04
Location: 5 Prev | Next Part: 259047 *Qty: 1 BRAKE FLUID RESERVOIR $43.05
Location: 6 Prev | Next Part: 238606 *Qty: 1 RUBBER PIPE-Not for RHD- $22.69
Location: 6 Prev | Next Part: 262569 *Qty: 1 RUBBER PIPE -Applicable for RHD- $69.90
Location: 7 Prev | Next Part: 238607 *Qty: 1 RUBBER PIPE-Not for RHD- $21.38
Location: 7 Prev | Next Part: 262570 *Qty: 1 RUBBER PIPE -Applicable for RHD- $69.90
Location: 8 Prev | Next Part: 14040611 *Qty: 2 NUT $0.90
Location: 9 Prev | Next Part: 262204 *Qty: 1 PIPE WITH KAISER VALVE $313.26
Location: 10 Prev | Next Part: 262205 *Qty: 1 CONNECTOR PIPE $52.11
Location: 11 Prev | Next Part: 13432070 *Qty: 5 COLLAR -D. 15.7- $0.90
Location: 12 Prev | Next Part: 262432 *Qty: 1 UNDERFLOOR PIPE $81.36
Location: 13 Prev | Next Part: 263409 *Qty: 1 COMPL. FRONT VACUUM PIPE -Not for HELE- -Not for RHD- $218.36
Location: 13 Prev | Next Part: 273670 *Qty: 1 COMPL. FRONT VACUUM PIPE-Applicable for HELE- -Not for RHD- $216.08
Location: 13 Prev | Next Part: 262431 *Qty: 1 COMPL. FRONT VACUUM PIPE -Not for HELE- -Applicable for RHD- $42.57
Location: 13 Prev | Next Part: 275505 *Qty: 1 COMPL. FRONT VACUUM PIPE -Applicable for HELE- -Applicable for RHD $134.05
Location: 14 Prev | Next Part: 140130 *Qty: 2 CLIP $0.90
Location: 15 Prev | Next Part: 268340 *Qty: 1 BRACKET Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
