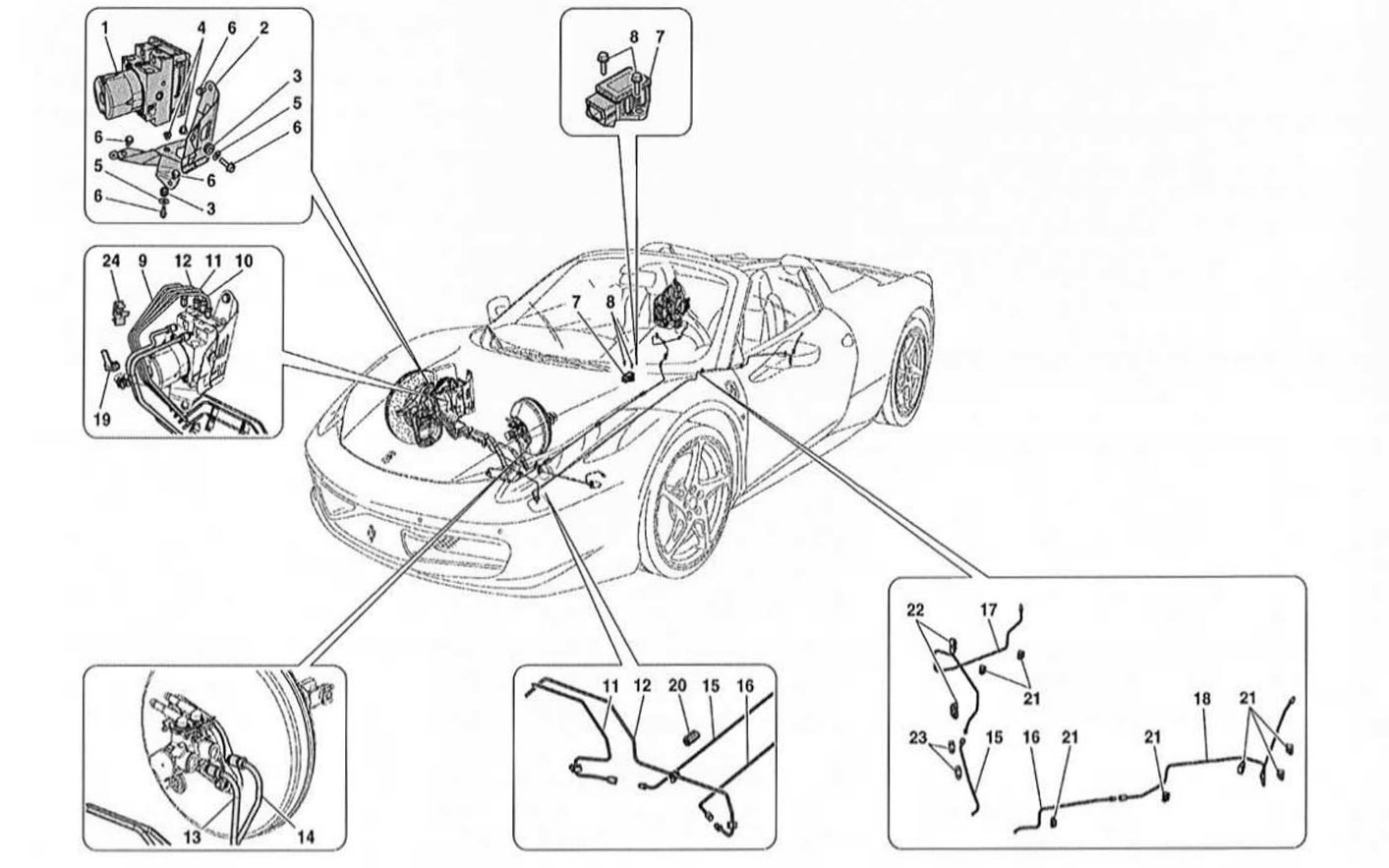

BRAKING SYSTEM

Go to Split View

BRAKING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 273798 *Qty: 1 HYDRAULIC UNIT $4,431.39
Location: 2 Prev | Next Part: 258602 *Qty: 1 BRACKET $81.01
Location: 3 Prev | Next Part: 246864 *Qty: 3 GROMMET $4.20
Location: 4 Prev | Next Part: 246917 *Qty: 3 SHIM $7.83
Location: 5 Prev | Next Part: 12625221 *Qty: 3 WASHER Superseded
Location: 6 Prev | Next Part: 16287224 *Qty: 3 SCREW -M8 X 25- Superseded
Location: 6 Prev | Next Part: 16287024 *Qty: 3 SCREW -M8X 16- $0.90
Location: 7 Prev | Next Part: 206070 *Qty: 1 YAW SENSOR $329.09
Location: 8 Prev | Next Part: 16286124 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 263877 *Qty: 1 FRONT RH BRAKE PIPE -Not for RHD- $65.91
Location: 9 Prev | Next Part: 262438 *Qty: 1 FRONT RH BRAKE PIPE -Applicable for RHD- Call
Location: 10 Prev | Next Part: 263876 *Qty: 1 FRONT LH BRAKE PIPE -Not for RHD- $89.61
Location: 10 Prev | Next Part: 267850 *Qty: 1 FRONT LH BRAKE PIPE -Applicable for RHD- Call
Location: 11 Prev | Next Part: 263446 *Qty: 1 REAR RH BRAKE PIPE -Not for RHD- $62.55
Location: 11 Prev | Next Part: 262436 *Qty: 1 REAR RH BRAKE PIPE -Applicable for RHD- Call
Location: 12 Prev | Next Part: 269059 *Qty: 1 REAR LH BRAKE PIPE -Not for RHD- Call
Location: 12 Prev | Next Part: 262435 *Qty: 1 REAR LH BRAKE PIPE -Applicable for RHD- Call
Location: 13 Prev | Next Part: 238120 *Qty: 1 PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT -Not for RHD- $198.72
Location: 13 Prev | Next Part: 268086 *Qty: 1 PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT -Applicable for RHD- Call
Location: 14 Prev | Next Part: 262401 *Qty: 1 PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT -Not for RHD- $81.86
Location: 14 Prev | Next Part: 268085 *Qty: 1 PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT -Applicable for RHD- Call
Location: 15 Prev | Next Part: 265345 *Qty: 1 UNDERFLOOR REAR RH BRAKE PIPE $55.96
Location: 16 Prev | Next Part: 262440 *Qty: 1 UNDERFLOOR REAR LH BRAKE PIPE $56.82
Location: 17 Prev | Next Part: 263892 *Qty: 1 REAR SUBFRAME RH BRAKE PIPE $51.73
Location: 18 Prev | Next Part: 263893 *Qty: 1 REAR SUBFRAME LH BRAKE PIPE $50.49
Location: 19 Prev | Next Part: 254195 *Qty: 1 CLIP $1.66
Location: 20 Prev | Next Part: 262737 *Qty: 7 RUBBER RETAINER $6.09
Location: 21 Prev | Next Part: 249650 *Qty: 7 CLIP $0.90
Location: 22 Prev | Next Part: 249649 *Qty: 2 CLIP $0.97
Location: 23 Prev | Next Part: 169476 *Qty: 2 CLIP $3.23
Location: 24 Prev | Next Part: 268893 *Qty: 2 CLIP $2.13

* Quantity shown indicates the number of pieces used in the diagram.
