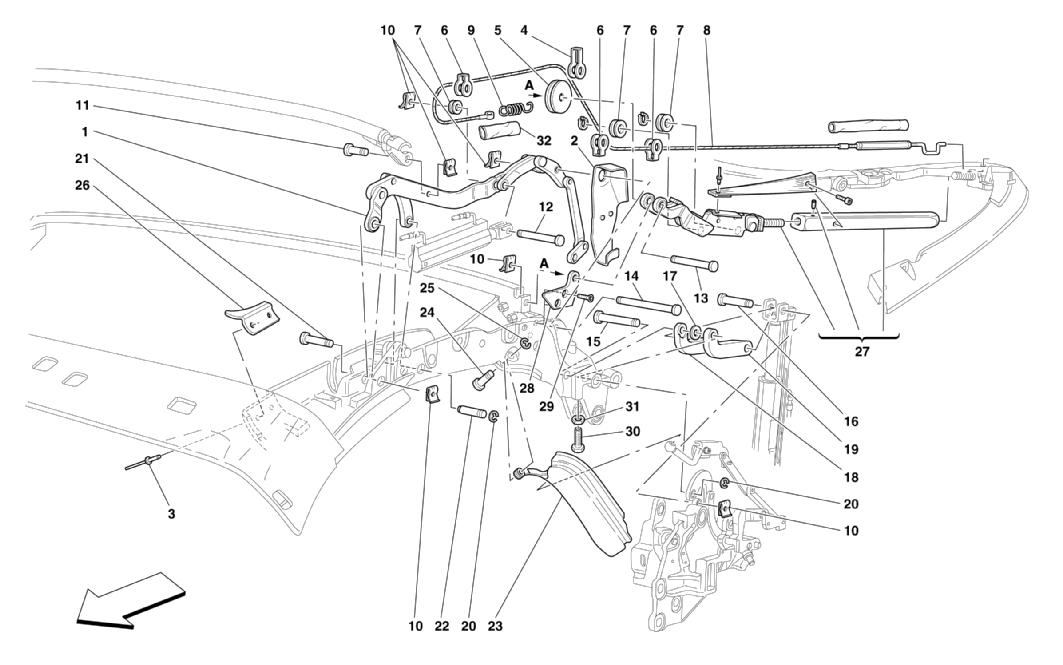

CAPOTE MOVEMENT - UPPER PART

Go to Split View

CAPOTE MOVEMENT - UPPER PART

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66458300 *Qty: 1 R.H. FLOATING ARM $641.68
Location: 1 Prev | Next Part: 66458200 *Qty: 1 L.H. FLOATING ARM $641.68
Location: 2 Prev | Next Part: 66693900 *Qty: 1 R.H. PANEL $81.31
Location: 2 Prev | Next Part: 66694000 *Qty: 1 L.H. PANEL $81.31
Location: 3 Prev | Next Part: 66693000 *Qty: 4 RIVET $2.74
Location: 4 Prev | Next Part: 66688100 *Qty: 2 BRACKET FOR PULLEY -37 mm $12.94
Location: 5 Prev | Next Part: 66688000 *Qty: 2 PULLEY -37 mm Unavailable
Location: 6 Prev | Next Part: 66687900 *Qty: 6 BRACKET FOR PULLEY -20 mm $11.98
Location: 7 Prev | Next Part: 66687800 *Qty: 6 PULLEY -20 mm $11.04
Location: 8 Prev | Next Part: 67047300 *Qty: 2 STRETCH CABLE -Valid from Ass. Nr. 42510 $188.87
Location: 8 Prev | Next Part: 66375700 *Qty: 2 STRETCH CABLE -Valid till Ass. Nr. 42509 $267.35
Location: 9 Prev | Next Part: 66688200 *Qty: 2 SPRING $8.71
Location: 10 Prev | Next Part: 66682200 *Qty: 12 CLIP $5.44
Location: 11 Prev | Next Part: 66682100 *Qty: 2 PIN $9.42
Location: 12 Prev | Next Part: 66682800 *Qty: 2 PIN $9.73
Location: 13 Prev | Next Part: 66682700 *Qty: 2 PIN $9.90
Location: 14 Prev | Next Part: 66683200 *Qty: 2 PIN $12.16
Location: 15 Prev | Next Part: 66683300 *Qty: 2 PIN $10.69
Location: 16 Prev | Next Part: 66682900 *Qty: 2 PIN $9.73
Location: 17 Prev | Next Part: 66694100 *Qty: 2 WASHER $3.33
Location: 18 Prev | Next Part: 66683100 *Qty: 2 R.H. BRACKET $172.90
Location: 19 Prev | Next Part: 66683000 *Qty: 2 L.H. BRACKET $172.90
Location: 20 Prev | Next Part: 66682400 *Qty: 4 SEEGER $4.46
Location: 21 Prev | Next Part: 66682000 *Qty: 2 PIN $9.06
Location: 22 Prev | Next Part: 66682300 *Qty: 2 PIN $18.06
Location: 23 Prev | Next Part: 66460200 *Qty: 1 L.H. PILLAR $544.62
Location: 23 Prev | Next Part: 66460300 *Qty: 1 R.H. PILLAR $544.62
Location: 24 Prev | Next Part: 66682500 *Qty: 2 PIN $10.52
Location: 25 Prev | Next Part: 66682600 *Qty: 2 SEEGER $4.84
Location: 26 Prev | Next Part: 66681800 *Qty: 1 R.H. BRACKET $42.03
Location: 26 Prev | Next Part: 66681900 *Qty: 1 L.H. BRACKET $42.03
Location: 27 Prev | Next Part: 66458100 *Qty: 1 R.H. LONGITUDINAL TIE ROD -Not as spare part -Till car Ass. Nr. 42509 replace with the new triple joint R.h. and L.h. 67047100 + 67047200 together Unavailable
Location: 27 Prev | Next Part: 67047200 *Qty: 1 COMPLETE R.H. TRIPLE JOINT WITH CABLE Ref. 8 -Valid from car Ass. Nr. 42510 $1,197.57
Location: 27 Prev | Next Part: 67047100 *Qty: 1 COMPLETE L.H. TRIPLE JOINT WITH CABLE Ref. 8 -Valid from car Ass. Nr. 42510 $1,197.57
Location: 27 Prev | Next Part: 66458000 *Qty: 1 L.H. LONGITUDINAL TIE ROD -Not as spare part -Till car Ass. Nr.42509 replace with the new triple joint R.h. and L.h. 67047100 + 67047200 together Unavailable
Location: 28 Prev | Next Part: 67048800 *Qty: 2 PLATE FOR TRIPLE JOINT $82.31
Location: 29 Prev | Next Part: 67048900 *Qty: 4 SCREW $7.41
Location: 30 Prev | Next Part: 67048500 *Qty: 2 SCREW $10.05
Location: 31 Prev | Next Part: 67048600 *Qty: 2 NUT $10.60
Location: 32 Prev | Next Part: 67048700 *Qty: 2 SHEATH $81.44

* Quantity shown indicates the number of pieces used in the diagram.
