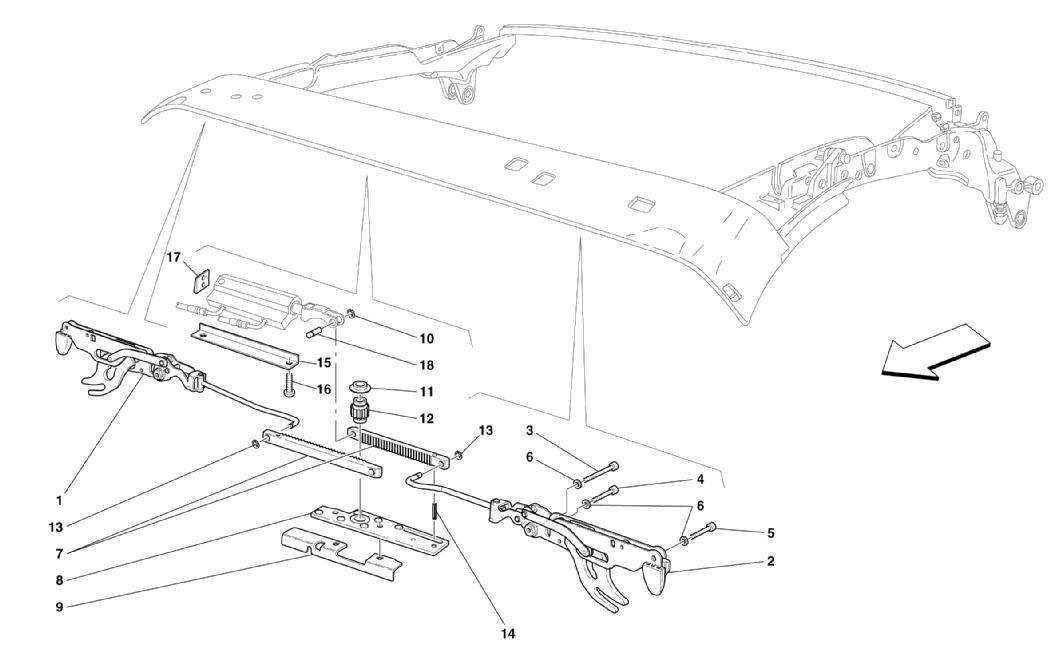

CAPOTE FRONT CLOSING

Go to Split View

CAPOTE FRONT CLOSING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66462500 *Qty: 1 R.H. COMPLETE SEAL $2,614.17
Location: 2 Prev | Next Part: 66462400 *Qty: 1 L.H. COMPLETE SEAL $2,614.17
Location: 3 Prev | Next Part: 66681100 *Qty: 2 SCREW $5.60
Location: 4 Prev | Next Part: 66681200 *Qty: 2 SCREW $5.31
Location: 5 Prev | Next Part: 66681300 *Qty: 2 SCREW $5.22
Location: 6 Prev | Next Part: 66681000 *Qty: 6 WASHER $4.46
Location: 7 Prev | Next Part: 66681700 *Qty: 1 RACK $105.38
Location: 8 Prev | Next Part: 66680300 *Qty: 1 CENTRAL PLATE $87.93
Location: 9 Prev | Next Part: 66680200 *Qty: 1 PLATE $51.06
Location: 10 Prev | Next Part: 66680800 *Qty: 1 SEEGER $4.92
Location: 11 Prev | Next Part: 66681400 *Qty: 2 BUSHING $7.01
Location: 12 Prev | Next Part: 66681500 *Qty: 1 TOOTHED PIN $113.11
Location: 13 Prev | Next Part: 66680400 *Qty: 2 SEEGER $4.92
Location: 14 Prev | Next Part: 66681600 *Qty: 1 PIN $5.05
Location: 15 Prev | Next Part: 66680500 *Qty: 1 PLATE $15.56
Location: 16 Prev | Next Part: 66680600 *Qty: 2 SCREW $5.15
Location: 17 Prev | Next Part: 66680900 *Qty: 1 SMALL PLATE $26.23
Location: 18 Prev | Next Part: 66680700 *Qty: 1 PIN $7.00

* Quantity shown indicates the number of pieces used in the diagram.
