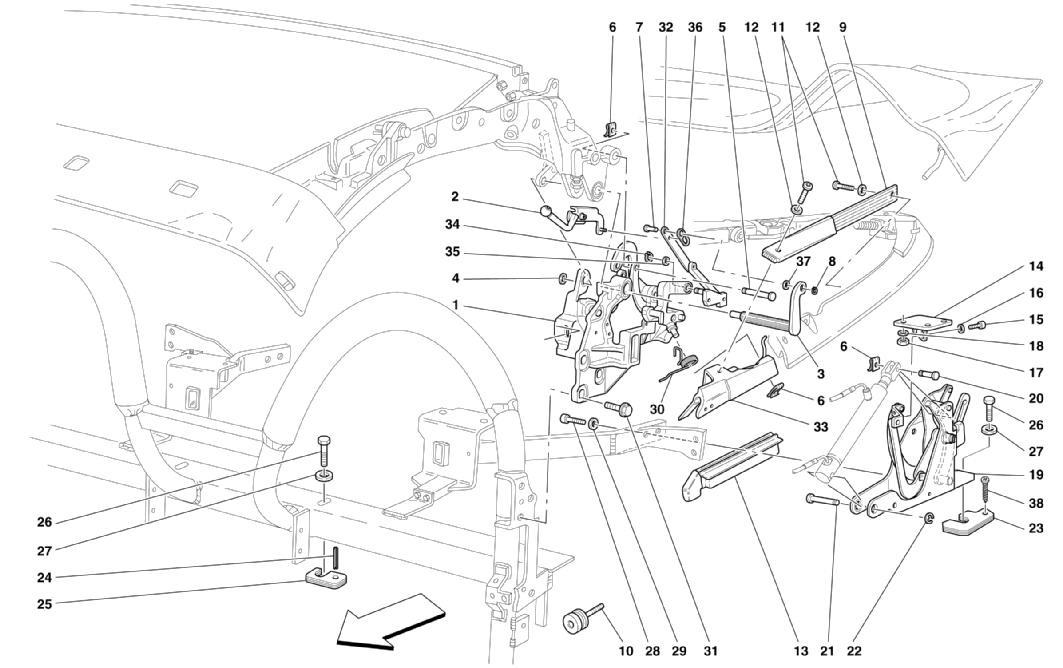

CAPOTE MOVEMENT - LOWER PART

Location Part # Quantity* Description Price Add To Cart
1 66457700 1 R.H. MASTER SUPPORT $1,432.14
1 66457600 1 L.H. MASTER SUPPORT $1,483.91
2 66689700 1 L.H. TIE ROD -For the cars till Ass. Nr. 39682 replaces R.h. and L.h. together $310.57
2 66689800 1 R.H. TIE ROD -For the cars till Ass. Nr. 39682 replaces R.h. and L.h. together $362.33
3 66457800 1 L.H. COMPLETE SPLINED PIN $310.57
3 66457900 1 R.H. COMPLETE SPLINED PIN $310.57
4 66683700 2 WASHER $4.85
5 66682000 2 PIN $10.80
6 66682200 6 CLIP $6.54
7 66683800 2 PIN $7.75
8 66684500 2 SEEGER $6.07
9 66689100 2 ELASTIC WITH PROTECTION Unavailable
10 183177 2 ADJUSTMENT TOP SCREW $258.80
11 66683900 4 SCREW $9.72
12 66684000 4 WASHER $5.46
13 66460600 1 L.H.UNION STRETCH ROD $258.80
13 66460700 1 R.H.UNION STRETCH ROD $258.80
14 66688500 1 L.H. PLATE $122.49
14 66688600 1 R.H. PLATE $122.49
15 66688700 2 SCREW $5.32
16 66688800 2 WASHER $5.46
17 66684200 3 NUT $5.46
18 66684100 3 WASHER $5.62
19 66457300 1 PASSENGER COMPARTMENT L.H. REARKINEMATIC MOTION Unavailable
19 66457500 1 PASSENGER COMPARTMENT R.H. REAR KINEMATIC MOTION Unavailable
20 66684300 2 PIN $10.19
21 66684400 2 PIN $21.29
22 66682400 2 SEEGER $5.32
23 183158 2 THICKNESS TH.1,5 mm Unavailable
23 182479 2 THICKNESS TH.1 mm Unavailable
23 183157 2 THICKNESS TH.3 mm Unavailable
24 14164374 2 FLEXIBLE PIN Unavailable
25 184161 2 THICKNESS TH.1 mm $2.42
25 184162 2 THICKNESS TH.1,5 mm $2.42
25 184159 2 THICKNESS TH.3 mm $2.88
26 11307021 4 SCREW $8.51
27 11190679 4 WASHER Unavailable
28 66683400 4 SCREW $6.54
29 66683500 4 WASHER $5.62
30 66688400 1 L.H. SPRING $43.12
30 66688300 1 R.H. SPRING $43.12
31 66683600 2 SCREW $14.76
32 66958800 1 R.H. LEVER $517.63
32 66958900 1 L.H. LEVER $517.63
33 66688900 1 L.H. MOULDING $710.48
33 66689000 1 R.H. MOULDING $710.48
34 66682600 2 SEEGER $5.77
35 67049400 2 WASHER $5.62
36 67049600 2 RETAINING SMALL PLASTIC PLATE $31.04
37 67049500 2 WASHER $8.81
38 15904070 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
