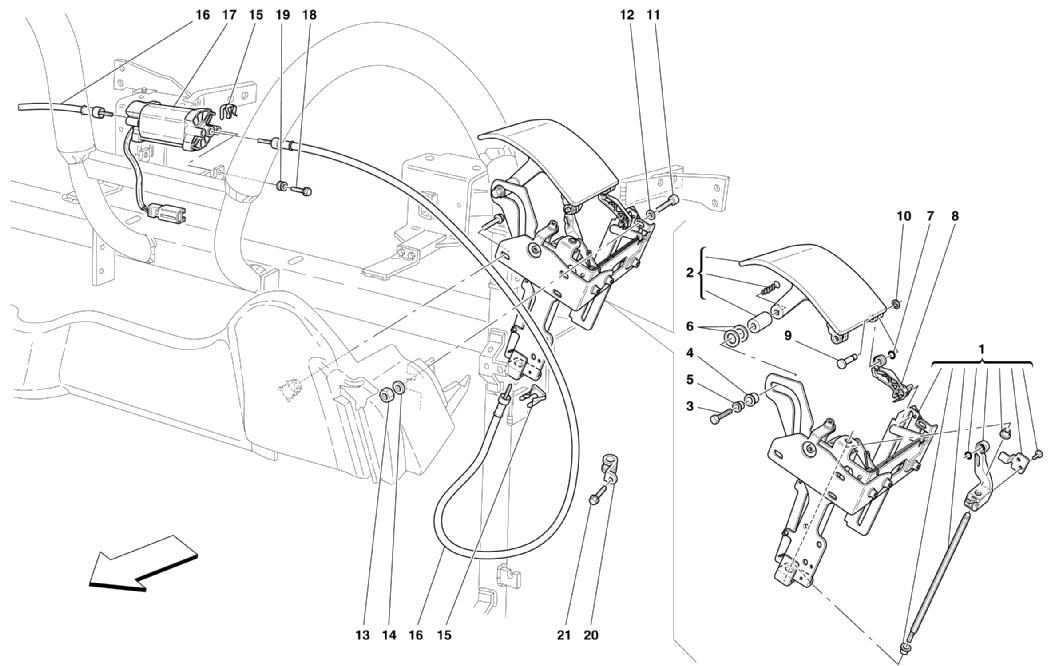

CAPOTE CONTROL AND FLAPS

Go to Split View

CAPOTE CONTROL AND FLAPS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66458400 *Qty: 1 L.H. CAPOTE FLAP SUPPORT $1,017.08
Location: 1 Prev | Next Part: 66458500 *Qty: 1 R.H. CAPOTE FLAP SUPPORT $1,017.08
Location: 2 Prev | Next Part: 66462100 *Qty: 1 R.H. LATERAL CAPOTE FLAP $845.62
Location: 2 Prev | Next Part: 66462000 *Qty: 1 L.H. LATERAL CAPOTE FLAP $845.62
Location: 3 Prev | Next Part: 66689400 *Qty: 2 SCREW $4.38
Location: 4 Prev | Next Part: 66685100 *Qty: 2 BUSHING $7.09
Location: 5 Prev | Next Part: 66684600 *Qty: 2 BUSHING $6.23
Location: 6 Prev | Next Part: 66685200 *Qty: 4 WASHER $6.09
Location: 7 Prev | Next Part: 66684900 *Qty: 2 O.R. GASKET $5.15
Location: 8 Prev | Next Part: 66458800 *Qty: 1 R.H. SUPPORT LEVER $104.25
Location: 8 Prev | Next Part: 66458700 *Qty: 1 L.H. SUPPORT LEVER $104.25
Location: 9 Prev | Next Part: 66685000 *Qty: 2 PIN $11.62
Location: 10 Prev | Next Part: 66680400 *Qty: 2 SEEGER $4.92
Location: 11 Prev | Next Part: 66686000 *Qty: 2 SCREW $4.38
Location: 12 Prev | Next Part: 66681000 *Qty: 2 WASHER $4.46
Location: 13 Prev | Next Part: 66686200 *Qty: 2 NUT $3.73
Location: 14 Prev | Next Part: 66684000 *Qty: 2 WASHER $4.52
Location: 15 Prev | Next Part: 66685500 *Qty: 2 CLIP $11.13
Location: 16 Prev | Next Part: 66458600 *Qty: 2 DEFLECTOR TRANSMISSION CABLE $167.27
Location: 17 Prev | Next Part: 66457000 *Qty: 1 DEFLECTOR MOTOR $428.77
Location: 18 Prev | Next Part: 66685300 *Qty: 4 SCREW $3.05
Location: 19 Prev | Next Part: 66685400 *Qty: 4 RUBBER $3.65
Location: 20 Prev | Next Part: 65996800 *Qty: 2 BRACKET $6.00
Location: 21 Prev | Next Part: 16296927 *Qty: 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
