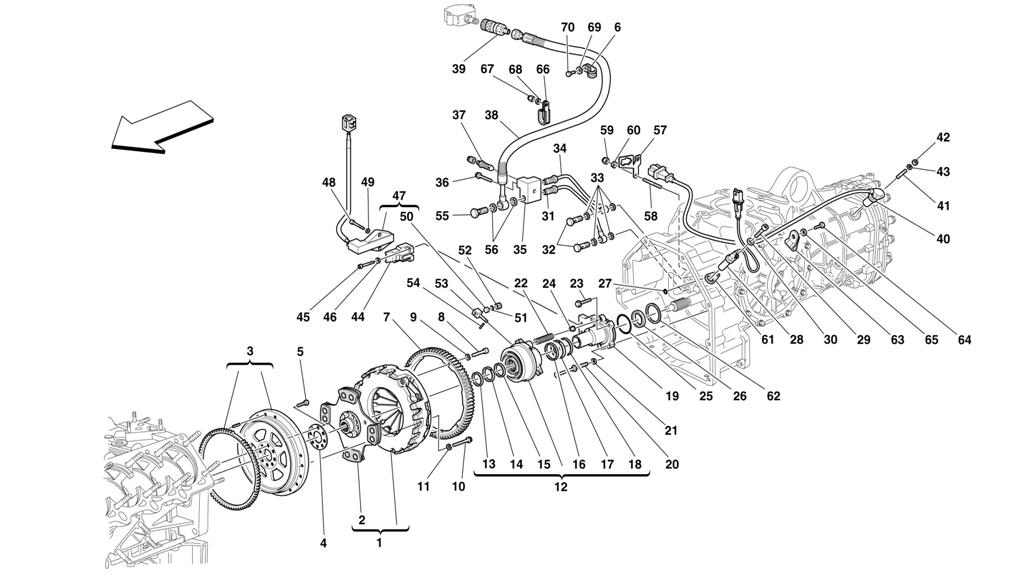

CLUTCH AND CONTROLS

Location	Part #	Quantity*	Description	Price	Add To Cart
1	178042	1	COMPLETE CLUTCH		Unavailable
2	181315	1	CLUTCH DISC	$3,262.60
3	181596	1	COMPLETE ENGINE FLYWHEEL	$1,501.16
4	103876	1	FLYWHEEL FIXING WASHER	$13.38
5	103875	8	SCREW		Superseded
6	121834	1	BRACKET WITH SHEATH	$4.85
7	176917	1	RING GEAR		Unavailable
8	14305424	3	SCREW		Superseded
9	127494	3	WASHER	$0.90
10	178739	15	SCREW	$16.73
11	11194379	15	WASHER	$0.90
12	CRB360/430F1S	1	COMPLETE THRUST BEARING	$693.00
13	181837	1	SCRAPER RING	$25.86
14	170416	1	RING	$3.27
15	181838	1	SEAL RING	$25.86
16	181828	1	SEAL RING	$31.04
17	154507	1	RING	$4.45
18	181836	1	SCRAPER RING	$29.31
19	CRF360/430	1	BEARING SUPPORT FLANGE		Superseded
20	205396	2	STUD FOR END OF STROKE	$66.00
21	127496	2	WASHER	$0.90
22	155207	2	PRELOAD SPRING	$5.00
23	13839224	2	SCREW	$4.06
24	155206	2	SPACER	$4.24
25	136140	1	O.R. GASKET	$1.81
26	172363	1	SEAL RING	$12.93
27	121813	2	O.R. GASKET	$0.90
28	182194	2	ANGOLAR SPEED SENSOR -Valid after stock exhaustion of 164937	$87.68
29	14305724	2	SCREW	$0.90
30	12601274	2	WASHER	$0.90
31	180183	1	CLUTCH CONTROL TUBE		Unavailable
32	11903811	2	UNION		Unavailable
33	10284460	4	GASKET	$0.90
34	180184	1	BLEEDER SYSTEM PIPE		Unavailable
35	196918	1	BLOCK	$89.00
36	16286324	1	SCREW		Unavailable
37	121699	1	BLEEDER SCREW	$59.36
38	239429	1	COMPLETE CLUTCH HOSE	$1,587.44
39	70001184	1	FEMALE COUPLING	$492.07
40	168729	1	ELECTRO-MAGNETIC SENSOR	$308.54
41	11500124	1	STUD		Unavailable
42	10720124	1	NUT		Unavailable
43	12604274	1	WASHER	$0.90
44	201282	1	SUPPORT	$71.94
45	14358524	2	SCREW		Unavailable
46	10519378	2	WASHER		Unavailable
47	178060	1	COMPLETE SENSOR KIT	$828.22
48	14303324	2	SCREW		Unavailable
49	10519224	2	WASHER	$0.90
50	178060	1	MAGNET	$828.22
51	165658	1	O.R. GASKET	$10.80
52	167802	1	PLUG	$57.83
53	165567	1	PIN	$59.36
54	14158570	1	PIN	$0.90
55	171454	1	UNION	$71.54
56	10261060	2	GASKET	$0.90
57	185230	1	SENSOR FIXING BRACKET	$228.35
58	13540724	1	STUD		Unavailable
59	102741	1	NUT	$0.90
60	106850	1	WASHER		Superseded
61	182896	2	THICKNESS	$0.90
62	173360	2	SPACER -Possible fitting	$27.38
63	10440990	1	BRACKET WITH SHEATH	$1.97
64	10977724	1	SCREW	$0.90
65	12637824	1	WASHER	$0.90
66	139512	1	BRACKET WITH SHEATH	$2.78
67	102741	1	NUT	$0.90
68	14496424	1	WASHER		Superseded
69	14496424	1	WASHER		Superseded
70	10979424	1	SCREW		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
