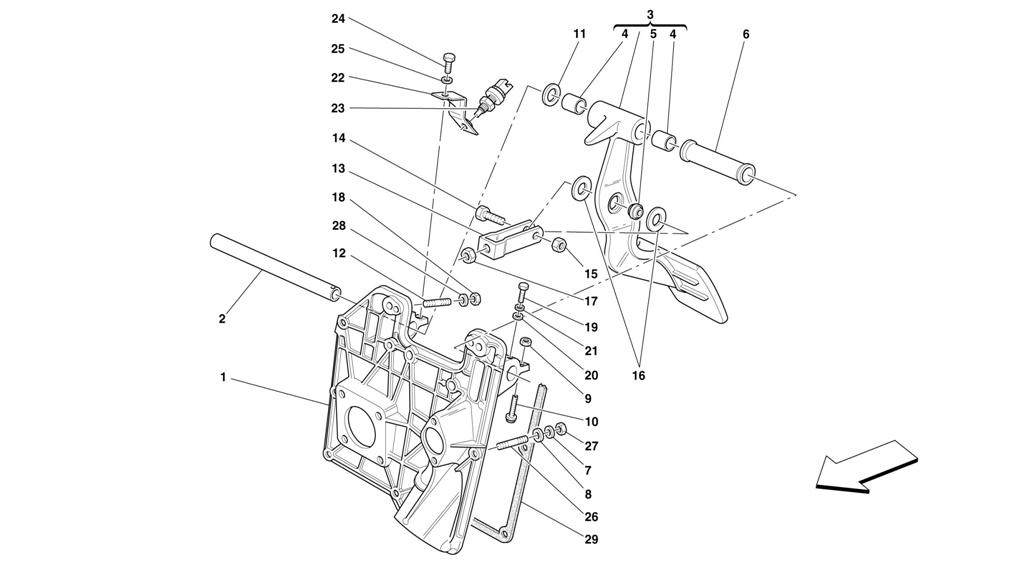

PEDALS

Go to Split View

PEDALS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 176464 *Qty: 1 PEDALS SUPPORT $2,596.08
Location: 2 Prev | Next Part: 176466 *Qty: 1 PEDALS SUPPORT PIN $139.66
Location: 3 Prev | Next Part: 180560 *Qty: 1 COMPLETE BRAKE PEDAL $614.52
Location: 4 Prev | Next Part: 103163 *Qty: 2 SELF-LUBRICATING BUSHING $3.80
Location: 5 Prev | Next Part: 176475 *Qty: 1 BALL JOINT $162.25
Location: 6 Prev | Next Part: 176918 *Qty: 1 SPACER $109.26
Location: 7 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 8 Prev | Next Part: 13550321 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 16102314 *Qty: 1 NUT Call
Location: 10 Prev | Next Part: 144011 *Qty: 1 PEDAL ADJUSTEMENT PIN $4.83
Location: 11 Prev | Next Part: 106083 *Qty: 1 SPACER WASHER $0.90
Location: 12 Prev | Next Part: 13516924 *Qty: 6 STUD $2.63
Location: 13 Prev | Next Part: 176471 *Qty: 1 FORK $107.19
Location: 14 Prev | Next Part: 16043724 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 16 Prev | Next Part: 176522 *Qty: 2 PLASTIC WASHER $18.79
Location: 17 Prev | Next Part: 16102314 *Qty: 1 NUT Call
Location: 18 Prev | Next Part: 104030 *Qty: 6 NUT $0.90
Location: 19 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 20 Prev | Next Part: 14488624 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 183818 *Qty: 1 SWITCH SUPPORT $61.45
Location: 23 Prev | Next Part: 183433 *Qty: 1 PUSH-BUTTON SWITCH $26.80
Location: 24 Prev | Next Part: 16043224 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 127496 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 13517024 *Qty: 2 STUD $0.90
Location: 27 Prev | Next Part: 16102377 *Qty: 2 NUT $1.77
Location: 28 Prev | Next Part: 12638524 *Qty: 6 WASHER $0.90
Location: 29 Prev | Next Part: 176524 *Qty: 1 GASKET $17.31

* Quantity shown indicates the number of pieces used in the diagram.
