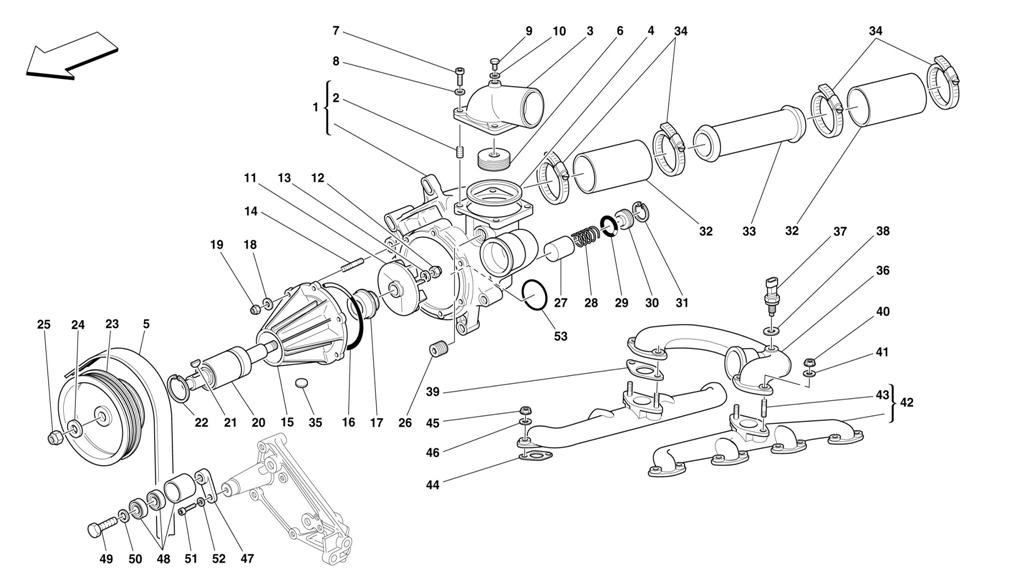

WATER PUMP

Go to Split View

WATER PUMP

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 176044 *Qty: 1 WATER PUMP BODY $1,258.55
Location: 2 Prev | Next Part: 13525470 *Qty: 4 THREADED INSERT $0.90
Location: 3 Prev | Next Part: 171926 *Qty: 1 THERMOSTATIC VALVE COVER $47.92
Location: 4 Prev | Next Part: 182550 *Qty: 1 FLANGE FOR PUMP RETAING $182.26
Location: 5 Prev | Next Part: 201446 *Qty: 1 WATER PUMP AND GENERATOR CONTROL BELT $25.20
Location: 6 Prev | Next Part: 181487 *Qty: 1 THREADED PLUG Call
Location: 7 Prev | Next Part: 14433124 *Qty: 4 SCREW $0.90
Location: 8 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 132349 *Qty: 1 UNION Call
Location: 10 Prev | Next Part: 10297760 *Qty: 1 GASKET $0.90
Location: 11 Prev | Next Part: 176045 *Qty: 1 WATER PUMP IMPELLER $132.64
Location: 12 Prev | Next Part: 100436 *Qty: 1 CAP NUT $11.28
Location: 13 Prev | Next Part: 11194074 *Qty: 1 WASHER $0.90
Location: 14 Prev | Next Part: 13540924 *Qty: 6 STUD Call
Location: 15 Prev | Next Part: 176173C *Qty: 1 WATER PUMP (NO PULLEY) $700.00
Location: 16 Prev | Next Part: 137868 *Qty: 1 O.R. GASKET $15.44
Location: 17 Prev | Next Part: 183759 *Qty: 1 FRONT SEAL RING $33.80
Location: 18 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 19 Prev | Next Part: 102741 *Qty: 6 NUT $0.90
Location: 20 Prev | Next Part: 143742 *Qty: 1 BEARING WITH SHAFT Call
Location: 21 Prev | Next Part: 10202320 *Qty: 1 DISC KEY $1.22
Location: 22 Prev | Next Part: 11059976 *Qty: 1 SEEGER RING $1.17
Location: 23 Prev | Next Part: 177207 *Qty: 1 WATER PUMP CONTROL PULLEY $204.02
Location: 24 Prev | Next Part: 12646821 *Qty: 1 WASHER $0.90
Location: 25 Prev | Next Part: 102742 *Qty: 1 NUT $0.90
Location: 26 Prev | Next Part: 106227 *Qty: 1 UNION $7.11
Location: 27 Prev | Next Part: 176046 *Qty: 1 BUSHING $27.12
Location: 28 Prev | Next Part: 176047 *Qty: 1 SPRING $12.91
Location: 29 Prev | Next Part: 147278 *Qty: 1 O.R. GASKET $0.90
Location: 30 Prev | Next Part: 176048 *Qty: 1 SPRING PLUG $13.87
Location: 31 Prev | Next Part: 11058376 *Qty: 1 SEEGER RING Call
Location: 32 Prev | Next Part: 183078 *Qty: 2 SLEEVE $46.43
Location: 33 Prev | Next Part: 178058 *Qty: 1 PIPE $51.71
Location: 34 Prev | Next Part: 13000690 *Qty: 4 SCREW COLLAR $0.90
Location: 35 Prev | Next Part: 10158801 *Qty: 1 PLUG $1.57
Location: 36 Prev | Next Part: 169526 *Qty: 1 WATER OUTLET MANIFOLD CONNECTION DUCT $206.61
Location: 37 Prev | Next Part: 180137 *Qty: 1 WATER TEMPERATURE SENSOR $26.68
Location: 38 Prev | Next Part: 10298460 *Qty: 1 GASKET $0.90
Location: 39 Prev | Next Part: 169564 *Qty: 2 GASKET $1.45
Location: 40 Prev | Next Part: 177778 *Qty: 4 NUT $1.60
Location: 41 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 42 Prev | Next Part: 169749 *Qty: 2 COMPLETE WATER OUTLET MANIFOLD $1,406.88
Location: 43 Prev | Next Part: 13516824 *Qty: 4 STUD $0.90
Location: 44 Prev | Next Part: 141332 *Qty: 8 GASKET $1.29
Location: 45 Prev | Next Part: 132877 *Qty: 16 NUT $3.30
Location: 46 Prev | Next Part: 12604274 *Qty: 16 WASHER $0.90
Location: 47 Prev | Next Part: 180296 *Qty: 1 SMALL PLATE Call
Location: 48 Prev | Next Part: 179698 *Qty: 1 BELT TIGHTENING BEARING $132.95
Location: 49 Prev | Next Part: 15970921 *Qty: 1 SCREW $0.90
Location: 50 Prev | Next Part: 11190574 *Qty: 1 WASHER $0.90
Location: 51 Prev | Next Part: 14302824 *Qty: 1 SCREW $0.90
Location: 52 Prev | Next Part: 11198074 *Qty: 1 WASHER $0.90
Location: 53 Prev | Next Part: 101044 *Qty: 1 O.R. GASKET $5.00

* Quantity shown indicates the number of pieces used in the diagram.
