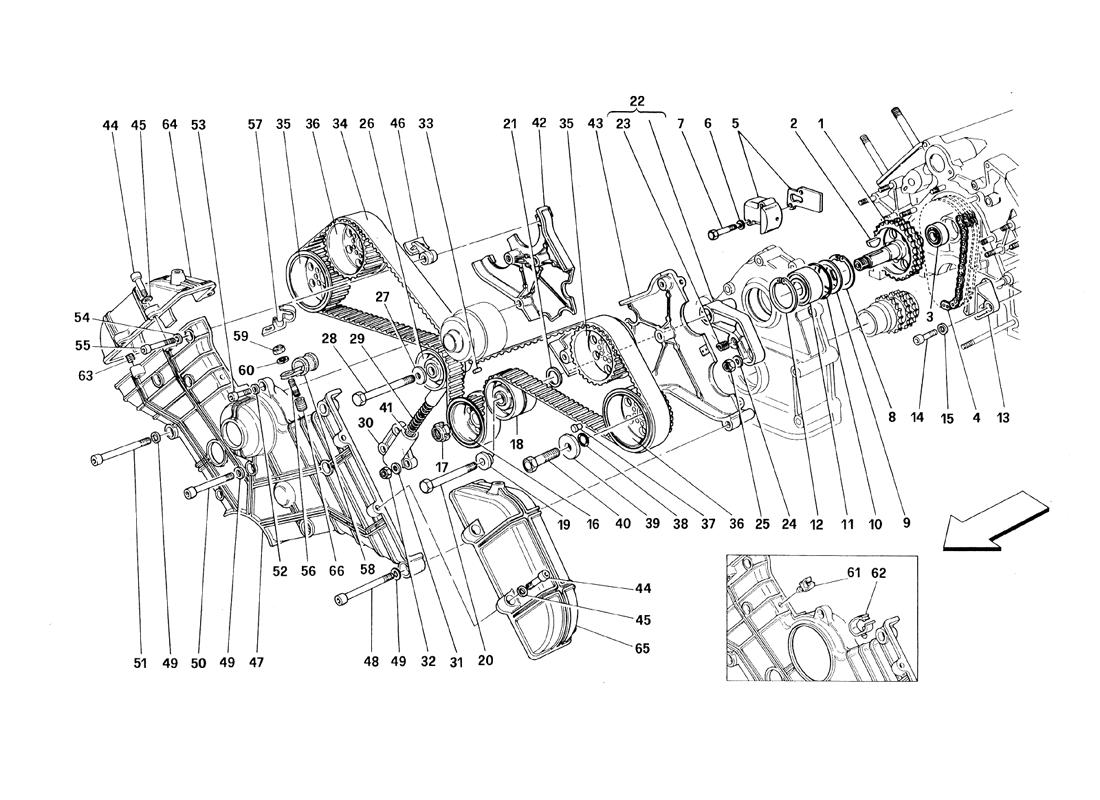

TIMING - CONTROLS

Back to 348 (1989-1992) components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	132808	1	DRIVEN GEAR Valid till engine Nr. 24719	$997.99
1	144489	1	DRIVEN GEAR Valid from engine Nr. 24720		Unavailable
2	10206320	1	KEY	$2.11
3	144713	1	BEARING Valid from engine Nr. 24720		Superseded
3	149241	1	BEARING Valid till engine Nr. 2471 9		Superseded
4	132968	1	TIMING CONTROL CHAIN	$203.43
5	147338	1	CHAIN TIGHTENER	$432.80
6	11197774	2	WASHER	$0.90
7	10903021	2	SCREW		Superseded
8	11060576	1	SEEGER RING	$1.89
9	133377	1	WASHER	$22.82
10	136140	1	O.R. GASKET	$1.81
11	144690	1	BEARING		Superseded
12	11060576	1	SEEGER RING	$1.89
13	143782	1	GUIDE SHOE	$147.46
14	14305721	2	SCREW		Superseded
15	12604279	2	WASHER		Unavailable
16	144488	1	DRIVING GEAR Valid from engine Nr. 24720		Unavailable
16	132909	1	DRIVING GEAR -Valid till engine Nr. 24719-		Unavailable
17	104919	1	RING NUT	$7.45
18	145807	1	L.H. PULLEY		Superseded
19	133385	1	BUSHING	$72.78
20	134663	1	SCREW	$2.31
21	137481	1	WASHER		Unavailable
22	137473	1	BRACKET Valid till stock exhaustion		Superseded
22	147132	1	BRACKET Valid till stock exhaustion of 137473	$475.50
23	13525770	1	THREADED INSERT		Unavailable
24	12601374	2	WASHER	$0.90
25	16104411	2	NUT	$2.33
26	149791	1	R.H. PULLEY		Superseded
27	12626221	1	WASHER		Superseded
28	134665	1	SCREW	$1.48
29	133867	1	SPRING Valid till stock exhaustion		Unavailable
29	148356	1	SPRING Valid after stock exhaustion of 133867		Unavailable
30	137632	1	BRACKET		Unavailable
31	12601374	3	WASHER	$0.90
32	16104125	3	NUT		Superseded
33	10486110	1	PIN	$17.95
34	132843	1	Timing Control Belt	$70.40
35	136229	2	DRIVEN GEAR	$456.40
36	136230	2	DRIVEN GEAR	$948.40
37	106203	4	DOWEL		Unavailable
38	114808	4	O.R. GASKET	$5.93
39	117274	4	WASHER	$4.55
40	146540	4	SCREW	$31.36
41	12638601	1	WASHER	$0.90
42	133820	1	R.H. REAR SHIELD Aluminium		Unavailable
42	134217	1	R.H. REAR SHIELD Black plastic	$502.32
43	133821	1	L.H. REAR SHIELD Aluminium		Unavailable
43	134218	1	LH. REAR SHIELD Black plastic	$563.04
44	14305321	8	SCREW		Unavailable
45	12601274	8	WASHER	$0.90
46	133824	2	GUIDE SHOE	$215.00
47	134216	1	FRONT SHIELD Black plastic	$734.86
47	143118	1	FRONT SHIELD Aluminium		Unavailable
48	14359521	3	SCREW	$1.71
49	12601374	8	WASHER	$0.90
50	14308921	2	SCREW		Unavailable
51	14309021	3	SCREW		Superseded
52	12601274	1	WASHER	$0.90
53	14305321	1	SCREW		Unavailable
54	12601274	2	WASHER	$0.90
55	14305821	2	SCREW		Unavailable
56	11500521	2	STUD Valid for plastic shield	$3.19
57	143119	2	CLIP Valid for M. 2.5 - Valid for plastic shield		Unavailable
58	10442190	2	BRACKET Valid for M. 2.7 - Valid for plastic shield		Unavailable
59	12574211	2	NUT Valid for plastic shield		Superseded
60	12604279	2	WASHER Valid for plastic shield		Unavailable
61	139964	1	CLIP Valid for aluminium shield		Unavailable
62	61681500	1	CLIP Valid for aluminium shield		Unavailable
63	13525570	8	THREADED INSERT Valid for aluminium shield	$2.86
64	133822	1	R.H. SHIELD CAP Aluminium		Unavailable
64	134219	1	R.H. SHIELD CAP Black plastic	$281.87
65	133823	1	LH. SHIELD CAP Aluminium		Unavailable
65	134220	1	LH. SHIELD CAP Black plastic	$286.64
66	120711	2	THREADED BUSHING Valid for front shield 143118	$16.67

* Quantity shown indicates the number of pieces used in the diagram.
