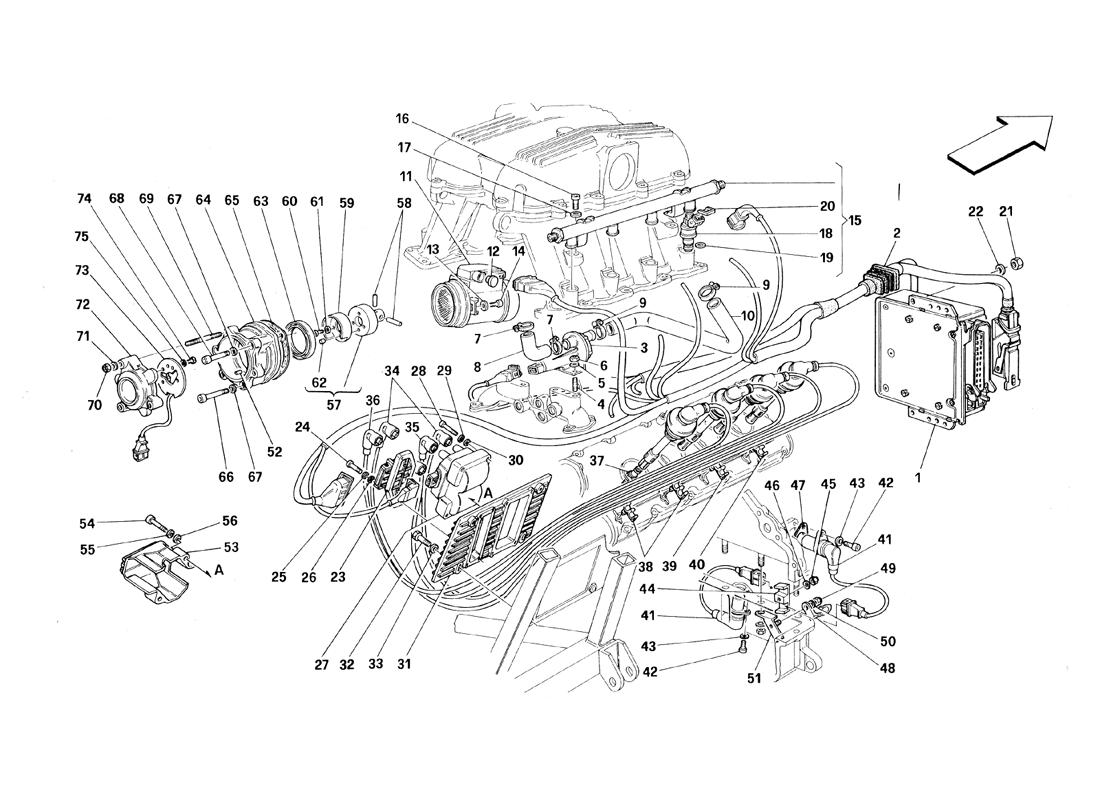

AIR INJECTION - IGNITION - MOTRONIC 2.5

Location Part # Quantity* Description Price Add To Cart
1 132216 2 IGNITION/SUPPLY CONTROL SYSTEM $3,000.58
2 139465 2 RUBBER BOOT $206.96
3 124802 2 ADDITIONAL AIR VALVE Unavailable
4 11500024 4 STUD $3.37
5 14496401 4 WASHER Superseded
6 12575411 4 NUT Superseded
7 13000390 4 SCREW COLLAR Unavailable
8 139372 2 AIR VALVE/MANIFOLD CONNECTION PIPE $318.36
9 13000390 4 SCREW COLLAR Unavailable
10 139452 1 AIR VALVE/L.H. MANIFOLD CONNECTION PIPE $24.99
10 139451 1 AIR VALVE/R.H. MANIFOLD CONNECTION PIPE $24.99
11 136374 2 AIR INDICATOR Unavailable
12 140190 2 PLUG
Valid for catalyzed cars 		$20.46
12 144092 2 PLUG
Not for catalyzed cars 		$13.24
13 12639978 4 WASHER $2.11
14 10373677 4 SCREW $18.17
15 137326 2 INJECTORS COMPLETE TUBE $2,215.72
16 20293306 4 SCREW Superseded
17 12601374 4 WASHER $0.90
18 130968 8 ELECTRO-INJECTOR $505.00
19 133902 16 GASKET $7.59
20 144763 8 INJECTOR RETAINING SPRING Unavailable
21 12575411 4 NUT Superseded
22 14496401 4 WASHER Superseded
23 137511 2 POWER MODULE $375.00
24 13274672 4 SCREW Unavailable
25 149951 4 WASHER Superseded
26 10519377 4 WASHER Unavailable
27 138255D 2 COIL DECAL $5.00
27 138255 2 IGNITION COIL $293.31
28 13274972 8 SCREW $3.02
29 149951 8 WASHER Superseded
30 10519377 8 WASHER Unavailable
31 139434 2 COIL AND MODULE SUPPORT $105.88
32 10902724 8 SCREW Unavailable
33 10519424 8 WASHER Unavailable
34 145500 4 CABLE (FOR SPARK PLUGS 1.2,7,8)
With extension "BERU" 		Superseded
34 137450 4 CABLE (FOR SPARK PLUGS 1.2,7,8)
With extension "BOSCH" 		Superseded
35 137451 2 CABLE (FOR SPARK PLUGS 3.6)
With extension "BOSCH" 		Superseded
35 145501 2 CABLE (FOR SPARK PLUGS 3.6)
With extension "BERU" 		Unavailable
36 137452 2 CABLE (FOR SPARK PLUGS 4.5)
With extension "BOSCH" 		Superseded
36 145502 2 CABLE (FOR SPARK PLUGS 4.5)
With extension "BERU" 		Superseded
37 131922 8 SPARK PLUG Superseded
38 119402 4 4-HOUSING CLIP $4.24
39 119403 2 3-HOUSING CLIP $17.70
40 119404 2 2-HOUSINGCLIP $5.46
41 130975 2 ANGOLAR SPEED SENSOR $174.09
42 14305121 2 SCREW Unavailable
43 12601274 2 WASHER $0.90
44 139244 1 SUPPORT Unavailable
45 15896470 1 NUT Unavailable
46 11199279 1 WASHER Unavailable
47 140621 2 THICKNESS
Possible fitting 		Unavailable
48 129544 1 CLIP $2.58
49 12574211 1 NUT Superseded
50 12648201 1 WASHER Unavailable
51 139949 1 BRACKET $100.14
52 10331010 1 PIN Unavailable
53 150631 2 PROTECTION $16.30
54 13274872 4 SCREW Unavailable
55 149951 4 WASHER Superseded
56 10519377 4 WASHER Unavailable
57 133378 1 COUPLING ON THE CAM SHAFT $516.70
58 132355 2 PIN $103.31
59 - 1 TIMER
Not as spare part - With complete phase sensor 		Unavailable
60 10374721 3 SCREW Unavailable
61 12604070 3 WASHER Unavailable
62 10486110 1 PIN $17.95
63 149917 1 RING FOR CAMSHAFT $85.69
64 137508 1 PHASE SENSOR SUPPORT $125.80
65 150076 1 SUPPORT GASKET $23.26
66 14305920 2 SCREW Unavailable
67 12604279 3 WASHER Unavailable
68 14305821 1 SCREW Unavailable
69 13539821 3 STUD Superseded
70 12577811 3 NUT Superseded
71 10519377 3 WASHER Unavailable
72 137510 1 SMALL COVER $74.12
73 146312 1 COMPLETE PHASE SENSOR Unavailable
74 14418131 2 SCREW Unavailable
75 12600479 2 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
