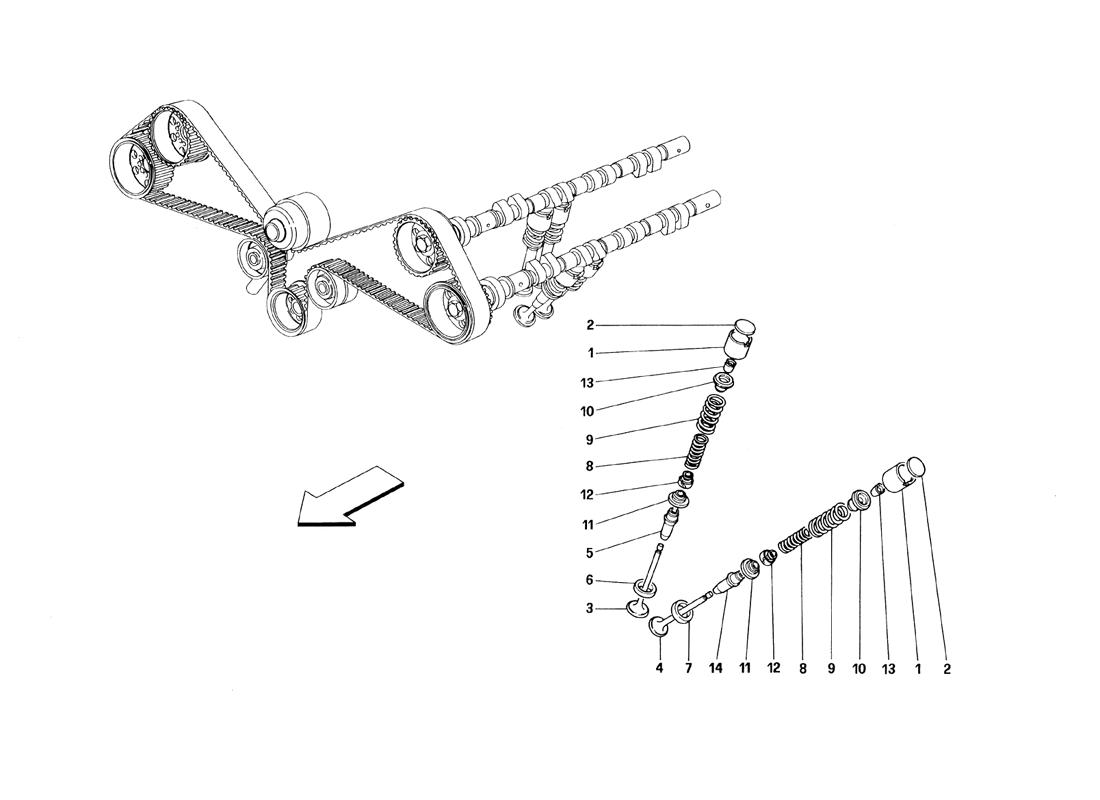

TIMING - TAPPETS

Go to Split View

TIMING - TAPPETS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 117562 *Qty: 32 TAPPET FOR VALVE CONTROL $116.10
Location: 2 Prev | Next Part: 117595 *Qty: 32 VALVE SETTING PLATE
mm. 4.55
$17.60
Location: 2 Prev | Next Part: 117592 *Qty: 32 VALVE SETTING PLATE
mm. 4.40
$18.65
Location: 2 Prev | Next Part: 117596 *Qty: 32 VALVE SETTING PLATE
mm. 4.60
$17.60
Location: 2 Prev | Next Part: 117593 *Qty: 32 VALVE SETTING PLATE
mm. 4.45
$18.65
Location: 2 Prev | Next Part: 153742 *Qty: 32 VALVE SETTING PLATE
mm. 4.275
$12.04
Location: 2 Prev | Next Part: 117594 *Qty: 32 VALVE SETTING PLATE
mm. 4.50
$18.65
Location: 2 Prev | Next Part: 153741 *Qty: 32 VALVE SETTING PLATE
mm. 4.225
$12.04
Location: 2 Prev | Next Part: 117583 *Qty: 32 VALVE SETTING PLATE
mm. 3.95
$18.65
Location: 2 Prev | Next Part: 153740 *Qty: 32 VALVE SETTING PLATE
mm. 4.175
$38.88
Location: 2 Prev | Next Part: 117582 *Qty: 32 VALVE SETTING PLATE
mm. 3.90
$18.65
Location: 2 Prev | Next Part: 153739 *Qty: 32 VALVE SETTING PLATE
mm. 4.125
Call
Location: 2 Prev | Next Part: 117569 *Qty: 32 VALVE SETTING PLATE
mm. 3.25
$18.65
Location: 2 Prev | Next Part: 153738 *Qty: 32 VALVE SETTING PLATE
mm. 4.075
$19.58
Location: 2 Prev | Next Part: 117570 *Qty: 32 VALVE SETTING PLATE
mm. 3.30
$18.65
Location: 2 Prev | Next Part: 117580 *Qty: 32 VALVE SETTING PLATE
mm. 3.80
$18.65
Location: 2 Prev | Next Part: 153737 *Qty: 32 VALVE SETTING PLATE
mm. 4.025
$37.37
Location: 2 Prev | Next Part: 117571 *Qty: 32 VALVE SETTING PLATE
mm. 3.35
$18.65
Location: 2 Prev | Next Part: 117584 *Qty: 32 VALVE SETTING PLATE
mm. 4.00
$18.65
Location: 2 Prev | Next Part: 153736 *Qty: 32 VALVE SETTING PLATE
mm. 3.975
$38.88
Location: 2 Prev | Next Part: 117572 *Qty: 32 VALVE SETTING PLATE
mm. 3.40
$18.65
Location: 2 Prev | Next Part: 117585 *Qty: 32 VALVE SETTING PLATE
mm. 4.05
$18.65
Location: 2 Prev | Next Part: 153735 *Qty: 32 VALVE SETTING PLATE
mm. 3.925
$12.04
Location: 2 Prev | Next Part: 117573 *Qty: 32 VALVE SETTING PLATE
mm. 3.45
$18.65
Location: 2 Prev | Next Part: 117575 *Qty: 32 VALVE SETTING PLATE
mm. 3.55
$18.65
Location: 2 Prev | Next Part: 117586 *Qty: 32 VALVE SETTING PLATE
mm. 4.10
$18.65
Location: 2 Prev | Next Part: 153734 *Qty: 32 VALVE SETTING PLATE
mm. 3.875
$12.04
Location: 2 Prev | Next Part: 117576 *Qty: 32 VALVE SETTING PLATE
mm. 3.60
$18.65
Location: 2 Prev | Next Part: 117587 *Qty: 32 VALVE SETTING PLATE
mm. 4.15
$18.65
Location: 2 Prev | Next Part: 153733 *Qty: 32 VALVE SETTING PLATE
mm. 3.825
$12.04
Location: 2 Prev | Next Part: 117577 *Qty: 32 VALVE SETTING PLATE
mm. 3.65
$18.65
Location: 2 Prev | Next Part: 117588 *Qty: 32 VALVE SETTING PLATE
mm. 4.20
$18.65
Location: 2 Prev | Next Part: 153732 *Qty: 32 VALVE SETTING PLATE
mm. 3.775
$12.04
Location: 2 Prev | Next Part: 117578 *Qty: 32 VALVE SETTING PLATE
mm. 3.70
$18.65
Location: 2 Prev | Next Part: 117589 *Qty: 32 VALVE SETTING PLATE
mm. 4.25
$18.65
Location: 2 Prev | Next Part: 153731 *Qty: 32 VALVE SETTING PLATE
mm. 3.725
$12.04
Location: 2 Prev | Next Part: 117579 *Qty: 32 VALVE SETTING PLATE
mm. 3.75
$18.65
Location: 2 Prev | Next Part: 117590 *Qty: 32 VALVE SETTING PLATE
mm. 4.30
$18.65
Location: 2 Prev | Next Part: 117574 *Qty: 32 VALVE SETTING PLATE
mm. 3.50
$18.65
Location: 2 Prev | Next Part: 117581 *Qty: 32 VALVE SETTING PLATE
mm. 3.85
$18.65
Location: 2 Prev | Next Part: 117591 *Qty: 32 VALVE SETTING PLATE
mm. 4.35
$18.65
Location: 3 Prev | Next Part: 137955 *Qty: 16 SUCTION VALVE $226.70
Location: 4 Prev | Next Part: 137959 *Qty: 16 EXHAUST VALVE $159.78
Location: 5 Prev | Next Part: 117563 *Qty: 16 SUCTION VALVE GUIDE $94.80
Location: 5 Prev | Next Part: 117564 *Qty: 16 SUCTION VALVE GUIDE
0.2 mm. OVERSIZED
$122.22
Location: 6 Prev | Next Part: 137936 *Qty: 16 SUCTION VALVE SEAT $13.25
Location: 7 Prev | Next Part: 137935 *Qty: 16 EXHAUST VALVE SEAT $14.05
Location: 8 Prev | Next Part: 117558 *Qty: 32 INNER SPRING FOR VALVE RETURN $80.72
Location: 9 Prev | Next Part: 117559 *Qty: 32 OUTER SPRING FOR VALVE RETURN $36.93
Location: 10 Prev | Next Part: 117567 *Qty: 32 UPPER CUP FOR RETAINING SPRING $41.53
Location: 11 Prev | Next Part: 117568 *Qty: 32 LOWER CUP FOR RETAINING SPRING $6.80
Location: 12 Prev | Next Part: 141565 *Qty: 32 OIL RING FOR VALVE GUIDE $6.59
Location: 13 Prev | Next Part: 117283 *Qty: 64 CONE FOR SPRING PLATE $2.40
Location: 14 Prev | Next Part: 117565 *Qty: 16 EXHAUST VALVE GUIDE $96.56
Location: 14 Prev | Next Part: 117566 *Qty: 16 EXHAUST VALVE GUIDE
0.2 mm. OVERSIZED
Call

* Quantity shown indicates the number of pieces used in the diagram.
