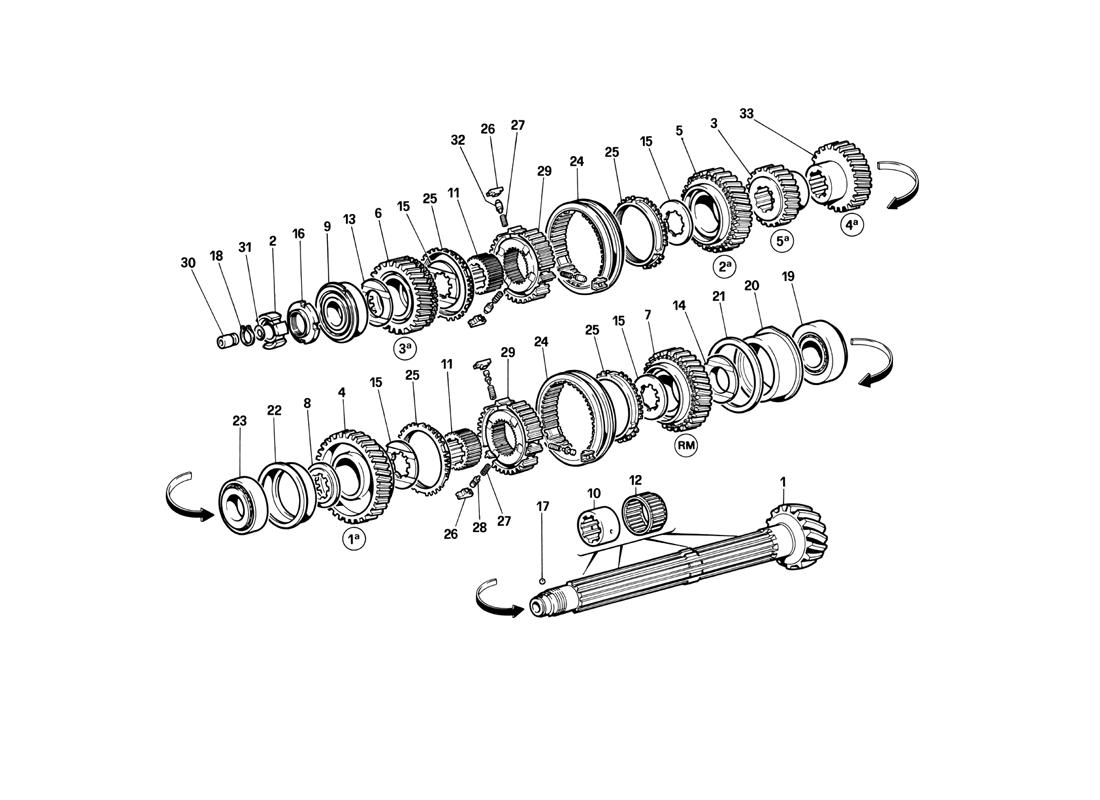

LAY SHAFT GEARS

Go to Split View

LAY SHAFT GEARS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 110013 *Qty: 1 Driven shaft
With crown gear and pinion no. 110016
Unavailable
Location: 2 Prev | Next Part: 116352 *Qty: 1 Transmitting disc for pulse generator $32.01
Location: 3 Prev | Next Part: 136338 *Qty: 1 5th speed gear
Starting from gearbox no. 2579 to gearbox no. 3657
$1,133.74
Location: 3 Prev | Next Part: 123125 *Qty: 1 5th speed gear
Until gearbox no. 2578
$1,124.53
Location: 3 Prev | Next Part: 140198 *Qty: 1 5th speed gear
Starting from gearbox no. 3658
$1,969.49
Location: 4 Prev | Next Part: 140207 *Qty: 1 1st speed gear
Starting from gearbox no. 3658
Unavailable
Location: 4 Prev | Next Part: 132143 *Qty: 1 1st speed gear
Until gearbox no. 2578
$3,565.92
Location: 4 Prev | Next Part: 136341 *Qty: 1 1st speed gear
Starting from gearbox no. 2579 to gearbox no. 3657
$1,890.54
Location: 5 Prev | Next Part: 140208 *Qty: 1 2nd speed gear
Starting from gearbox no. 3658
Superseded
Location: 5 Prev | Next Part: 132144 *Qty: 1 2nd speed gear
Until gearbox no. 2578
$1,655.53
Location: 5 Prev | Next Part: 136342 *Qty: 1 2nd speed gear
Starting from gearbox no. 2579 to gearbox no. 3657
Unavailable
Location: 6 Prev | Next Part: 112145 *Qty: 1 3rd speed gear
Until gearbox no. 2578
Unavailable
Location: 6 Prev | Next Part: 136343 *Qty: 1 3rd speed gear
Starting from gearbox no. 2579
$1,899.93
Location: 7 Prev | Next Part: 136346 *Qty: 1 Reverse gear
Starting from gearbox no. 2579
$1,351.19
Location: 7 Prev | Next Part: 132155 *Qty: 1 Reverse gear
Until gearbox no. 2578
$1,114.43
Location: 8 Prev | Next Part: 130986 *Qty: 1 Spacer between 1st speed and earing, thickness 6,60 mm. $116.70
Location: 8 Prev | Next Part: 110178 *Qty: 1 Spacer between 1st speed and earing, thickness 6,10 mm. $24.50
Location: 8 Prev | Next Part: 110180 *Qty: 1 Spacer between 1st speed and earing, thickness 6,30 mm. $53.97
Location: 8 Prev | Next Part: 130985 *Qty: 1 Spacer between 1st speed and earing, thickness 6,50 mm. $116.70
Location: 8 Prev | Next Part: 130987 *Qty: 1 Spacer between 1st speed and earing, thickness 6,70 mm. $114.66
Location: 8 Prev | Next Part: 110177 *Qty: 1 Spacer between 1st speed and earing, 6,00 mm. thickness $25.23
Location: 8 Prev | Next Part: 110181 *Qty: 1 Spacer between 1st speed and earing, thickness 6,40 mm. $53.97
Location: 8 Prev | Next Part: 110179 *Qty: 1 Spacer between 1st speed and earing, thickness 6,20 mm. $25.42
Location: 9 Prev | Next Part: 103030 *Qty: 1 Front bearing $243.84
Location: 10 Prev | Next Part: 104704 *Qty: 4 Roller race for 1st, 2nd, 3rd, speed and reverse gears $647.53
Location: 11 Prev | Next Part: 104711 *Qty: 2 Reduction bushing for synch, of 1st speed, Rev. and 2nd-3rd speeds Superseded
Location: 12 Prev | Next Part: 101604 *Qty: 4 Roller cage for 1st 2nd 3rd speeds and reverse gears $45.57
Location: 13 Prev | Next Part: 110176 *Qty: 1 Spacer $359.58
Location: 14 Prev | Next Part: 110174 *Qty: 4 Spacer $84.67
Location: 15 Prev | Next Part: 110175 *Qty: 1 Spacer Unavailable
Location: 16 Prev | Next Part: 100729 *Qty: 1 Ring nut Superseded
Location: 17 Prev | Next Part: 101611 *Qty: 1 Ball Unavailable
Location: 18 Prev | Next Part: 11067376 *Qty: 1 Stop ring $1.93
Location: 19 Prev | Next Part: 101636 *Qty: 1 Bearing, axle side $185.61
Location: 20 Prev | Next Part: 109609 *Qty: 1 Bushing for bearing Superseded
Location: 21 Prev | Next Part: 130982 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2,80 mm. $23.21
Location: 21 Prev | Next Part: 104725 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2.00 mm. $53.37
Location: 21 Prev | Next Part: 104728 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2,30 mm. $30.27
Location: 21 Prev | Next Part: 130979 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2,50 mm. $21.93
Location: 21 Prev | Next Part: 130981 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2,70 mm. $18.77
Location: 21 Prev | Next Part: 130983 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2,90 mm. $21.57
Location: 21 Prev | Next Part: 130984 *Qty: 1 Crown gear and pinion adjusting shim, thickness 3,00 mm. $17.29
Location: 21 Prev | Next Part: 104727 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2,20 mm. $16.77
Location: 21 Prev | Next Part: 104726 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2,10 mm. $17.29
Location: 21 Prev | Next Part: 104729 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2,40 mm. $32.16
Location: 21 Prev | Next Part: 130980 *Qty: 1 Crown gear and pinion adjusting shim, thickness 2,60 mm. $57.80
Location: 22 Prev | Next Part: 104730 *Qty: 1 Bushing for center bearing Superseded
Location: 23 Prev | Next Part: 103031 *Qty: 1 Center bearing $251.04
Location: 24 Prev | Next Part: 131804 *Qty: 2 Sleeve for synchronizer Unavailable
Location: 25 Prev | Next Part: 106040 *Qty: 4 Synchromesh ring $687.54
Location: 26 Prev | Next Part: 106042 *Qty: 6 Insert for synchronizer $98.87
Location: 27 Prev | Next Part: 106043 *Qty: 6 Spring for pins $13.13
Location: 28 Prev | Next Part: 106044 *Qty: 3 Pin for insert $87.62
Location: 29 Prev | Next Part: 106039 *Qty: 2 Synchronizer body $609.77
Location: 30 Prev | Next Part: 104745 *Qty: 1 Oil filler $54.34
Location: 31 Prev | Next Part: 105329 *Qty: 1 Seal ring $2.04
Location: 32 Prev | Next Part: 113412 *Qty: 3 Pawl for synchronizer $28.00
Location: 33 Prev | Next Part: 123124 *Qty: 1 4th speed gear
Until gearbox no. 2578
$386.51
Location: 33 Prev | Next Part: 136337 *Qty: 1 4th speed gear
Starting from gearbox no. 2579
$1,200.90

* Quantity shown indicates the number of pieces used in the diagram.
