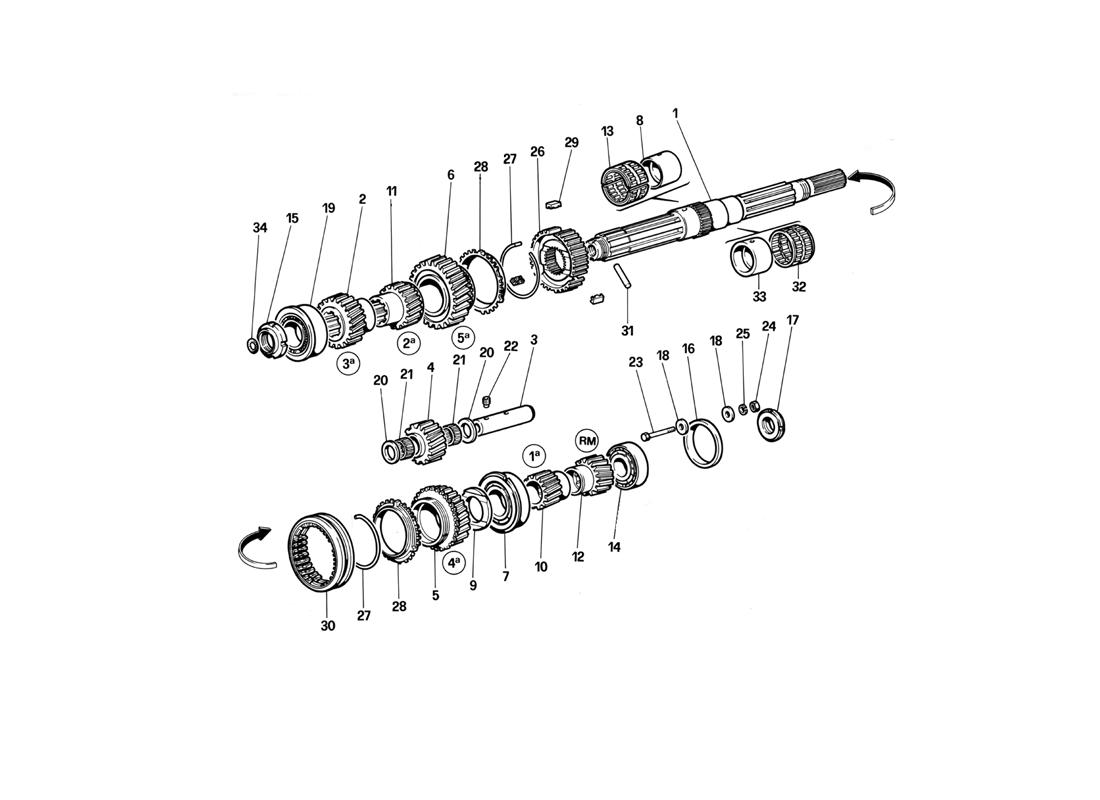

MAIN SHAFT GEARS

Go to Split View

MAIN SHAFT GEARS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109716 *Qty: 1 Main shaft Unavailable
Location: 2 Prev | Next Part: 123120 *Qty: 1 3rd speed gear
Until gearbox no. 2578
$680.11
Location: 2 Prev | Next Part: 136330 *Qty: 1 3rd speed gear
Starting from gearbox no. 2579
$1,022.00
Location: 3 Prev | Next Part: 109768 *Qty: 1 Pin for reverse idle gear Unavailable
Location: 4 Prev | Next Part: 119804 *Qty: 1 Reverse idle gear
Until gearbox no. 2578
$409.32
Location: 4 Prev | Next Part: 136340 *Qty: 1 Reverse idle gear
Starting from gearbox no. 2579
$1,373.36
Location: 5 Prev | Next Part: 132146 *Qty: 1 4th speed gear
Until gear box no. 2578
$3,485.53
Location: 5 Prev | Next Part: 136344 *Qty: 1 4th speed gear
Starting from gearbox no. 2579
$808.93
Location: 6 Prev | Next Part: 140209 *Qty: 1 5th speed gear
Starting from gearbox no. 3658
$3,416.30
Location: 6 Prev | Next Part: 132154 *Qty: 1 5th speed gear
Until gearbox no. 2578
$1,313.13
Location: 6 Prev | Next Part: 136345 *Qty: 1 5th speed gear
Starting from gearbox no. 2579 to gearbox no. 3657 5th speed gear
$1,609.10
Location: 7 Prev | Next Part: 103030 *Qty: 1 Center roller bearing $239.07
Location: 8 Prev | Next Part: 107499 *Qty: 1 5th speed straight race $228.02
Location: 9 Prev | Next Part: 110173 *Qty: 1 Spacer $217.36
Location: 10 Prev | Next Part: 140193 *Qty: 1 1st speed gear
Starting frdm gearbox no. 3658
$1,481.83
Location: 10 Prev | Next Part: 136328 *Qty: 1 1st speed gear
Starting from gearbox no. 2579 to gearbox no. 3657
$868.62
Location: 10 Prev | Next Part: 119792 *Qty: 1 1st speed gear
Until gearbox no. 2578
Unavailable
Location: 11 Prev | Next Part: 140195 *Qty: 1 2nd speed gear
Starting from gearbox no. 3658
$1,875.70
Location: 11 Prev | Next Part: 119793 *Qty: 1 2nd speed gear
Until gearbox no. 2578
$2,780.87
Location: 11 Prev | Next Part: 136329 *Qty: 1 2nd speed gear
Starting from gearbox no. 2579 to gearbox no. 3657
$1,834.43
Location: 12 Prev | Next Part: 119797 *Qty: 1 Reverse gear
Until, gearbox no. 2578
$856.28
Location: 12 Prev | Next Part: 136333 *Qty: 1 Reverse gear
Starting from gearbox no. 2579
$418.92
Location: 13 Prev | Next Part: 109002 *Qty: 1 Double row roller cage for 5th gear $31.46
Location: 14 Prev | Next Part: 126234 *Qty: 1 Bearing axle side
To exhaustion use no. 103990
$596.57
Location: 15 Prev | Next Part: 104713 *Qty: 1 Front ring nut Superseded
Location: 16 Prev | Next Part: 105765 *Qty: 1 Bearing stop ring $44.71
Location: 17 Prev | Next Part: 105764 *Qty: 1 Rear ring nut Superseded
Location: 18 Prev | Next Part: 104731 *Qty: 2 Bearing lock wastier $2.98
Location: 19 Prev | Next Part: 103042 *Qty: 1 Front bearing $250.11
Location: 20 Prev | Next Part: 100703 *Qty: 2 Shim $24.89
Location: 21 Prev | Next Part: 104734 *Qty: 2 Roller cage for reverse gear $10.90
Location: 22 Prev | Next Part: 103035 *Qty: 1 Grub screw $0.97
Location: 23 Prev | Next Part: 10903221 *Qty: 1 Bolt $0.90
Location: 24 Prev | Next Part: 15896221 *Qty: 1 Nut Superseded
Location: 25 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 26 Prev | Next Part: 106046 *Qty: 1 Syncronize body $859.59
Location: 27 Prev | Next Part: 108363 *Qty: 2 Spring ring for insert $83.63
Location: 28 Prev | Next Part: 131799 *Qty: 1 Synchromesh ring Superseded
Location: 29 Prev | Next Part: 126201 *Qty: 3 Synchronizer insert $116.42
Location: 30 Prev | Next Part: 131801 *Qty: 1 Synchronizer sleeve $201.42
Location: 31 Prev | Next Part: 109725 *Qty: 1 Para&ll pin $24.40
Location: 32 Prev | Next Part: 107525 *Qty: 1 4th speed roller cage $15.28
Location: 33 Prev | Next Part: 107524 *Qty: 1 4th speed roller race $245.75
Location: 34 Prev | Next Part: 109724 *Qty: 1 Seal ring $1.39

* Quantity shown indicates the number of pieces used in the diagram.
