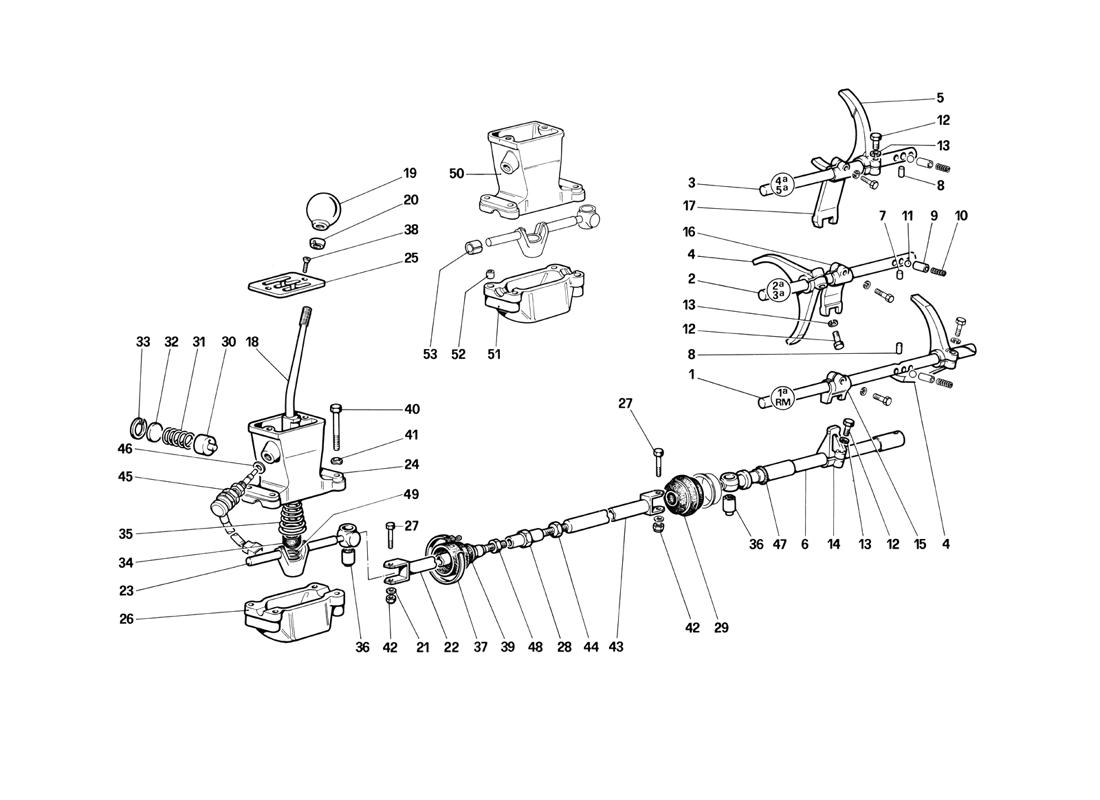

GEARBOX CONTROLS

Go to Split View

GEARBOX CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 107451 *Qty: 1 1st speed and Reverse fork control rod $90.12
Location: 2 Prev | Next Part: 107452 *Qty: 1 2nd and 3rd speed fork control rod $86.48
Location: 3 Prev | Next Part: 107453 *Qty: 1 4th and 5th speed fork control rod
Until gearbox no. 1466
$138.83
Location: 3 Prev | Next Part: 132333 *Qty: 1 4th and 5th speed fork control rod
Starting from gearbox no. 1467
$108.24
Location: 4 Prev | Next Part: 107374 *Qty: 2 Control fork for engagement of 1st, 2nd, 3rd speed and reverse $123.90
Location: 5 Prev | Next Part: 107375 *Qty: 1 Control fork for engagement of 4th and 5th speeds $1,837.99
Location: 6 Prev | Next Part: 111870 *Qty: 1 Gearbox control rod $96.96
Location: 7 Prev | Next Part: 107454 *Qty: 1 Central rod stop roller Unavailable
Location: 8 Prev | Next Part: 103011 *Qty: 2 Side rods stop roller Unavailable
Location: 9 Prev | Next Part: 115376 *Qty: 3 Bushing for spring $47.90
Location: 10 Prev | Next Part: 100750 *Qty: 3 Spring $1.60
Location: 11 Prev | Next Part: 101612 *Qty: 3 Rods stop ball $1.23
Location: 12 Prev | Next Part: 16043531 *Qty: 7 Bolt $0.90
Location: 13 Prev | Next Part: 10516671 *Qty: 7 Washer Superseded
Location: 14 Prev | Next Part: 106217 *Qty: 1 Small forks control lever $192.82
Location: 15 Prev | Next Part: 106221 *Qty: 1 Small fork controlling 1st speed and reverse rod $181.45
Location: 16 Prev | Next Part: 106222 *Qty: 1 Small fork for controlling 2nd and 3rd speeds $42.27
Location: 17 Prev | Next Part: 106223 *Qty: 1 Small fork for controlling 4th and 5th speeds $198.09
Location: 18 Prev | Next Part: 124722 *Qty: 1 Gearshift lever
For RHD use no 126120
$473.27
Location: 19 Prev | Next Part: 103301 *Qty: 1 Gearshift lever knob $95.00
Location: 20 Prev | Next Part: 108010 *Qty: 1 Lock nut $28.56
Location: 21 Prev | Next Part: 10519601 *Qty: 2 Washer Superseded
Location: 22 Prev | Next Part: 123215 *Qty: 1 Front gearbox control rod $40.51
Location: 23 Prev | Next Part: 128161 *Qty: 1 Pin with joint seat $71.88
Location: 24 Prev | Next Part: 105438 *Qty: 1 Gearbox casing
With assembly no. 108848
Unavailable
Location: 24 Prev | Next Part: 108848 *Qty: 1 Gearbox casing, complete Superseded
Location: 25 Prev | Next Part: 127444 *Qty: 1 Speed selector Superseded
Location: 26 Prev | Next Part: 104315 *Qty: 1 Lower cover
With assembly no. 108848
Unavailable
Location: 27 Prev | Next Part: 107830 *Qty: 2 Screw $5.12
Location: 28 Prev | Next Part: 103321 *Qty: 1 Adjusting tie rod $6.65
Location: 29 Prev | Next Part: 106168 *Qty: 1 Bellows for rod $18.17
Location: 30 Prev | Next Part: 103317 *Qty: 1 Lever return pin $16.69
Location: 31 Prev | Next Part: 103318 *Qty: 1 Lever return spring $4.69
Location: 32 Prev | Next Part: 103319 *Qty: 1 Spring retaining disc Unavailable
Location: 33 Prev | Next Part: 103326 *Qty: 1 Seeger ring $0.90
Location: 34 Prev | Next Part: 127446 *Qty: 1 Ball joint seat $26.29
Location: 35 Prev | Next Part: 115340 *Qty: 1 Center spring $3.97
Location: 36 Prev | Next Part: 106814 *Qty: 2 Silentblock
After exhaustion use no. 139555
Superseded
Location: 37 Prev | Next Part: 10291490 *Qty: 1 Clamp Unavailable
Location: 38 Prev | Next Part: 101619 *Qty: 2 Speed selector securing screw $12.11
Location: 39 Prev | Next Part: 106687 *Qty: 1 Bellows for gearshift lever $19.65
Location: 40 Prev | Next Part: 16136621 *Qty: 4 Screw $1.93
Location: 41 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 42 Prev | Next Part: 101309 *Qty: 2 Nut Unavailable
Location: 43 Prev | Next Part: 123217 *Qty: 1 Rear gearbox control rod Unavailable
Location: 44 Prev | Next Part: 10791921 *Qty: 1 Lock nut (L.H. thread) Superseded
Location: 45 Prev | Next Part: 115980 *Qty: 1 Reverse gear light switch $58.62
Location: 46 Prev | Next Part: 12601571 *Qty: 1 Washer $0.90
Location: 47 Prev | Next Part: 105140 *Qty: 1 Sealing ring $3.88
Location: 48 Prev | Next Part: 10791221 *Qty: 1 Locknut (R.H. thread) $4.03
Location: 49 Prev | Next Part: 127447 *Qty: 1 Retainer ring Unavailable
Location: 50 Prev | Next Part: 133038 *Qty: 1 Gearbox casing
With unit no. 135986
Unavailable
Location: 50 Prev | Next Part: 135986 *Qty: 1 Gearbox casing, complete
After exhaustion no. 108848
$1,141.99
Location: 51 Prev | Next Part: 133039 *Qty: 1 Lower cover
With unit no. 135986
Unavailable
Location: 52 Prev | Next Part: 133037 *Qty: 2 Bush
For gearbox casing no. 135986
$65.05
Location: 53 Prev | Next Part: 100041 *Qty: 2 Dowel
With unit no. 135986
$8.15

* Quantity shown indicates the number of pieces used in the diagram.
