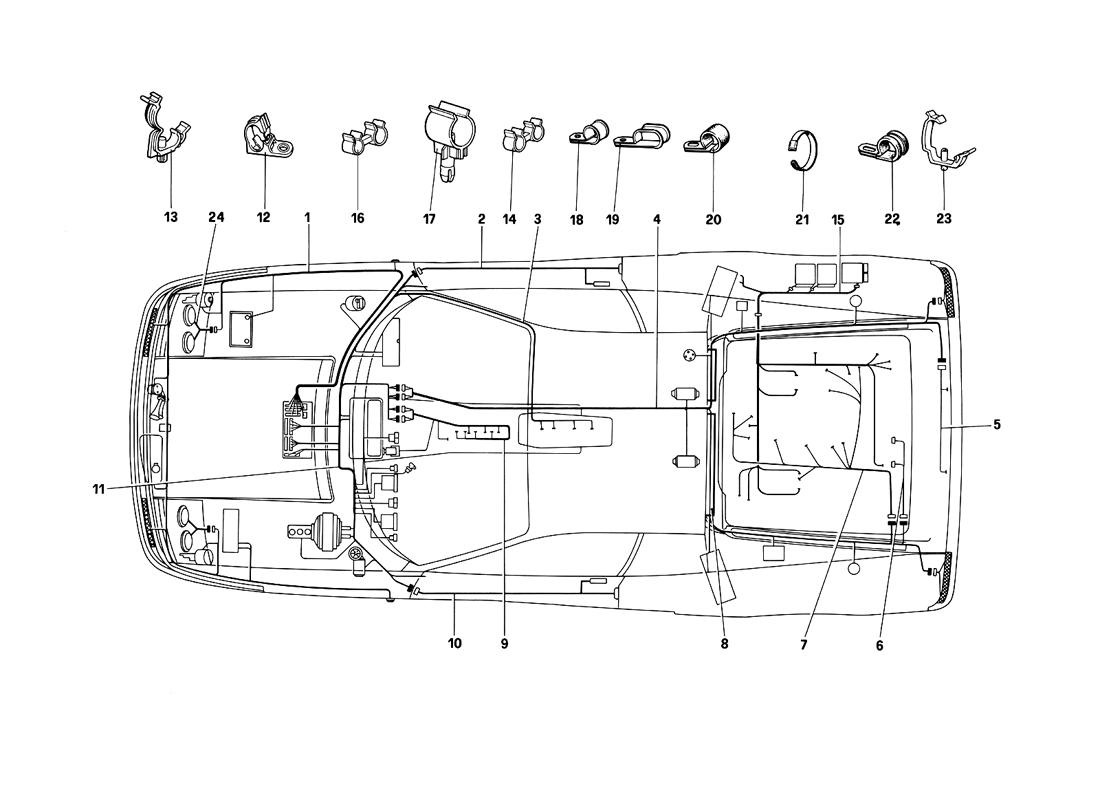

ELECTRIC SYSTEM

Back to Testarossa (1990) components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	131527	1	Front cables US - Until car No 84951	$1,947.36
1	131525	1	Front cables For RHDE - For RHD until car No 84951	$99.67
1	144979	1	Front cables US - From car No 84952	$835.43
1	142874	1	Front cables From car No 82983 and for CAT	$825.89
1	144986	1	Front cables For RHD - From car no 84952	$1,787.60
1	131526	1	Front cables For LHD - Not for US and CAT - Until car No 82982	$698.04
2	131481	1	Cables for door passenger side For LHD	$406.97
2	131912	1	Cables for door passenger For RHD	$144.68
3	123672	1	Fioof cables For US	$68.03
3	123660	1	Hoot cables Not tor US	$69.06
4	142851	1	Cables for rear side and engine - For CAT - For CH from car no 84952	$1,356.59
4	144982	1	Cables for rear side and engine - For SA - From car No 84952	$3,854.46
4	136222	1	Cables for rear side and engine - For US - Until car no 84951		Unavailable
4	144987	1	Cables for rear side and engine - For RHD - E - From car No 84952	$1,690.44
4	132320	1	Cables for rear side and engine Until car no 82982 - Not for CAT - US - CH - SA - J	$1,466.72
4	144983	1	Cables for rear side and engine - For CDN - J - From car No 84952	$1,606.03
4	132532	1	Cables for rear side and engine - For SA - Until car No 84951	$1,177.20
4	144980	1	Cables for rear side and engine - For US - From car No 84952	$1,552.52
4	132509	1	Cables for rear side and engine - For CDN - J - Until car No 84951	$1,212.97
4	133551	1	Cables for rear side and engine - For CH - Until car no 84951	$998.74
5	123663	1	Number plate lights cables	$146.20
6	131168	1	Cables for sensor		Unavailable
7	131165	1	Engine cables - Not for CAT - For CH - SA - US - E - RHD until car No 84951	$236.70
7	142875	1	Engine cables - For CAT - For CH - SA - US - RHD from car No 84952	$903.37
8	61527700	1	LH electrical system retaining screen	$21.92
8	61527600	1	FH electrical system retaining screen	$21.92
9	131479	1	Console cables	$452.51
10	131480	1	Cables tor door driver side () For LHD	$445.32
10	131913	1	Cables for door drive side () For RHD	$151.93
11	133622	1	Dashboard cables For CH - Until car No 74732	$1,833.37
11	132508	1	Dashboard cables - For SA - CDN - J - Until car No 84951	$725.44
11	144982	1	Dashboard cables SA - From car No 84952	$3,854.46
11	142850	1	Dashboard cables CAT - LHD - For CH - BE - E from car No 84952	$528.23
11	134483	1	Dashboard cables For RHD - Until car no……..	$2,323.40
11	144981	1	Dashboard cables For US - From car No 84952	$1,058.52
11	144985	1	Dashboard cables For CDN - J - From car No 84951	$1,290.53
11	144988	1	Dashboard cables For RHD - From car No 84951	$1,430.07
11	134482	1	Dashboard cables - For B1 - E - Until car No 82982	$779.78
11	136223	1	Dashboard cables - For US - Until car No 84951	$840.74
12	129544	11	Clip	$2.23
13	61681600	1	Retainer spring		Unavailable
13	61527800	1	Retainer spring		Superseded
14	131180	1	Retainer spring	$2.03
15	131170	1	Injection cables Not for US - CH - CAT - J	$1,006.74
15	131482	1	Injection cables For US - CH - J	$1,165.57
15	132393	2	Injection cables For CAT and CH	$3,596.31
16	131179	3	Retainer spring	$2.03
17	131181	1	Retainer spring	$4.53
18	10418401	1	Clamp ? 12 mm	$5.38
18	10418601	1	Clamp ? 14 mm	$1.18
18	10418401	1	Clamp ? 12 mm	$5.38
18	10420301	3	Clamp ? 4 mm		Unavailable
18	10418301	2	Clamp ? 8 mm		Unavailable
18	10420301	3	Clamp ? 4 mm		Unavailable
19	10116401	3	Clamp ? 14 mm	$5.28
19	10116401	3	Clamp ? 14 mm	$5.28
20	10450190	1	Clamp ? 10 mm	$0.90
20	10450490	1	Clamp ? 16 mm		Unavailable
20	10450790	1	Clamp ? 22 mm		Unavailable
20	10450490	1	Clamp ? 16 mm		Unavailable
21	110381	2	Strip		Unavailable
22	10450390	2	Bracket for oxigen sensor cables	$2.72
23	61681500	2	Clip		Unavailable
24	119865	2	Cables for headlamps	$68.61

* Quantity shown indicates the number of pieces used in the diagram.
