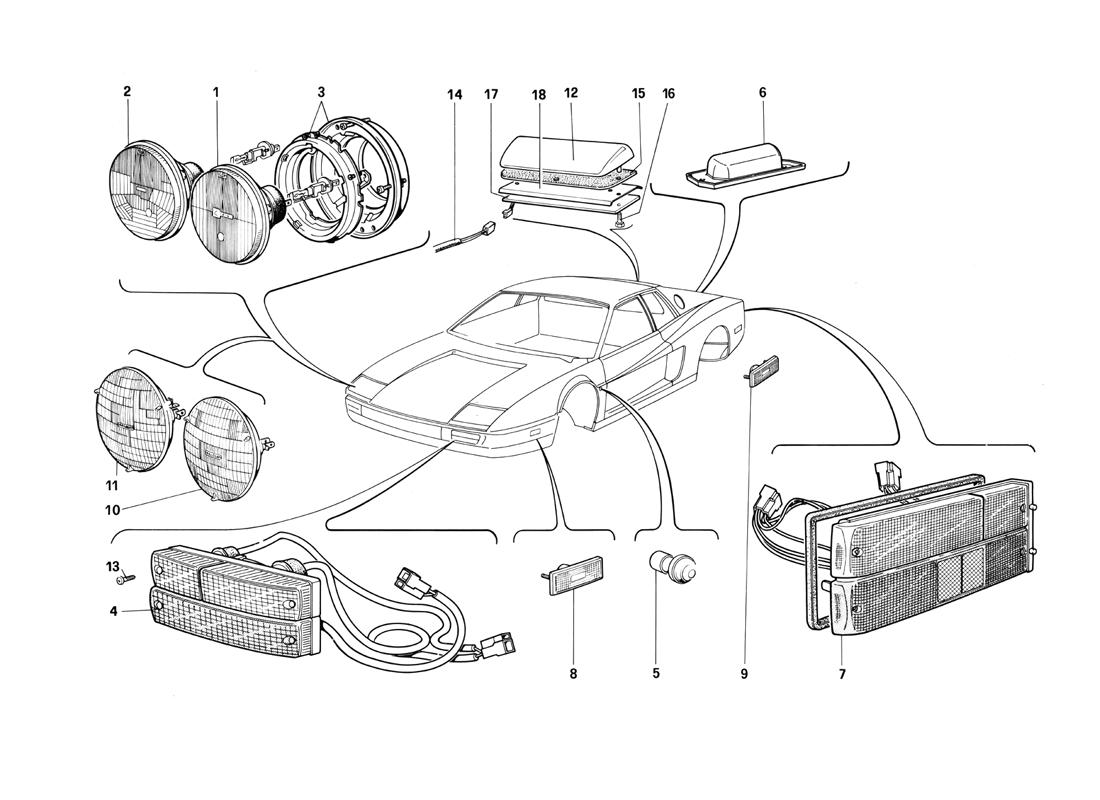

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60907200 *Qty: 2 High beam lamp
Not for F
$196.74
Location: 1 Prev | Next Part: 61005400 *Qty: 2 High beam lamp
For F
$121.16
Location: 2 Prev | Next Part: 61005600 *Qty: 2 Low beam lamp
For F
Unavailable
Location: 2 Prev | Next Part: 60907400 *Qty: 2 Low beam lamp
Not for RHD - F - J
Unavailable
Location: 2 Prev | Next Part: 60944800 *Qty: 2 Low beam lamp
For RHD and J
$146.32
Location: 3 Prev | Next Part: 61646500 *Qty: 1 Ring frame for left high beam lamp $60.60
Location: 3 Prev | Next Part: 61646700 *Qty: 1 Ring frame for left low beam lamp $70.31
Location: 3 Prev | Next Part: 61646600 *Qty: 1 Ring frame for right low beam lamp $64.53
Location: 3 Prev | Next Part: 61646400 *Qty: 1 Ring frame for right high beam lamp Unavailable
Location: 4 Prev | Next Part: 61536000 *Qty: 1 Lens for front left light
For LHD
Unavailable
Location: 4 Prev | Next Part: 61652300 *Qty: 1 Front riont side - direction flashing light
For US
Unavailable
Location: 4 Prev | Next Part: 61536100 *Qty: 1 Lens for front right light
For RHD
Unavailable
Location: 4 Prev | Next Part: 61536300 *Qty: 1 Lens for front right light
For US
Unavailable
Location: 4 Prev | Next Part: 61725800 *Qty: 1 Front right side - direction - flashing light for LHD
Not for US - D - F
Unavailable
Location: 4 Prev | Next Part: 61815900 *Qty: 1 Front right side - direction - flashing light
For F
$1,017.35
Location: 4 Prev | Next Part: 61535900 *Qty: 1 Lens for front right light
For LHD
Unavailable
Location: 4 Prev | Next Part: 61643200 *Qty: 1 Front right side - direction - flashing
For RHD and D
Unavailable
Location: 4 Prev | Next Part: 61643300 *Qty: 1 Front left side - direction - flashing
For RHD and D
Unavailable
Location: 4 Prev | Next Part: 61652400 *Qty: 1 Front left side - direction - flashing light
For US
Unavailable
Location: 4 Prev | Next Part: 61725900 *Qty: 1 Front left side - direction - flashing light for LHD
Not for US - D - F
Unavailable
Location: 4 Prev | Next Part: 61536200 *Qty: 1 Lens for front left light
For RHD
$113.92
Location: 4 Prev | Next Part: 61536400 *Qty: 1 Lens for front left light
For US
Unavailable
Location: 4 Prev | Next Part: 61816000 *Qty: 1 Front left side - direction flashing light
For F
Unavailable
Location: 5 Prev | Next Part: 61646800 *Qty: 2 Side direction light
Not for US
Superseded
Location: 6 Prev | Next Part: 61558800 *Qty: 2 Plate light Superseded
Location: 7 Prev | Next Part: 61536600 *Qty: 1 Lens for rear left light $100.98
Location: 7 Prev | Next Part: 61536500 *Qty: 1 Lens for rear right light $100.98
Location: 7 Prev | Next Part: 61652800 *Qty: 1 Rear left light
For US and J
Unavailable
Location: 7 Prev | Next Part: 61536800 *Qty: 1 Lens for rear left light Unavailable
Location: 7 Prev | Next Part: 61643400 *Qty: 1 Rear right light
Not for US and J
$1,221.72
Location: 7 Prev | Next Part: 61536700 *Qty: 1 Lens for rear right light Unavailable
Location: 7 Prev | Next Part: 61643500 *Qty: 1 Rear left light
Not for US and J
$1,413.50
Location: 7 Prev | Next Part: 61652700 *Qty: 1 Rear right light
For US and J
Unavailable
Location: 8 Prev | Next Part: 61652500 *Qty: 2 Front side marker
For US
$49.00
Location: 9 Prev | Next Part: 61652600 *Qty: 2 Rear side marker
For US
$103.62
Location: 10 Prev | Next Part: 61610500 *Qty: 2 Headlamp main beams
For US
$43.31
Location: 11 Prev | Next Part: 61610600 *Qty: 2 Headlamp dipped beams
For US
$42.45
Location: 12 Prev | Next Part: 61892900 *Qty: 1 Additional stop lights
For US
$459.59
Location: 13 Prev | Next Part: 131373 *Qty: 12 Screw $16.37
Location: 14 Prev | Next Part: 129319 *Qty: 1 Cable $84.70
Location: 15 Prev | Next Part: 61895400 *Qty: 1 Gasket $22.67
Location: 16 Prev | Next Part: 61565100 *Qty: 2 Screw $2.83
Location: 17 Prev | Next Part: 61542000 *Qty: 1 Insulation $91.00
Location: 18 Prev | Next Part: 61567400 *Qty: 1 Support $39.62

* Quantity shown indicates the number of pieces used in the diagram.
