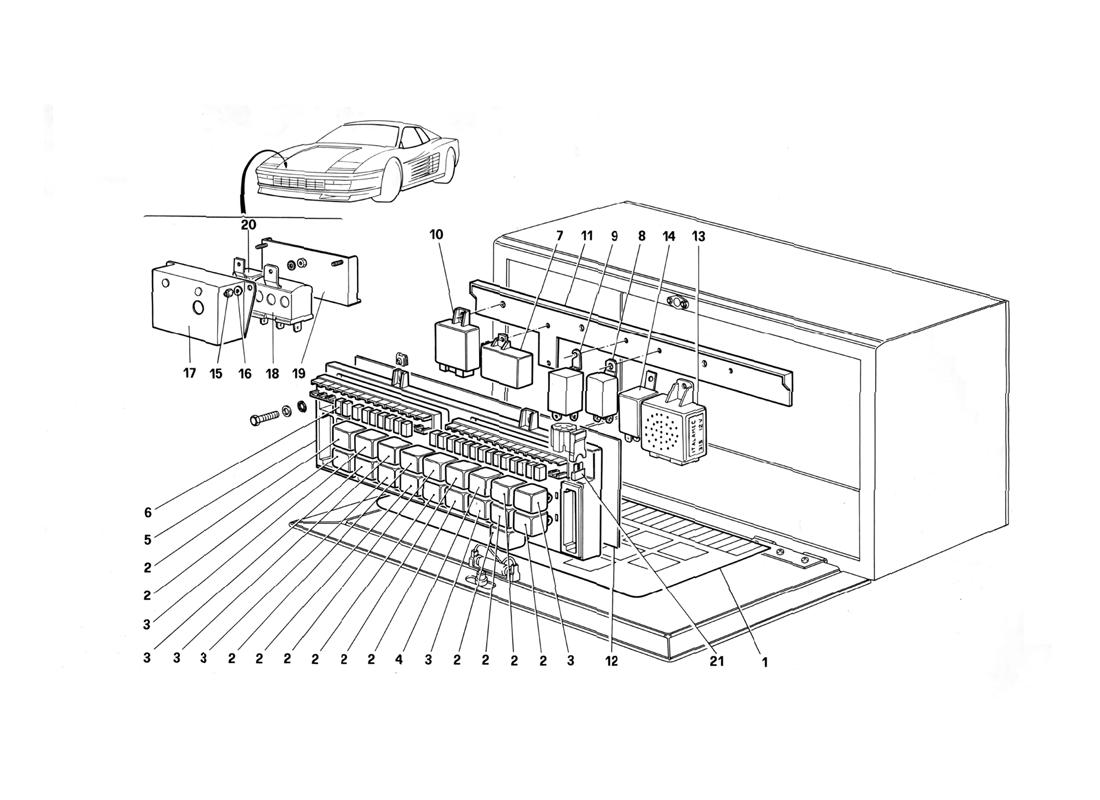

VALVES AND RELAYS

Go to Split View

VALVES AND RELAYS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 129575 *Qty: 1 Indication sheet
For control unit No. 129108
$18.24
Location: 1 Prev | Next Part: 133764 *Qty: 1 Indication sheet
For control unit No. 132204
$59.27
Location: 2 Prev | Next Part: 40130007 *Qty: 12 Relay $48.64
Location: 3 Prev | Next Part: 40130106 *Qty: 6 Relay $23.47
Location: 4 Prev | Next Part: 40283905 *Qty: 1 Relay $71.09
Location: 5 Prev | Next Part: 132204 *Qty: 1 Control unit, assy.
Only for GB - for car with Dim-Dip device
Unavailable
Location: 5 Prev | Next Part: 129108 *Qty: 1 Control unit, assy. Unavailable
Location: 6 Prev | Next Part: 125242 *Qty: 11 15AFuse Unavailable
Location: 6 Prev | Next Part: 125243 *Qty: 6 20A Fuse Unavailable
Location: 6 Prev | Next Part: 115549 *Qty: 1 Bridge
For control unit No. 132204
Unavailable
Location: 6 Prev | Next Part: 125241 *Qty: 3 IOA Fuse Unavailable
Location: 6 Prev | Next Part: 125240 *Qty: 4 7,5A Fuse Unavailable
Location: 7 Prev | Next Part: 61079400 *Qty: 1 A.C. control unit Unavailable
Location: 8 Prev | Next Part: 124717 *Qty: 1 Tachometric relay Unavailable
Location: 9 Prev | Next Part: 61651800 *Qty: 1 Intermittence for direction and hazard
For US version
$107.15
Location: 9 Prev | Next Part: 61048000 *Qty: 1 Intermittence for direction and hazard
For J - CH - Not for US
$143.41
Location: 10 Prev | Next Part: 119660 *Qty: 1 Wiper intermittence $69.45
Location: 11 Prev | Next Part: 124092 *Qty: 1 Control unit fixing plate $9.20
Location: 12 Prev | Next Part: 116055 *Qty: 1 Rear cover Unavailable
Location: 13 Prev | Next Part: 136133 *Qty: 1 Seat belts control unit for US
Until car No 76573
Superseded
Location: 13 Prev | Next Part: 133198 *Qty: 1 Seat belts control unit for US
Until car No 76572
$140.25
Location: 13 Prev | Next Part: 61830700 *Qty: 1 Seal belts control unit
For SA - CDN
Unavailable
Location: 14 Prev | Next Part: 61914500 *Qty: 1 Brake warning light control relay
Not for US - SA - J
$23.42
Location: 14 Prev | Next Part: 62346400 *Qty: 1 Dim-Dip, device, assy.
For GB until car ..........
$97.54
Location: 14 Prev | Next Part: 131486 *Qty: 1 Buzzer for lower oil pressure and exhaust hight temperature
For US - CH
$70.69
Location: 15 Prev | Next Part: 12574111 *Qty: 1 Nut
For GB car with Dim-Dip device
Superseded
Location: 16 Prev | Next Part: 10519301 *Qty: 1 Washer Unavailable
Location: 17 Prev | Next Part: 62342800 *Qty: 1 Protection cover $51.89
Location: 18 Prev | Next Part: 62342006 *Qty: 1 Resistor Unavailable
Location: 19 Prev | Next Part: 132128 *Qty: 1 Support $25.23
Location: 20 Prev | Next Part: 62342100 *Qty: 1 Relay $31.28
Location: 21 Prev | Next Part: 131942 *Qty: 1 3A fuse for battery-alternator cable protection Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
