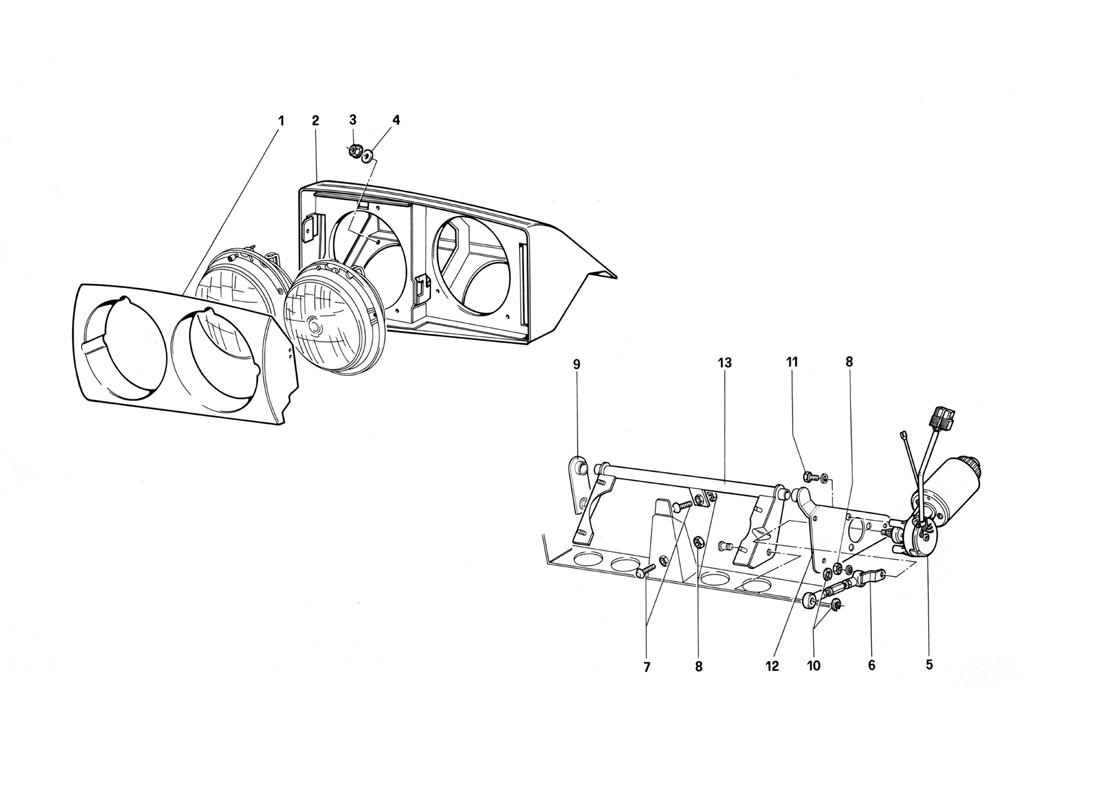

FRONT HEADLIGHT LIFTING DEVICE

Go to Split View

FRONT HEADLIGHT LIFTING DEVICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61527200 *Qty: 1 Right headlamp frame Unavailable
Location: 1 Prev | Next Part: 61527300 *Qty: 1 Left headlamp frame Unavailable
Location: 2 Prev | Next Part: 61527400 *Qty: 1 Housing for right headlamp flap Unavailable
Location: 2 Prev | Next Part: 61527500 *Qty: 1 Housing for left headlamp flap Unavailable
Location: 3 Prev | Next Part: 14084011 *Qty: 8 Nut Unavailable
Location: 4 Prev | Next Part: 10520101 *Qty: 8 Washer Superseded
Location: 5 Prev | Next Part: 60727500 *Qty: 1 Lifting motor for right headlamp Superseded
Location: 5 Prev | Next Part: 60727600 *Qty: 1 Lifting motor for left headlamp Superseded
Location: 6 Prev | Next Part: 61268600 *Qty: 2 Connecting rod Unavailable
Location: 7 Prev | Next Part: 61566800 *Qty: 6 Pin Superseded
Location: 8 Prev | Next Part: 15896211 *Qty: 10 Nut Superseded
Location: 9 Prev | Next Part: 61556100 *Qty: 1 Left bracket $9.04
Location: 9 Prev | Next Part: 61556000 *Qty: 1 Right bracket $26.33
Location: 10 Prev | Next Part: 16160976 *Qty: 6 Spring ring $0.90
Location: 11 Prev | Next Part: 15908306 *Qty: 2 Screw Unavailable
Location: 12 Prev | Next Part: 61531300 *Qty: 1 L.H. support bracket $15.10
Location: 12 Prev | Next Part: 61531200 *Qty: 1 R.H. support bracket $34.94
Location: 13 Prev | Next Part: 61531100 *Qty: 1 Lifting linkage for left lamp Unavailable
Location: 13 Prev | Next Part: 61531000 *Qty: 1 Lifting linkage for right lamp $118.90

* Quantity shown indicates the number of pieces used in the diagram.
